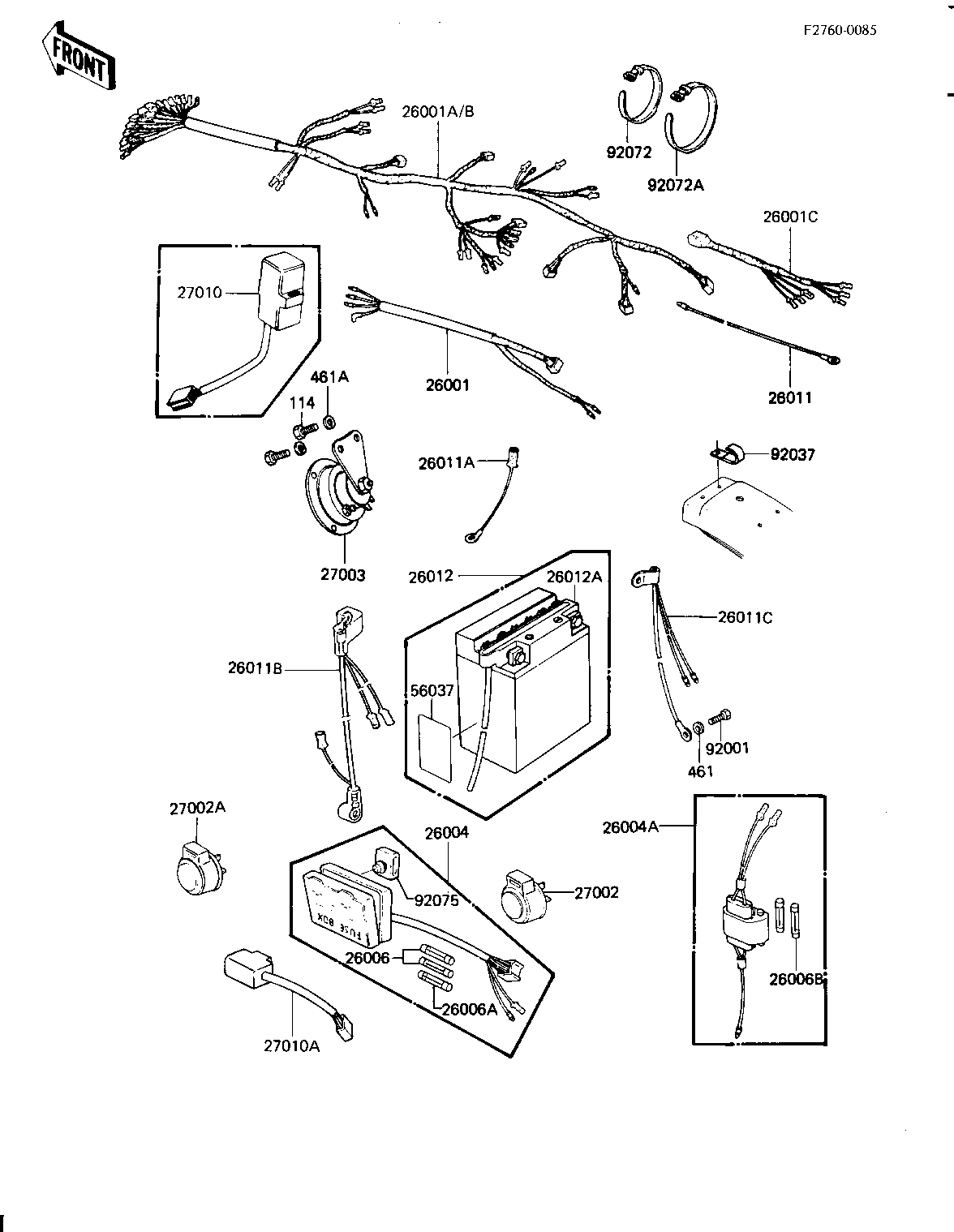

1982 CSR - CHASSIS ELECTRICAL EQUIPMENT ('81-'82 H1
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| WIRING HARNESS,CENTER | 26001 | 26001-1117 | 1 | ||
| HARNESS,MAIN | 26001B | 26001-1301 | 1 | ||
| WIRING HARNESS,REAR | 26001C | 26002-063 | 1 | ||
| FUSE ASSY | 26004 | 26004-1006 | 1 | ||
| FUSE-ASSY,ACCESSORY | 26004A | 26004-1014 | 1 | ||
| FUSE 10A | 26006 | 26006-003 | 3 | ||
| FUSE-20A | 26006A | 26006-005 | 2 | ||
| FUSE,10A,L=30M/M | 26006B | 26006-1002 | 3 | ||
| LEAD WIRE,SIGNAL LAMP | 26011 | 26011-063 | 2 | ||
| WIRE-LEAD,ACCESSORY G | 26011A | 26011-1100 | 1 | ||
| WIRE-LEAD,BATTERY | 26011B | 26011-1101 | 1 | ||
| WIRE-LEAD,BATTERY GRO | 26011C | 26011-1102 | 1 | ||
| FB BAT FB12A-A | 26012 | 26012-1004 | 1 | US | |
| 26012-1210 (Canada) | 26012A | 26012-1005 | 1 | CN | |
| RELAY-TURN SIGNAL | 27002 | 27002-011 | 1 | ||
| RELAY,TURN SIGNAL | 27002A | 27002-016 | 1 | ||
| HORN | 27003 | 27003-076 | 1 | ||
| SWITCH,FUEL CHECK | 27010 | 27010-1015 | 1 | ||
| SWITCH,OUTAGE,INDICTR | 27010A | 28019-001 | 1 | ||
| LABEL-WARNING,BATTERY | 56037 | 56040-1036 | 1 | US | |
| BOLT,HEX HEAD,6MM | 92001 | 92001-137 | 1 | ||
| CLAMP,WIRING HARNESS | 92037 | 92037-1069 | 2 | ||
| BAND,MIDDLE | 92072 | 92072-031 | 1 | ||
| BAND,WIRING HARNESS | 92072A | 92072-056 | 4 | ||
| DAMPER RUBBER,FUSE | 92075 | 92075-279 | 1 | ||
| BOLT-SMALL-UPSET,8X16 | 114 | 115G0816 | 2 | ||
| WASHER SPRING 6MM | 461 | 461F0600 | 1 | ||
| WASHER SPRING 8MM | 461A | 461F0800 | 2 |
