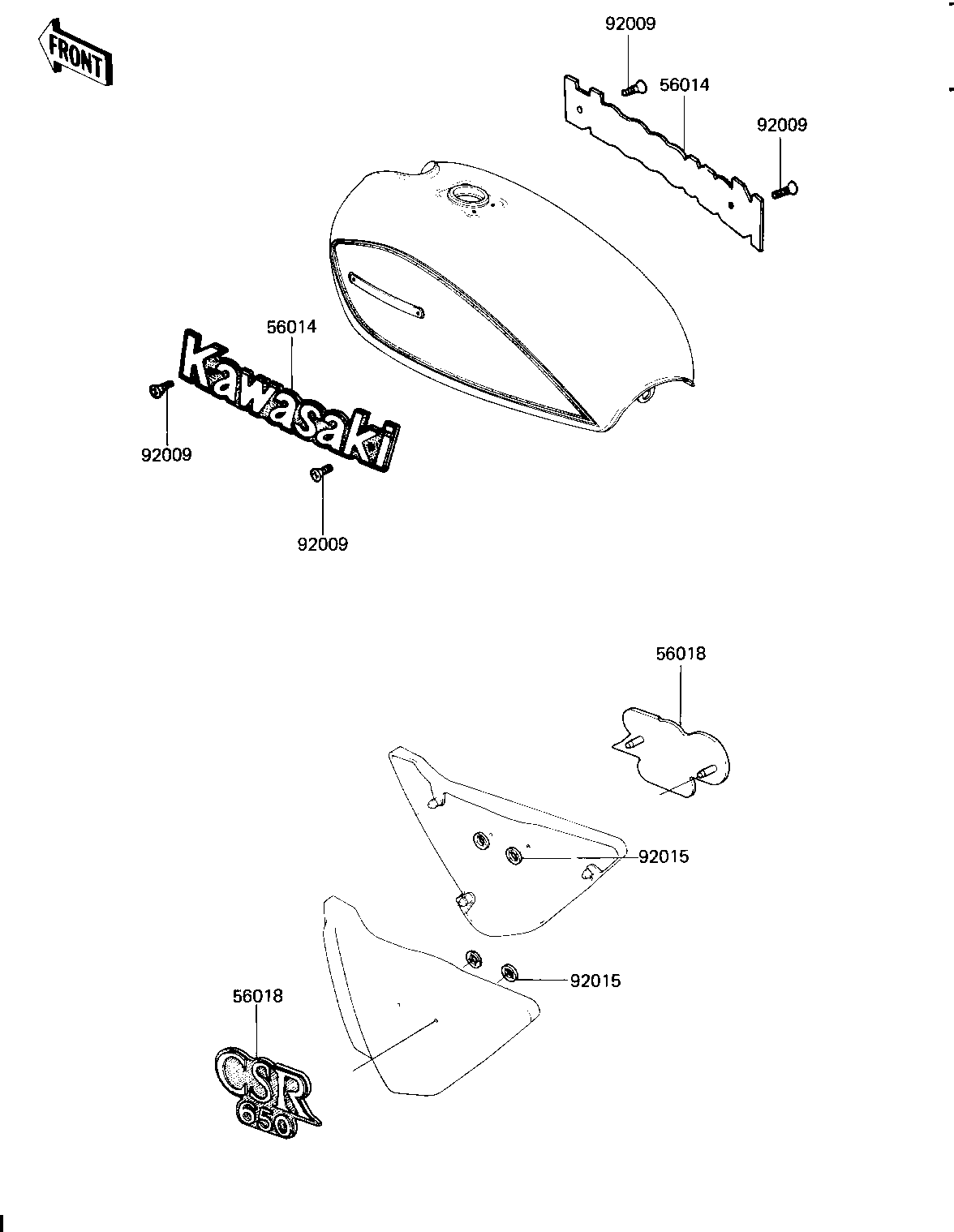

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
EMBLEM,FUEL TANK 56014 56014-1042 2
MARK,SIDE COVER 56018 56018-1213 2
SCREW-CSK-CROS 92009 221C0306 4
NUT,LOCK,3MM 92015 92018-005 4
