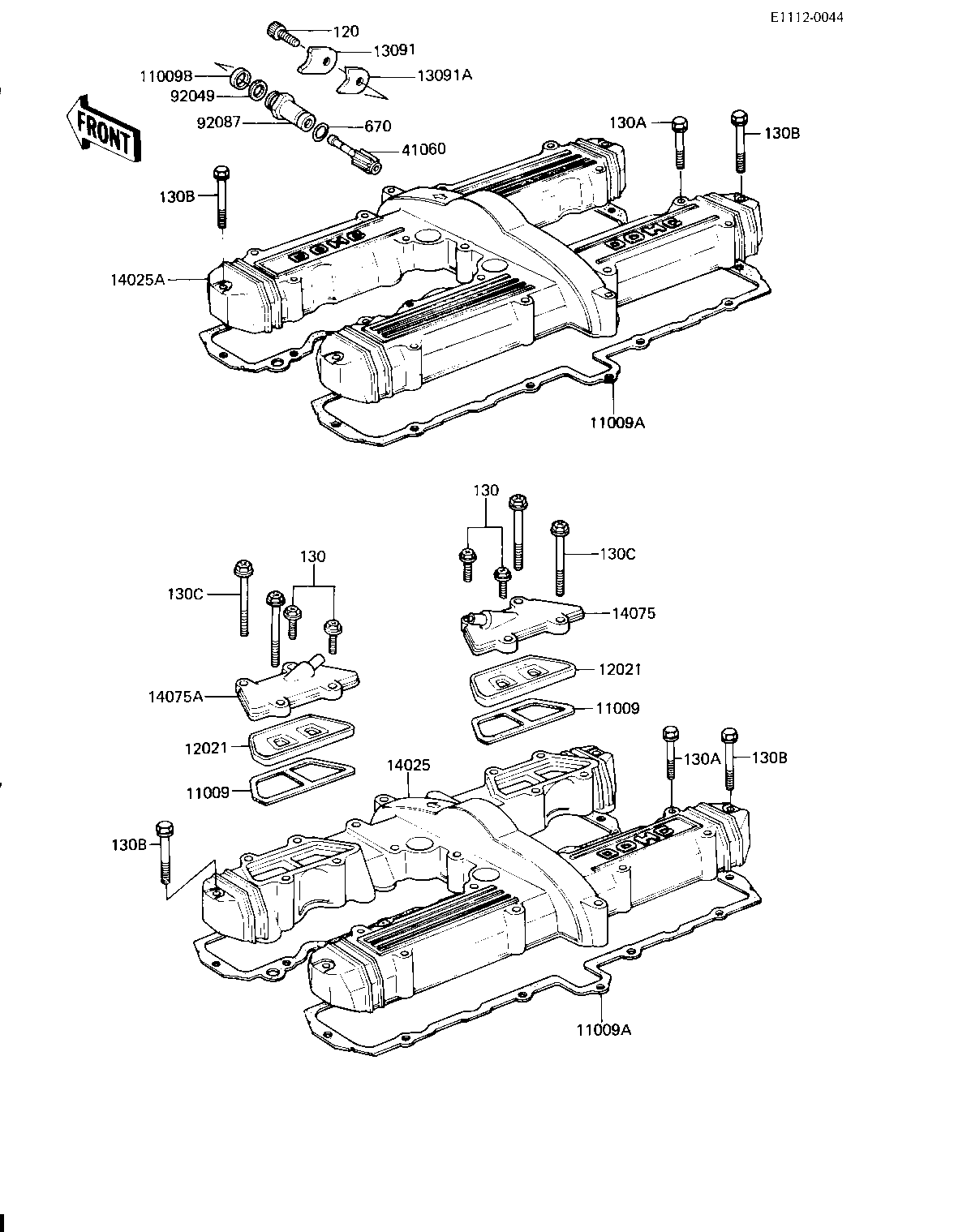

1983 CSR - CYLINDER HEAD COVER ('83 H3)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,REED VALVE | 11009 | 11060-1066 | 2 | US | |
GASKET,CYLINDER HEAD | 11009A | 11009-1274 | 1 | ||
GASKET,TACHOMETER GER | 11009B | 92065-103 | 1 | ||
VALVE-ASSY-REED | 12021 | 12021-1008 | 2 | US | |
HOLDER,TACHOMETER2.3T | 13091 | 13091-1008 | 1 | ||
HOLDER,TACHOMETR,3.2T | 13091A | 13091-1009 | 1 | ||
COVER,CYLINDER HEAD | 14025 | 14025-1552 | 1 | US | |
COVER,CYLINDER HEAD,SILVE (Can | 14025A | 14025-1553 | 1 | CN | |
CAP-ASSY,REED VALVE,R | 14075 | 14075-5016 | 1 | US | |
CAP-ASSY,REED VALVE,L | 14075A | 14075-5017 | 1 | US | |
GEAR,TACHOMETER,10T | 41060 | 13223-011 | 1 | ||
OIL SEAL | 92049 | 92050-075 | 1 | ||
GUIDE,TACHOMETER GEAR | 92087 | 92087-010 | 1 | ||
BOLT,6X14 | 120 | 120P0614 | 1 | ||
BOLT,FLANGED,6X20 | 130 | 130G0620 | 4 | US | |
BOLT,FLANGED,6X40 | 130A | 130G0640 | 16 | US | |
BOLT,FLANGED,6X40 | 130A | 130G0640 | 20 | US | |
BOLT,FLANGED,6X45 | 130B | 130G0645 | 4 | ||
BOLT,FLANGED,6X65 | 130C | 130G0665 | 4 | US | |
"0" RING,10MM | 670 | 670D1510 | 1 |
