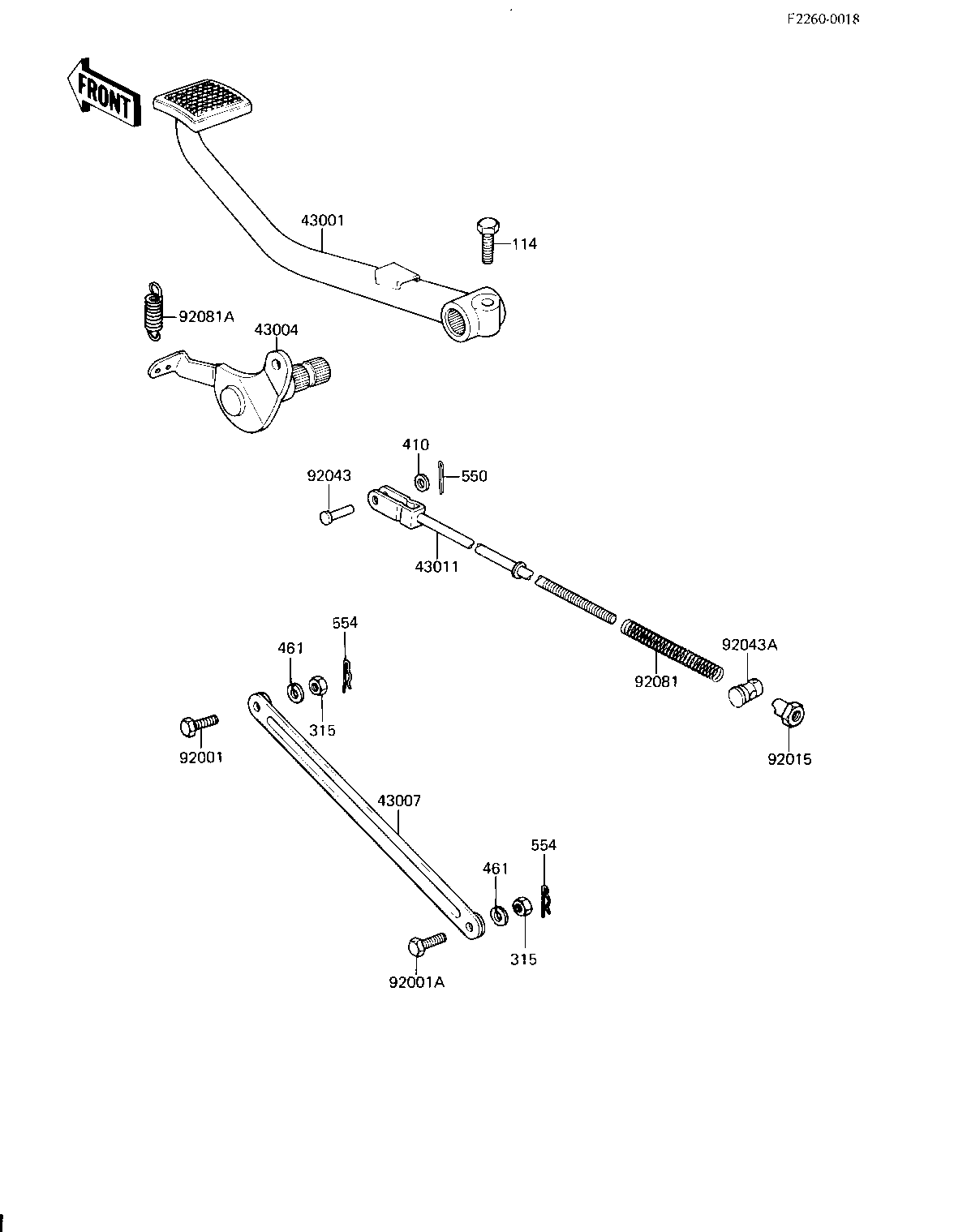

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER-BRAKE,PEDAL 43001 43001-1059 1
SHAFT-BRAKE 43004 43004-1021 1
TORQUE LINK REAR BRK 43007 43007-016 1
ROD-BRAKE 43011 43011-1031 1
BOLT,10X25 92001 92001-1450 1
BOLT HEX HEAD 10MM 92001A 92003-034 1
NUT-BRAKE ROD ADJUST 92015 92015-042 1
PIN-BRAKE ROD FITTING 92043 92043-064 1
PIN-BRAKE ROD 92043A 92043-065 1
SPRING,BRAKE ROD 92081 43012-001 1
SPRING,BRAKE PEDAL 92081A 92081-1147 1
BOLT-SMALL-UPSET 8X25 114 115G0825 1
NUT 10MM 315 315B1000 2
WASHER PLAIN 6MM 410 410B0600 1
WASHER SPRING 10MM 461 461F1000 2
PIN COTTER 2.0X15 550 550D2015 1
PIN,SNAP 554 554A0800 2
