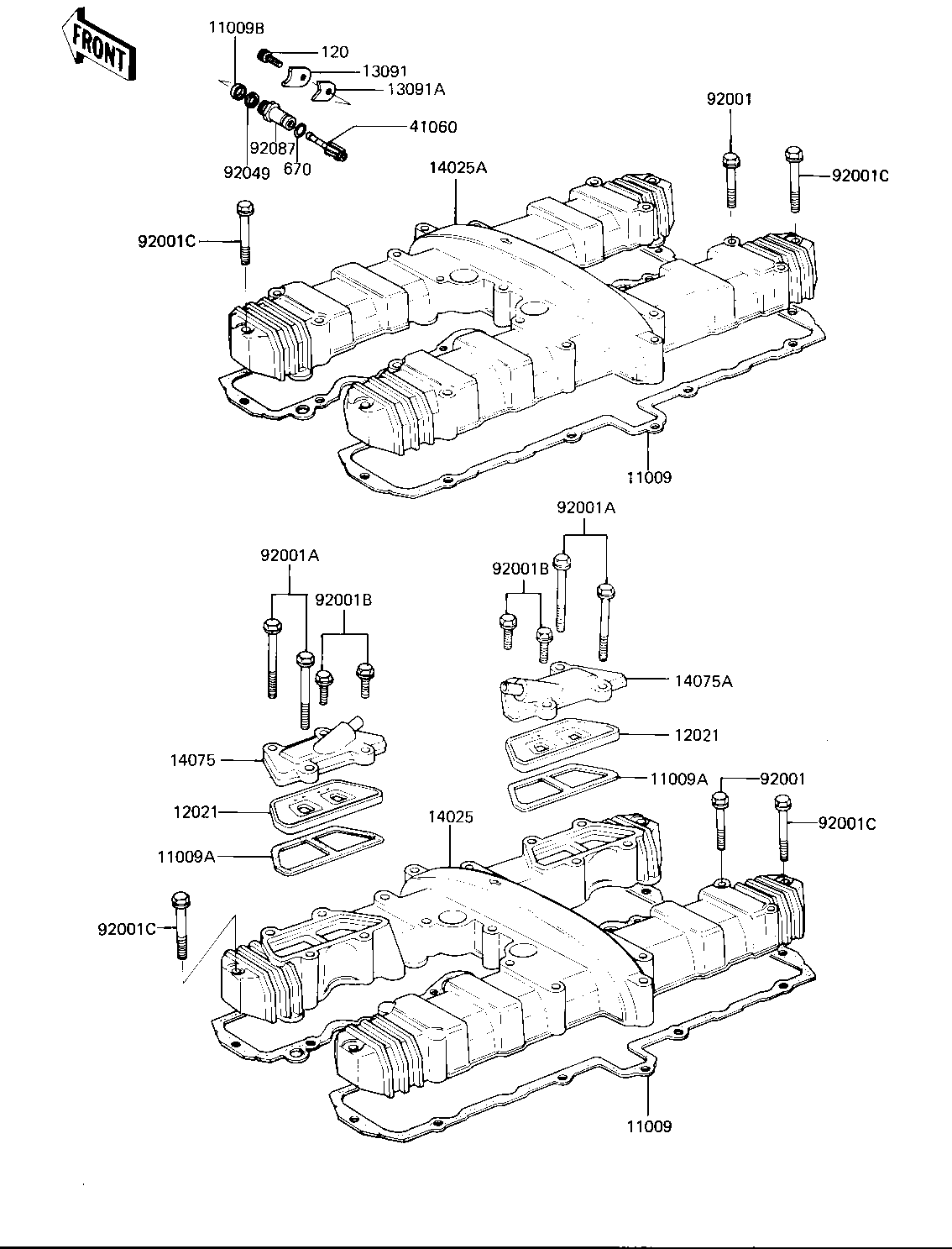

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,CYLINDER HEAD 11009 11009-1205 1
GASKET,REED VALVE 11009A 11060-1066 2 US
GASKET,TACHOMETER GER 11009B 92065-103 1
VALVE-ASSY-REED 12021 12021-1008 2 US
HOLDER,TACHOMETER2.3T 13091 13091-1008 1
HOLDER,TACHOMETR,3.2T 13091A 13091-1009 1
CAP-ASSY,REED VALVE,L 14075 14075-5018 1 US
CAP-ASSY,REED VALVE,R 14075A 14075-5019 1 US
GEAR,TACHOMETER,10T 41060 13223-011 1
BOLT,FLANGED,6X45 92001 92001-1350 16 US
BOLT,FLANGED,6X70 92001A 92001-1351 4 US
BOLT,FLANGED,6X22 92001B 92001-1352 4 US
BOLT,FLANGED,6X52 92001C 92001-1353 4
OIL SEAL 92049 92050-075 1
GUIDE,TACHOMETER GEAR 92087 92087-010 1
BOLT,6X14 120 120P0614 1
"0" RING,10MM 670 670D1510 1
