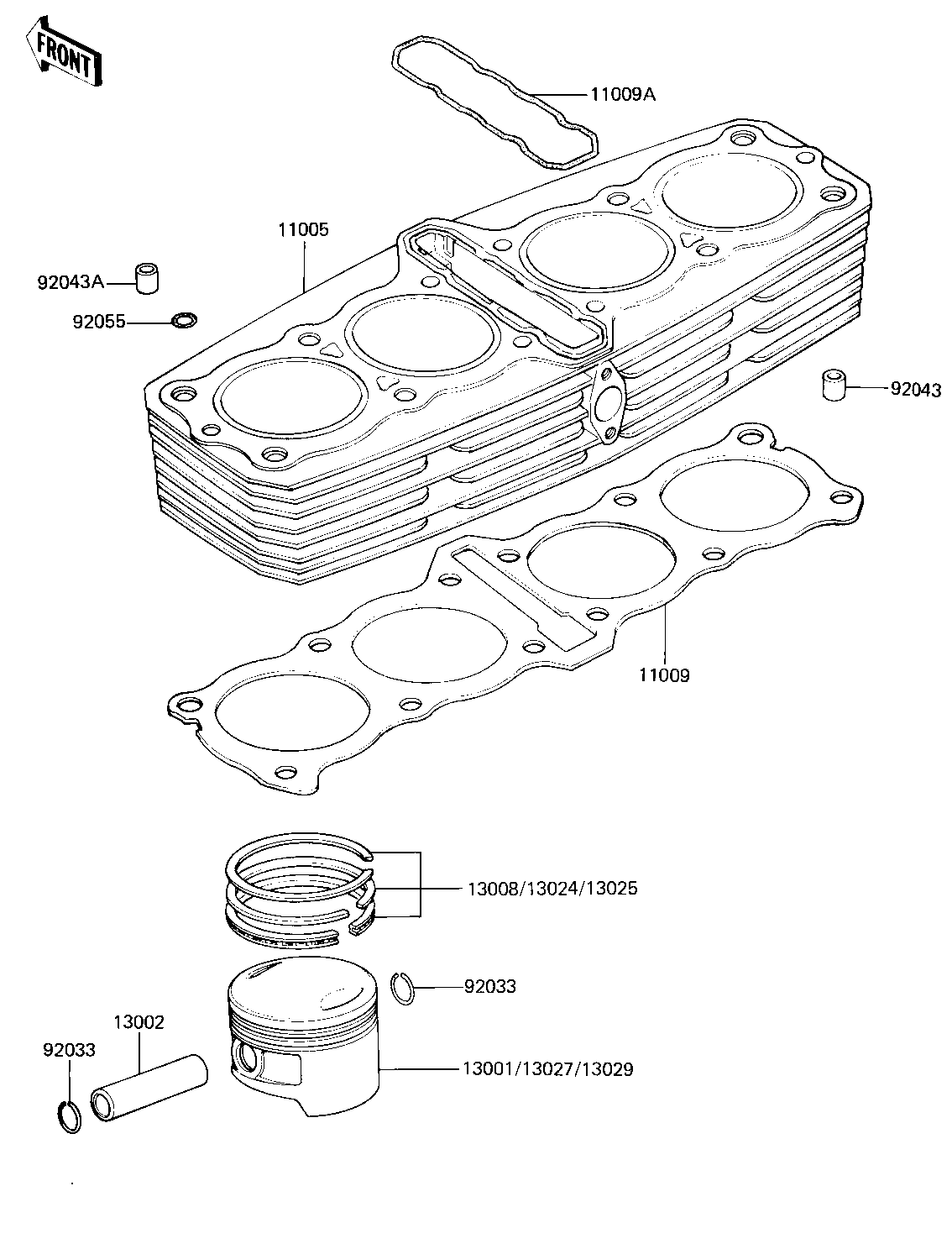

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
11005-1327 (Canada) 11005 11005-1116 1
GASKET,CYLINDER BASE 11009 11060-1067 1
GASKET,CYLINDER 11009A 11009-1208 1
PISTON-ENGINE,STD 13001 13001-1119 4
PIN-PISTON 13002 13002-1013 4
RING-SET-PISTON 13008 13008-5035 4
RING SET,1.10 O/S 13024 13024-5018 4
RING SET,050 0/S 13025 13025-5018 4
PISTON-ENGINE LL,O/S 13027 13027-1056 4
PISTON-ENGINE L,O/S 13029 13029-1058 4
RING-SNAP 92033 92033-1054 8
PIN,11X14X12.3 92043 92043-1266 2
PIN,DOWEL,10X8.2X14 92043A 92043-1037 2
RING-0,0D=18.5MM 92055 92055-1148 4
