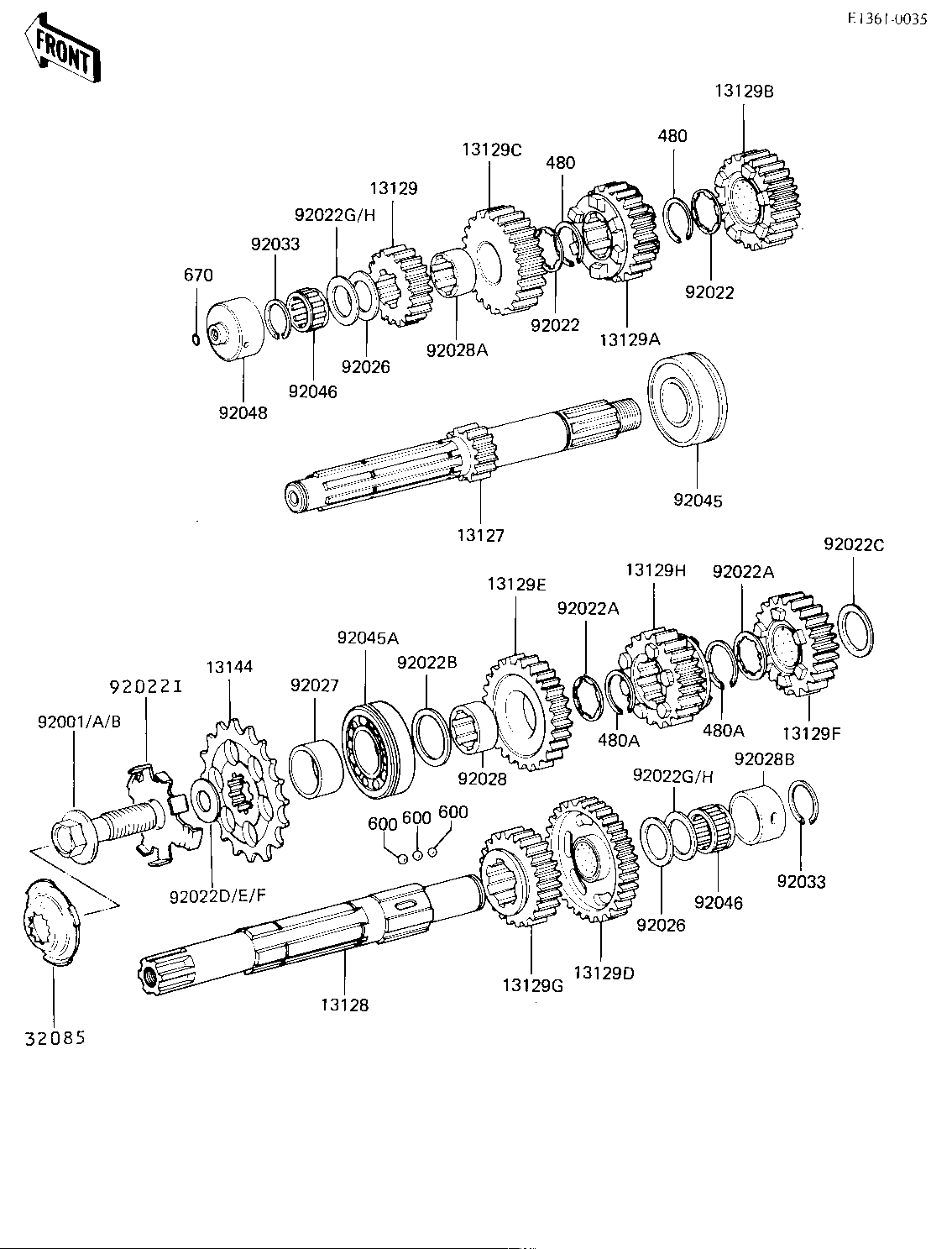

1982 CSR - TRANSMISSION

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT-TRANSMISSION IN 13127 13127-1034 1
SHAFT-TRANSMISSION OU 13128 13128-1030 1
INPUT 2ND,18T 13129 13129-1235 1
INPUT 3RD,21T 13129A 13129-1236 1
INPUT 4TH,23T 13129B 13129-1237 1
INPUT TOP,25T 13129C 13129-1238 1
OUTPUT LOW,37T 13129D 13129-1239 1
OUTPUT 2ND,33T 13129E 13129-1240 1
OUTPUT 3RD,30T 13129F 13129-1241 1
OUTPUT 4TH,27T 13129G 13129-1242 1
OUTPUT TOP,26T 13129H 13129-1243 1
SPROCKET-OUTPUT,15T 13144 13144-1042 1
STOPPER,ENGN SPROCKET 32085 32085-1101 1
BOLT,FLANGED,10X39 92001A 92001-1479 1
WASHER,LOCK (O.D=35) 92022 92022-1077 2
WASHER,LOCK,30X42X1.4 92022A 92022-1218 2
WASHER,28.3X42X2.9 92022B 92022-1219 1
WASHER,32.3X42X3 92022C 92022-1220 1
WASHER,12.3X38X2.3 92022E 92022-1274 1
WASHER,PLAIN,22MM 92022G 92022-212 2
WASHER,PLAIN,22MM 92022H 92022-213 AR
WASHER,SPRCKT STOPPER 92022I 92022-1351 1
SPACER (I.D=22 O.D=35 92026 92026-1020 2
COLLAR 92027 92027-1339 1
BUSHING,2ND GEAR 92028 92028-1112 1
BUSHING,TOP GEAR 92028A 92028-1124 1
BUSH,OUTPUT SHAFT 92028B 92028-123 1
CIRCLIP,25MM 92033 92033-025 2
BEARING,BALL,5305NSH2 92045 92045-1028 1
BEARING-BALL,63/28NC3 92045A 92045-1034 1
BEARING,PK223013.8 92046 92046-031 2
RACE,DRIVE SHAFT BRNG 92048 92048-1012 1
CIRCLIP 28MM 480 480J2800 2
CIRCRIP-TYPE-C 480A 480J3200 2
BALL STEEL 3/16' 600 600A0600 3
"O" RING,3MM 670 670B1503 1
