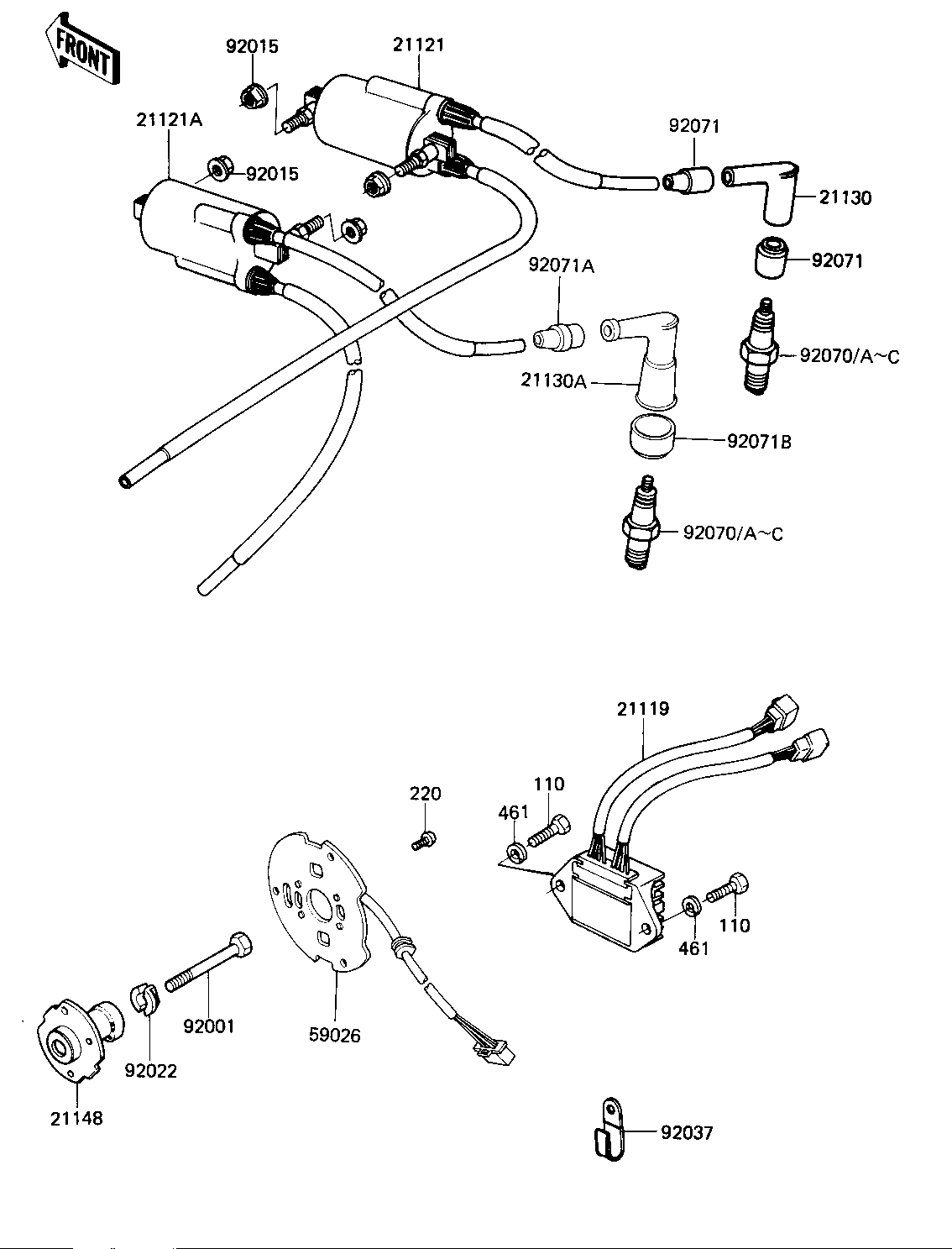

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
IGNITER | 21119 | 21119-1041 | 1 | ||
COIL-IGNITION | 21121 | 21121-1038 | 1 | ||
COIL-IGNITION | 21121A | 21121-1039 | 1 | ||
CAP-SPARK PLUG,RTFM20 | 21130 | 21130-1007 | 2 | ||
CAP-SPARK PLUG | 21130A | 21130-1010 | 2 | ||
GOVERNOR-BREAKER | 21148 | 21148-1020 | 1 | ||
COIL-PULSING | 59026 | 59026-1012 | 1 | ||
BOLT-8X63 | 92001 | 92001-1397 | 1 | ||
NUT-6MM | 92015 | 92015-1078 | 4 | ||
WASHER,SPARK ADVANCER | 92022 | 92022-244 | 1 | ||
CLAMP,WIRING HARNESS | 92037 | 21126-008 | 4 | ||
SPARK PLUG B8ES | 92070 | B8ES | 4 | US | |
GROMMET-PLUG CAP,A | 92071 | 21131-004 | 2 | ||
GROMMET,HIGH TENSION | 92071A | 21131-005 | 2 | ||
GROMMET,PLUG CAP | 92071B | 21131-006 | 2 | ||
GROMMET,SPARK PLG CAP | 92071C | 21132-005 | 2 | ||
BOLT-UPSET,6X16 | 110 | 112G0616 | 1 | ||
SCREW PAN HEAD 5X12 | 220 | 220B0512 | 3 | ||
WASHER SPRING 6MM | 461 | 461F0600 | 1 |
IGNITER | |
REF # | 21119 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COIL-IGNITION | |
REF # | 21121 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COIL-IGNITION | |
REF # | 21121A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP-SPARK PLUG,RTFM20 | |
REF # | 21130 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CAP-SPARK PLUG | |
REF # | 21130A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GOVERNOR-BREAKER | |
REF # | 21148 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COIL-PULSING | |
REF # | 59026 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-8X63 | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT-6MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
WASHER,SPARK ADVANCER | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,WIRING HARNESS | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SPARK PLUG B8ES | |
REF # | 92070 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS | US |
GROMMET-PLUG CAP,A | |
REF # | 92071 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GROMMET,HIGH TENSION | |
REF # | 92071A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GROMMET,PLUG CAP | |
REF # | 92071B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GROMMET,SPARK PLG CAP | |
REF # | 92071C |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-UPSET,6X16 | |
REF # | 110 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW PAN HEAD 5X12 | |
REF # | 220 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
WASHER SPRING 6MM | |
REF # | 461 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
