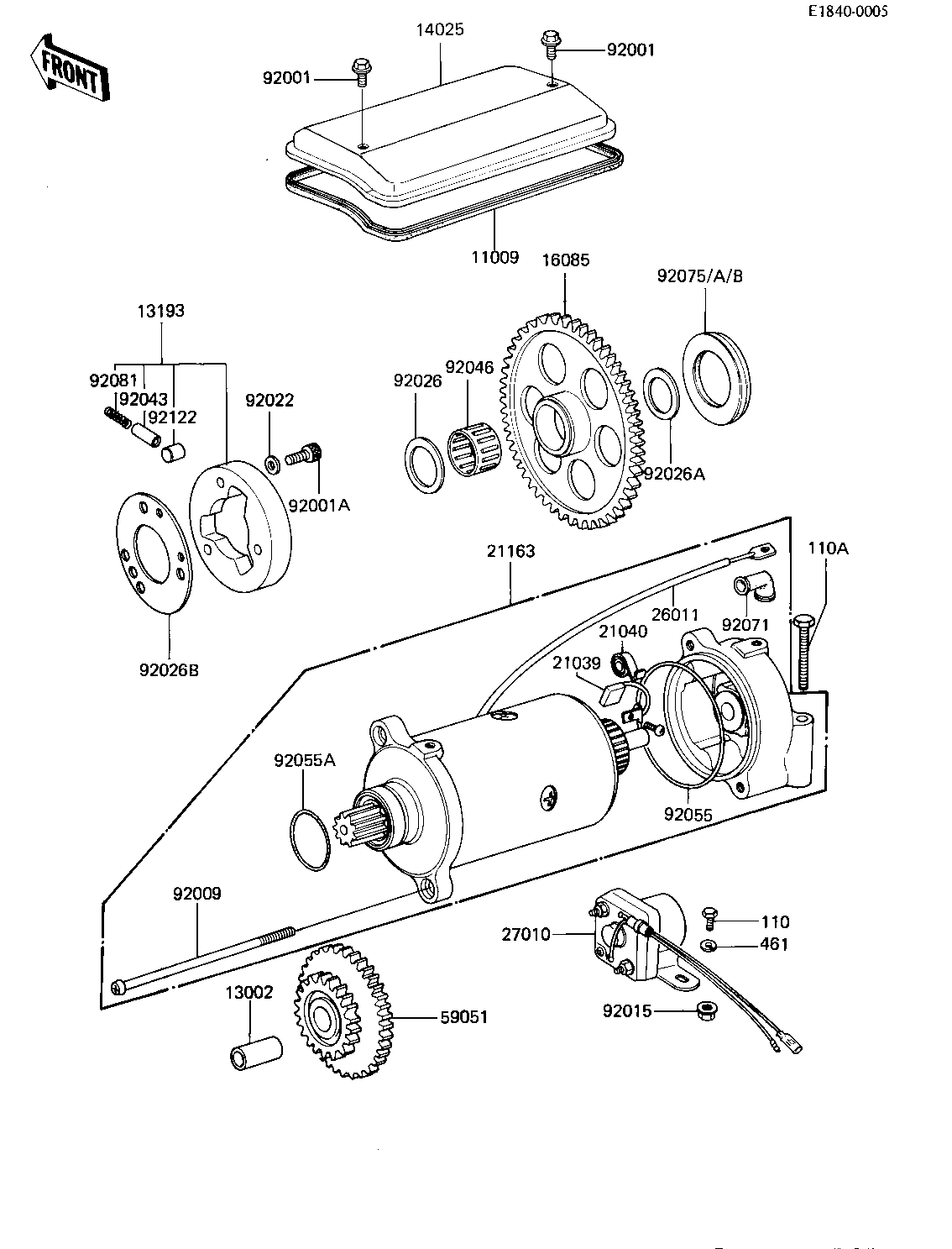

1982 CSR - STARTER MOTOR/STARTER CLUTCH (KZ1000-M1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,START MOTOR CV 11009 21166-001 1
PIN-PISTON 13002 13002-007 1
CLUTCH ASSY,STARTING 13193 13193-1006 1
COVER 14025 14025-1245 1
GEAR,STARTING CLUTCH 16085 16085-1012 1
CARBON BRUSH 21039 21039-003 2
SPRING,CARBON BRUSH 21040 21040-003 2
STARTER-ELECTRIC 21163 21163-1143 1
WIRE-LEAD,STARTER MTR 26011 26011-1125 1
SWITCH,MAGNETIC 27010 27010-1047 1
GEAR,STARTING MOTOR 59051 21167-002 1
BOLT,6X10 92001 92001-1151 2
BOLT 92001A 120P0816 3
SCREW,PAN HEAD,6X110 92009 21015-005 2
NUT-6MM 92015 92015-1078 2
WASHER,PLAIN 92022 92022-1108 3
SPACER 92026 92026-1031 1
SPACER 92026A 92026-1033 1
PLATE,CLUTCH STARTER 92026B 92026-112 1
PIN 92043 92043-087 3
BEARING,NEEDLE,K25302 92046 92046-1022 1
"0" RING,STARTING MTR 92055 21027-003 1
"0" RING,STARTING MTR 92055A 21027-004 1
GROMMET,CORD 92071 21017-017 2
DAMPER RUBBER,6.3T 92075 92075-1129 AR
DAMPER RUBBER,7.3T 92075A 92075-1130 AR
DAMPER RUBBER,8.3T 92075B 92075-1131 AR
SPRING 92081 92081-110 3
PIN 92122 92122-001 3
BOLT-UPSET,6X12 110 112G0612 2
BOLT,EXCLUSIVE 110A 92001-1456 1
WASHER SPRING 6MM 461 461F0600 2
