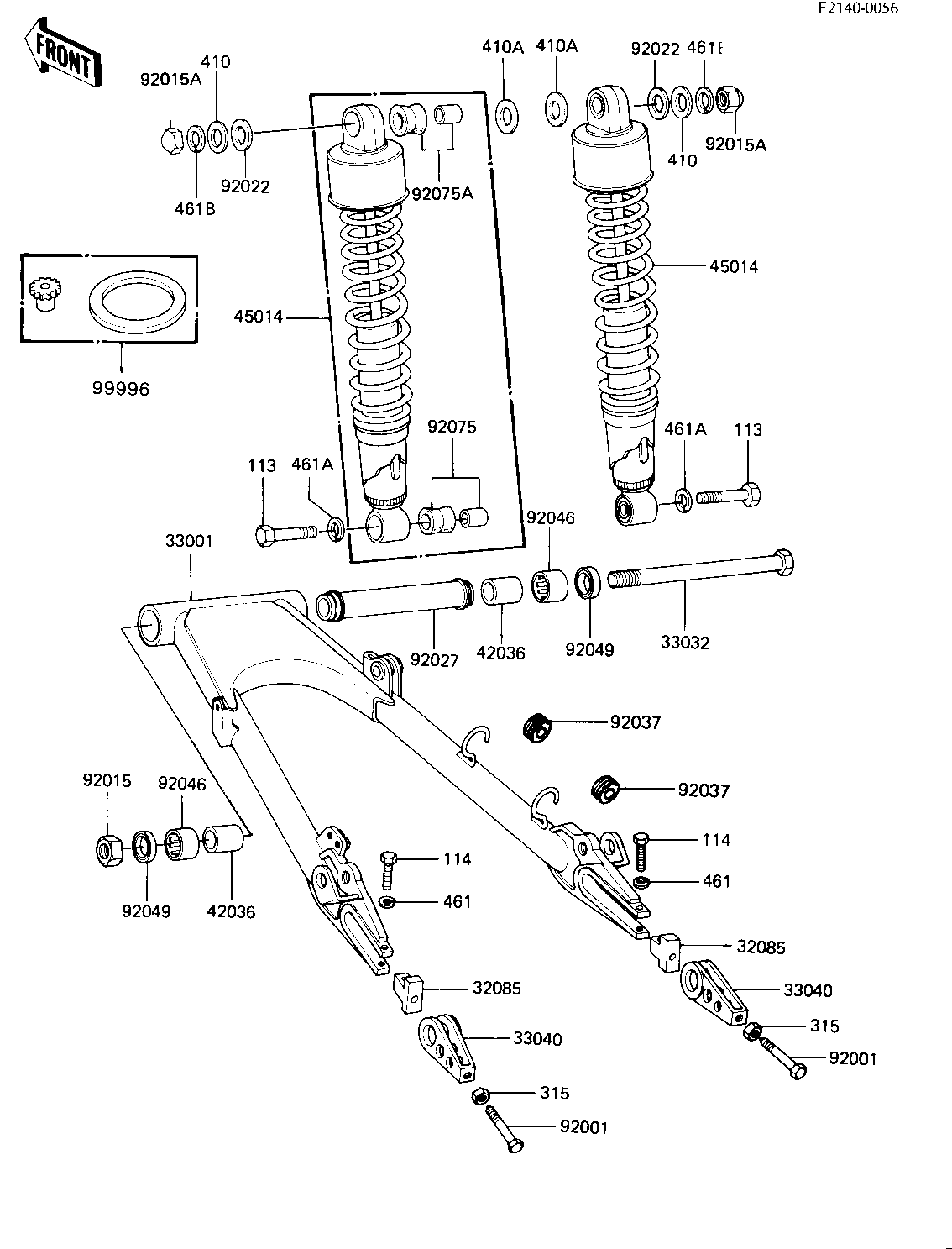

1982 CSR - SWING ARM/SHOCK ABSORBERS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STOPPER,CHAIN ADJUST 32085 33044-001 2
ARM-COMP-SWING 33001 33001-1077 1
SHAFT,SWING ARM PIVOT 33032 33032-036 1
ADJUSTER,CHAIN 33040 33040-066 2
SLEEVE,SWING ARM 42036 42036-1040 2
SHOCK ABSBR RR 45014 45014-1078 2
BOLT-CHN ADJUST 10MM 92001 92001-143 2
NUT-SELF LOCKING 92015 92019-012 1
NUT 12MM 92015A 92020-014 2
WASHER,12.4X28X2.3 92022 92022-1239 2
COLLAR,SWING ARM,L=15 92027 92027-1301 1
DAMPER RUBBER 92037 43064-007 2
BEARING-NEEDLE 92046 92046-1035 2
SEAL-OIL 92049 92049-1060 2
BUSHING,SHOCK ABSORBE 92075 45017-019 2
BUSHING,SHOCK ABSORBE 92075A 92075-1141 2
SHOCK ABSORBER KIT 99996 99996-1025 2
BOLT HEX HEAD 10X35 113 113N1035 2
BOLT,8X40 114 115G0840 2
NUT 10MM 315 315B1000 2
WASHER PLAIN 12MM 410 410B1200 2
WASHER PLAIN 14MM 410A 410B1400 2
WASHER SPRING 8MM 461 461F0800 2
WASHER SPRING 10MM 461A 461F1000 2
WASHER SPRING 12MM 461B 461F1200 2
