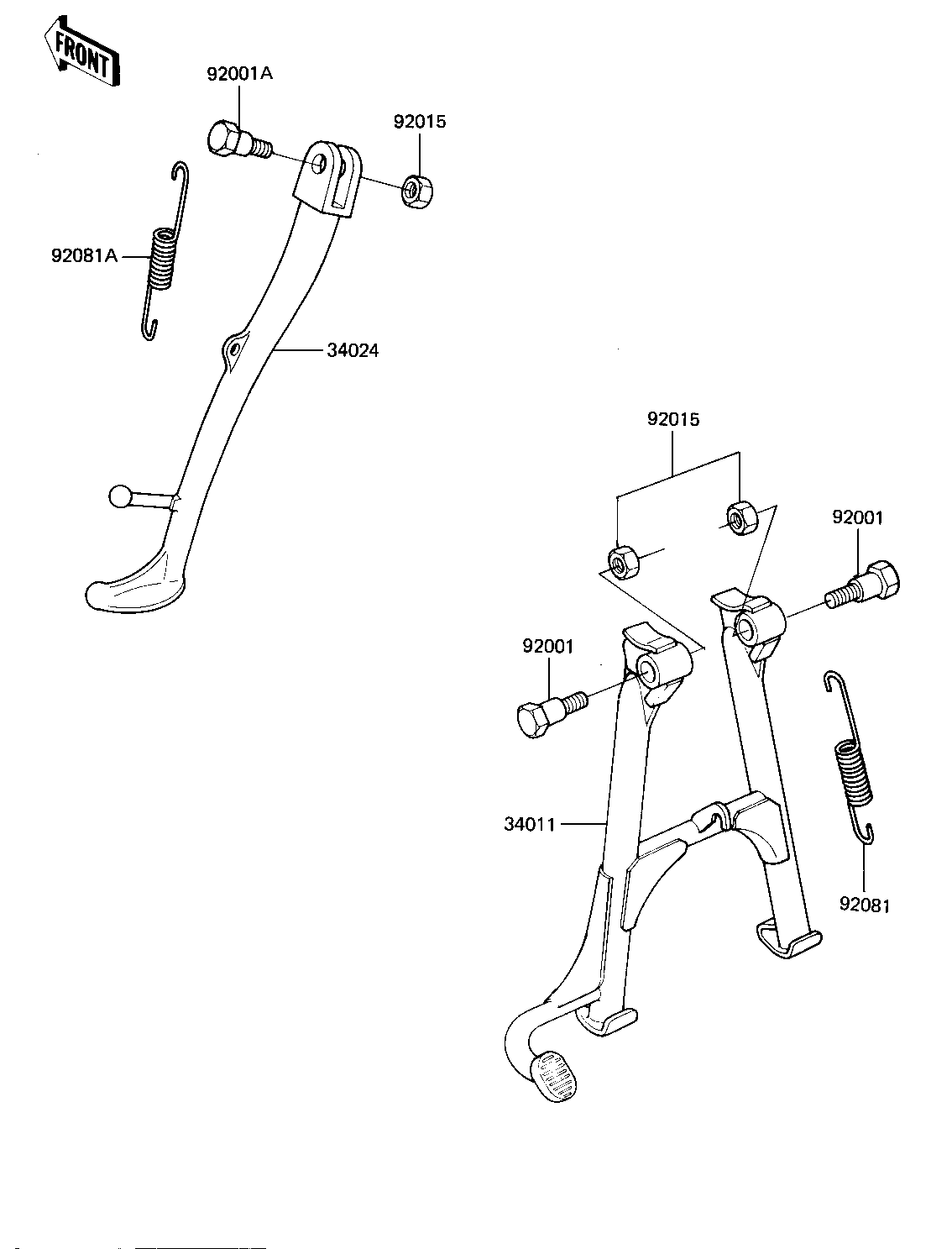

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STAND-MAIN 34011 34011-1038 1
STAND-SIDE 34024 34024-1026 1
BOLT,MAIN STAND FITTI 92001 92001-1214 2
BOLT-SIDE STAND 92001A 92003-079 1
NUT,LOCK,10MM 92015 92019-021 3
SPRING,MAIN STAND 92081 34023-012 1
SPRING,SIDE STAND 92081A 34025-005 1
