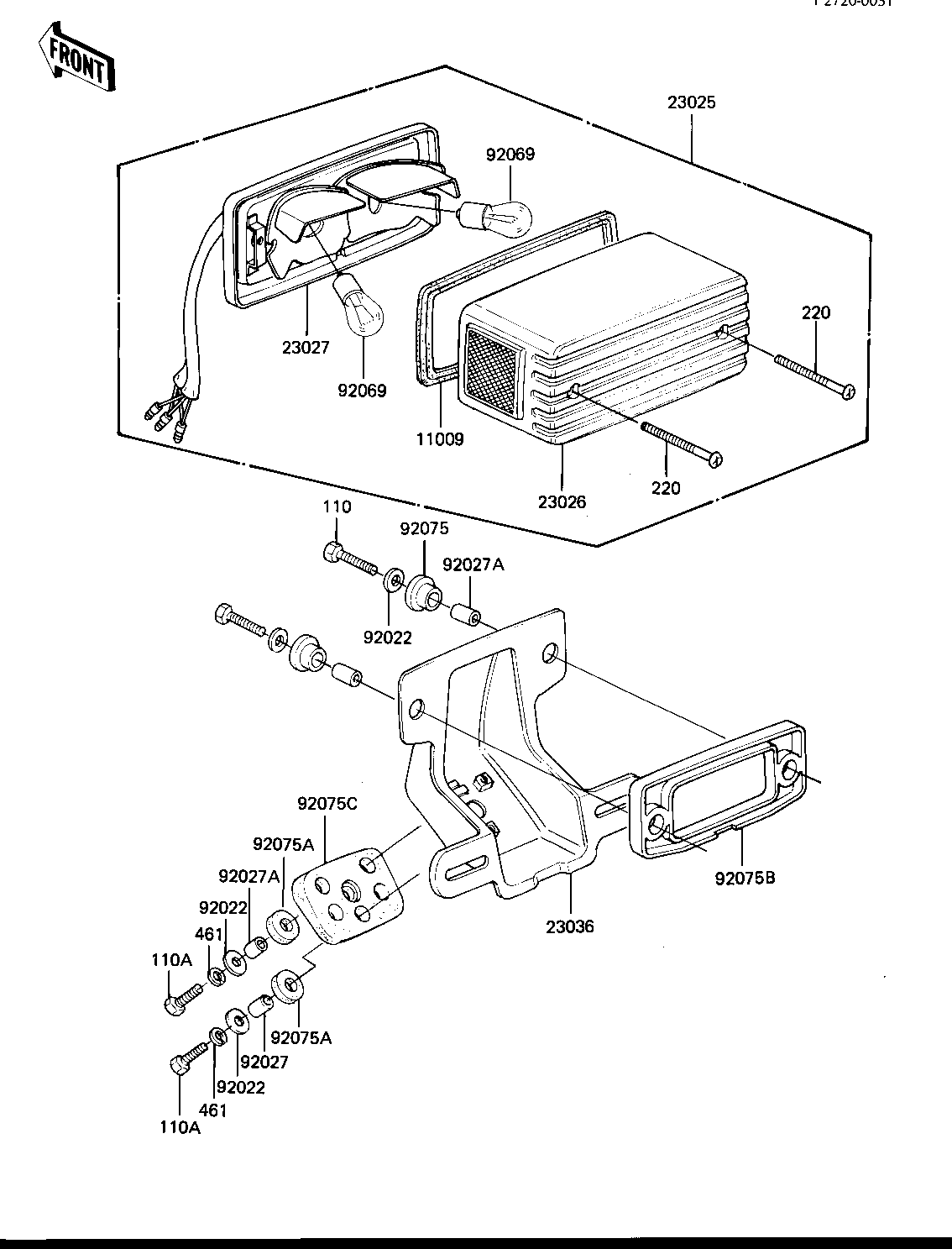

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,TAIL LAMP 11009 11009-1221 1
LAMP TAIL "220-40896" 23025 23025-1037 1
LENS,TAIL LAMP 23026 23026-1024 1
LAMP TAIL "220-40896" 23027 23025-1037 1
BRACKET-TAIL LAMP 23036 23036-1033 1
WASHER 6.5X20X1.6T 92022 92022-125 5
COLLAR 6.8X10X14.5 92027 92027-156 1
COLLAR 92027A 92027-169 4
BULB,12V 32/3CP 92069 92069-059 2
DAMPER RUBBER 92075 92075-1092 2
DAMPER RUBBER,RR FEND 92075A 92075-121 3
DAMPER 92075B 92075-1282 1
DAMPER 92075C 92075-1283 1
BOLT 6X22 110 112B0622 2
BOLT-UPSET 110A 112G0625 3
SCREW-PAN-CROS 220 220B0465 2
WASHER SPRING 6MM 461 461F0600 3
