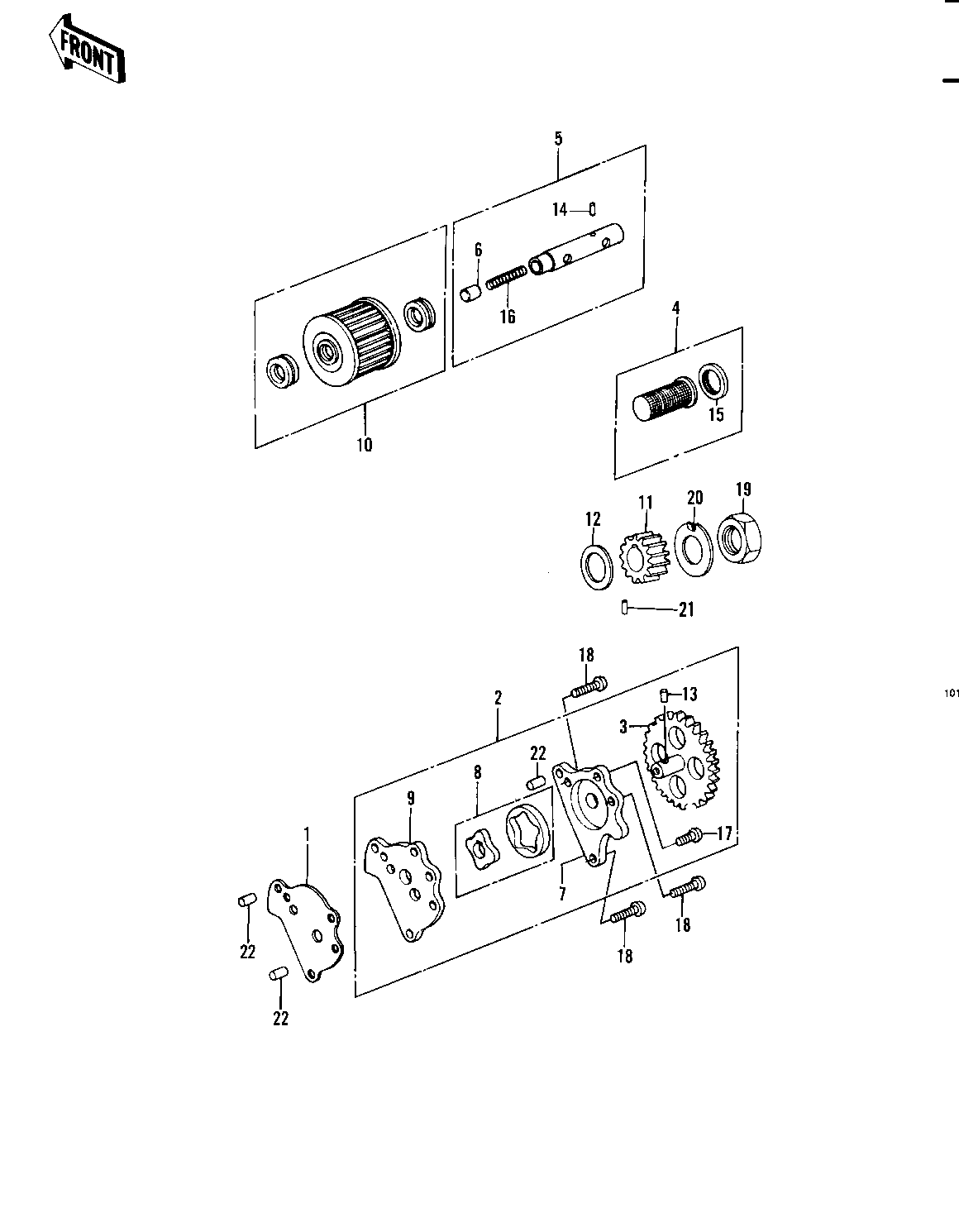

1982 KLT250 - OIL PUMP/OIL FILTER ('82 A1)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,OIL PUMP | 1 | 11060-1115 | 1 | ||
PUMP ASSY OIL | 2 | 16082-1015 | 1 | ||
GEAR,OIL PUMP | 3 | 16085-026 | 1 | ||
STRAINER ASSY,OIL | 4 | 16097-1001 | 1 | ||
BOLT ASSY,OIL FILTER | 5 | 16156-002 | 1 | ||
PISTON | 6 | 92136-002 | 1 | ||
COVER-PUMP,WATER | 7 | 16142-1008 | 1 | ||
ROTOR OIL PUMP | 8 | 16154-1008 | 1 | ||
CASE,OIL PUMP | 9 | 16141-006 | 1 | ||
FILTER,OIL | 10 | 16099-004 | 1 | ||
GEAR,OIL PUMP | 11 | 16084-018 | 1 | ||
WASHER-THRUST | 12 | 92022-170 | 1 | ||
PIN,DOWEL | 13 | 92042-041 | 1 | ||
SPRING PIN | 14 | 92043-123 | 1 | ||
GROMMET,OIL STRAINER | 15 | 92071-100 | 1 | ||
SPRING,PISTON | 16 | 92081-043 | 1 | ||
SCREW PAN HEAD 6X16 | 17 | 220B0616 | 1 | ||
SCREW PAN HEAD 6X25 | 18 | 220B0625 | 3 | ||
NUT 16MM | 19 | 315B1600 | 1 | ||
WASHER,LOCK,16M/M | 20 | 420B1611 | 1 | ||
PIN DOWEL 3X12 | 21 | 551A0312 | 1 | ||
PIN,DOWEL,6X8 | 22 | 551A0608 | 3 |
