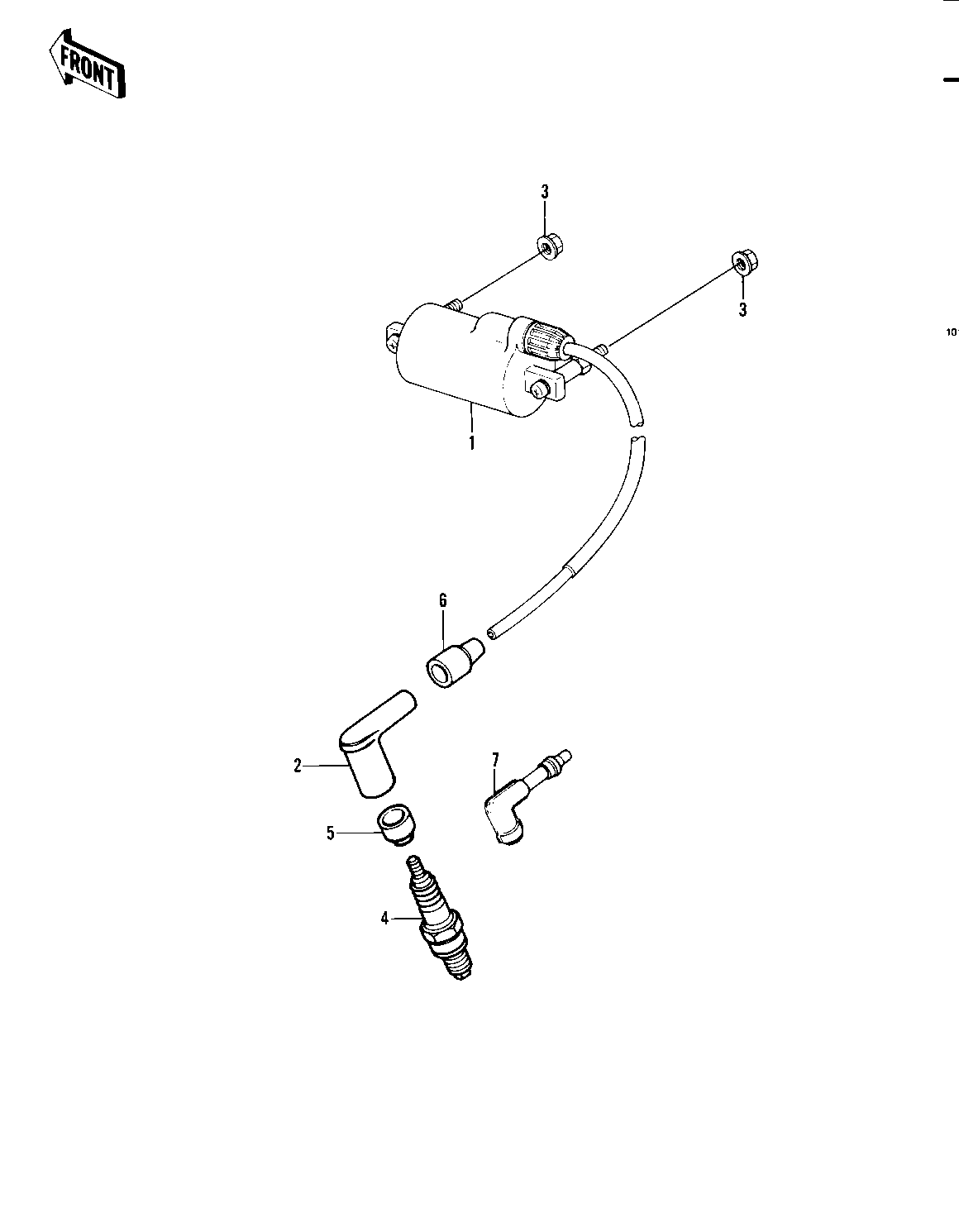

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COIL IGNITION 1 21121-1049 1
CAP-SPARK PLUG,RTFM20 2 21130-1007 1
NUT-6MM 3 92015-1078 2
SPARK PLUG B8ES 4 B8ES 1
SPARK PLUG BR8ES 4 BR8ES 1 CANADA
GROMMET-PLUG CAP,A 5 21131-004 1
GROMMET,SPARK PLG CAP 6 21132-005 1
CAP,SPARK PLUG 7 21160-005 1 CANADA
