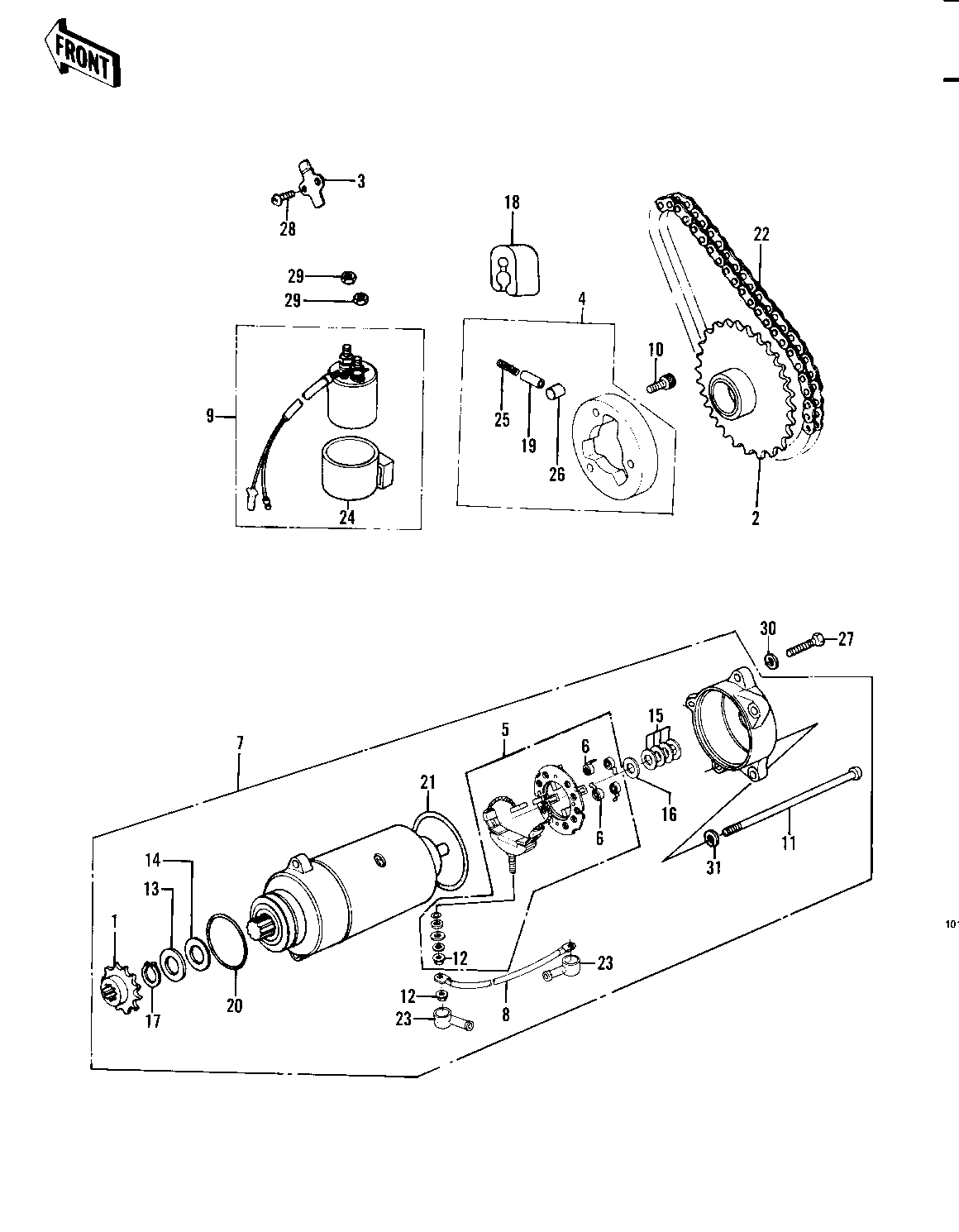

1982 KLT250 - STARTER MOTOR/STARTER CLUTCH ('82 A1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SPROCKET,STARTER MOTO 1 12046-1004 1
SPROCKET,STARTER 2 12046-1023 1
PLATE 3 13169-1010 1
CLUTCH ASSY,STARTING 4 13193-1006 1
BRUSH,CARBON 5 21039-1007 1
SPRING CARBON BRUSH 6 21040-004 2
STARTER-ELECTRIC 7 21163-1036 1
WIRE-LEAD,STARTER MOT 8 26011-1201 1
SWITCH ASSY,MAGNETIC 9 21164-005 1
BOLT 10 120P0816 3
SCREW,PAN HEAD,6X119 11 92009-1097 2
NUT-6MM 12 92015-1078 2
WASHER,PLAIN,14MM 13 21025-008 1
WASHER PLAIN 14MM 14 21025-009 1
WASHER,THRUST,0.2T 15 21025-011 AR
WASHER,THRUST,0.8T 16 92022-1132 1
CIRCLIP,13M/M 17 92033-037 1
CLAMP,CABLE 18 92037-1049 1
PIN 19 92043-087 3
"0" RING,42.8MM 20 21027-005 1
"0" RING,STARTER MOTR 21 92055-1086 1
CHAIN,DYNAMO 22 92057-1009 1
CAP,STARTING MOTOR 23 21017-020 2
DAMPER MAG SWITCH SHK 24 21064-002 1
SPRING 25 92081-110 3
PIN 26 92122-001 3
BOLT-UPSET 27 112G0625 2
SCREW PAN HEAD 6X14 28 220B0614 1
NUT 8MM 29 311G0800 2
WASHER PLAIN 6MM 30 411B0600 2
WASHER SPRING 6MM 31 461F0600 2
