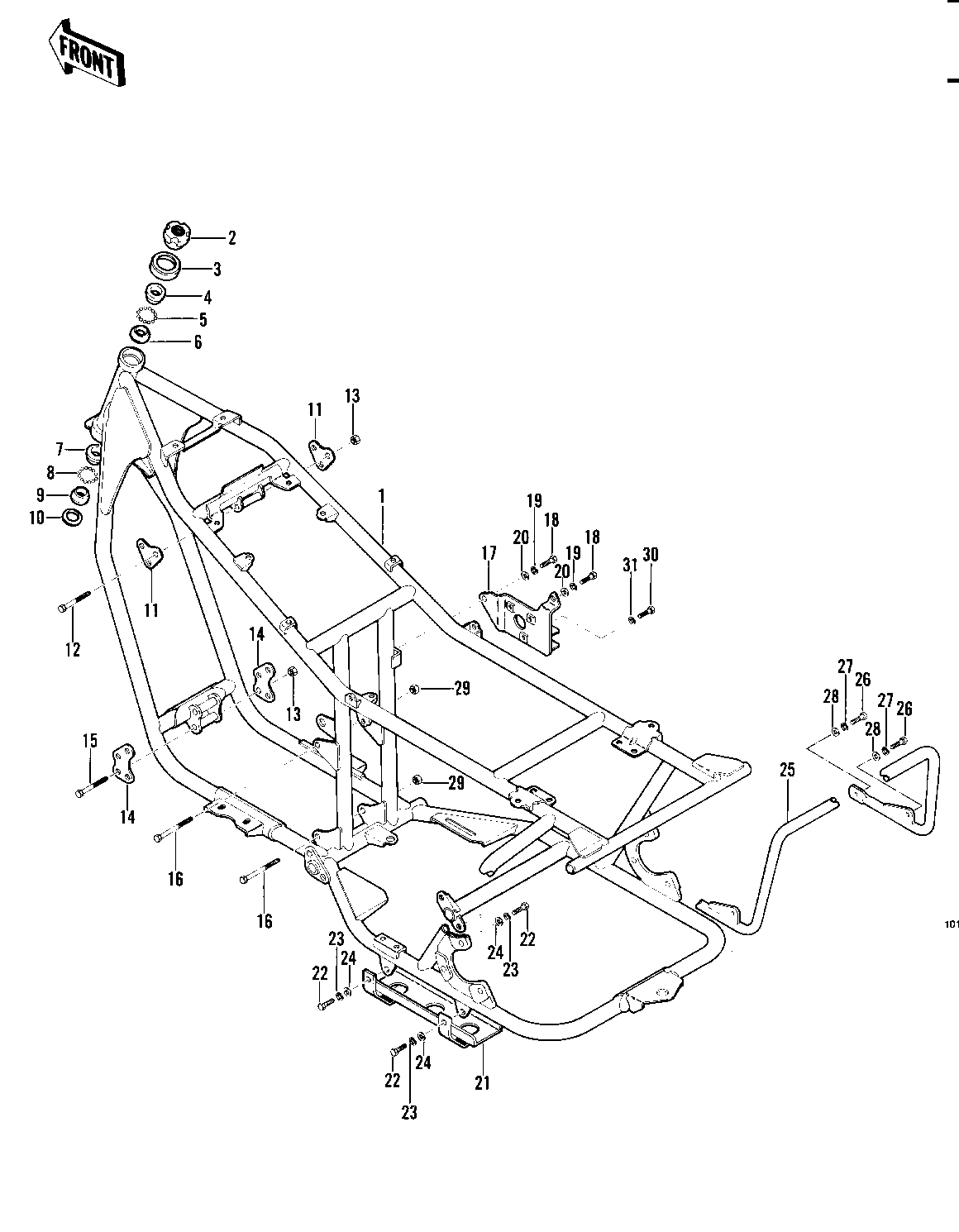

1982 KLT250 - FRAME/FRAME FITTINGS ('82 A1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FRAME-COMP 1 32002-4009 1
NUT,STEERING STEM 2 92015-4007 1
CAP,STEERING STEM 3 46098-012 1
CONE,STRG STM BRG,UP 4 92047-014 1
BALL STEEL 3/16' 5 600A0600 23
RACE,STRG STM BEARING 6 92048-009 1
RACE STEERING BEARING 7 92048-005 1
BALL STEEL 1/4' 8 600A0800 19
CONE STERNG BERG LOW 9 92047-010 1
SEAL,STEERING STEM 10 44010-027 1
BRACKET-ENGINE 11 32029-4023 2
BOLT-8X63 12 92001-1397 3
NUT,LOCK,8MM 13 92015-1124 7
BRACKET-ENGINE 14 32029-4022 2
BOLT-FLANGE 15 92001-1582 4
BOLT, FLANGED, 10X110 16 92001-1602 2
BRACKET 17 11034-4100 1
BOLT-UPSET,6X12 18 112G0612 2
WASHER SPRING 6MM 19 461F0600 2
WASHER PLAIN 6MM 20 411B0600 2
GUARD 21 55020-4016 1
BOLT,8X20 22 115G0820 3
WASHER SPRING 8MM 23 461F0800 3
WASHER PLAIN 8MM 24 410B0800 3
GUARD,REAR 25 55020-4015 1
BOLT,8X20 26 115G0820 4
WASHER SPRING 8MM 27 461F0800 4
WASHER PLAIN 8MM 28 410B0800 4
NUT,LOCK,10MM 29 92019-021 2
BOLT-UPSET,6X16 30 112G0616 1
WASHER SPRING 8MM 31 461F0800 1
