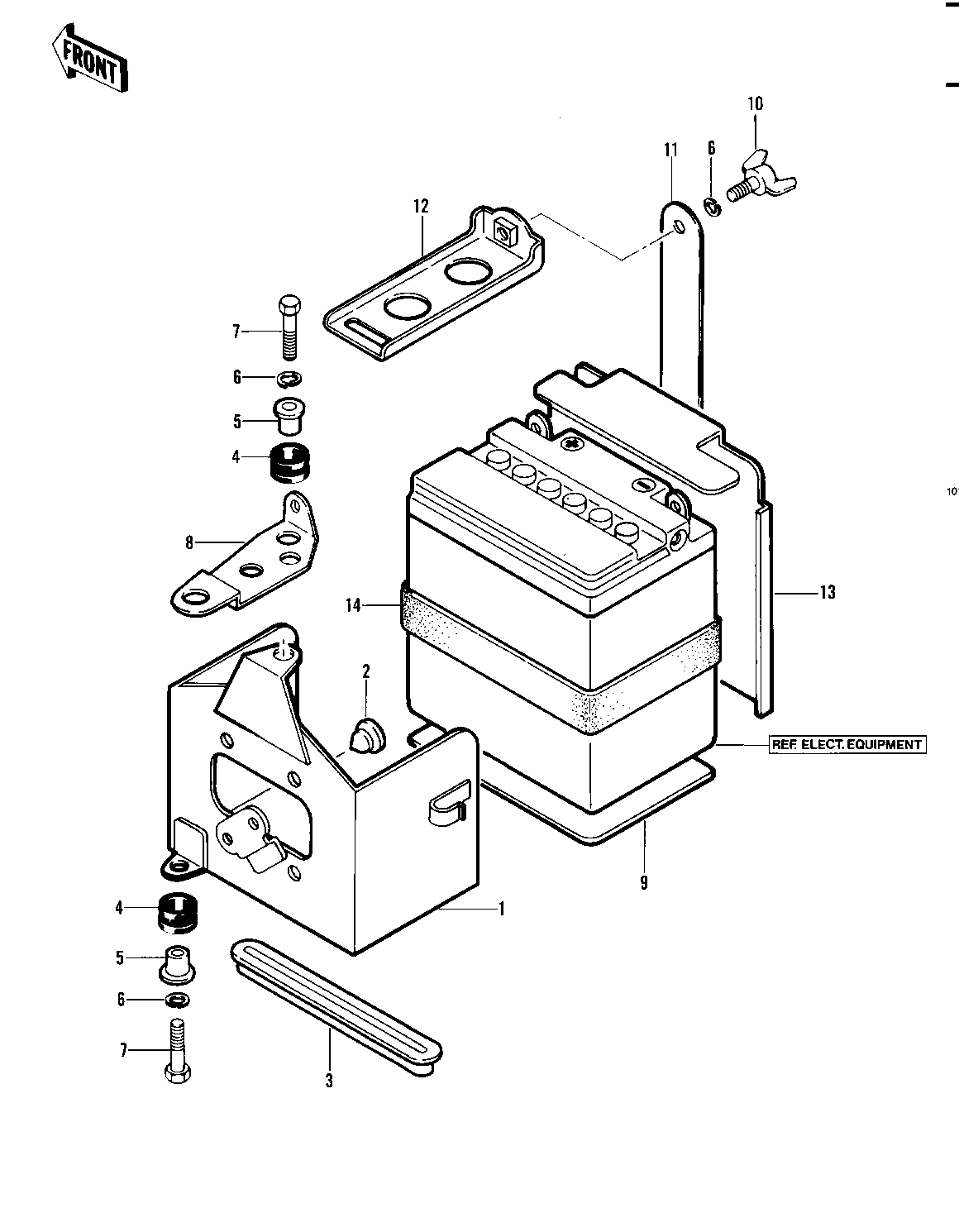

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CASE-BATTERY 1 32097-4003 1
DAMPER RUBBER 2 92075-078 4
DAMPER RUBBER 3 92075-280 1
DAMPER RUBBER 4 92075-277 2
COLLAR 5 92027-1045 2
UNAVAILABLE IN PRICE BOOK 6 481F0600 3
BOLT-UPSET,6X20 7 112G0620 2
BRACKET 8 11034-4119 1
DAMPER,BATTRY CASE 9 92075-4019 1
BOLT,CLNR ELEMENT 10 92003-199 1
BAND,BATTERY 11 92072-4005 1
BAND,BATTERY 12 92072-4006 1
COVER 13 14025-4007 1
MAT-BATTERY SIDE 14 32103-023 1
