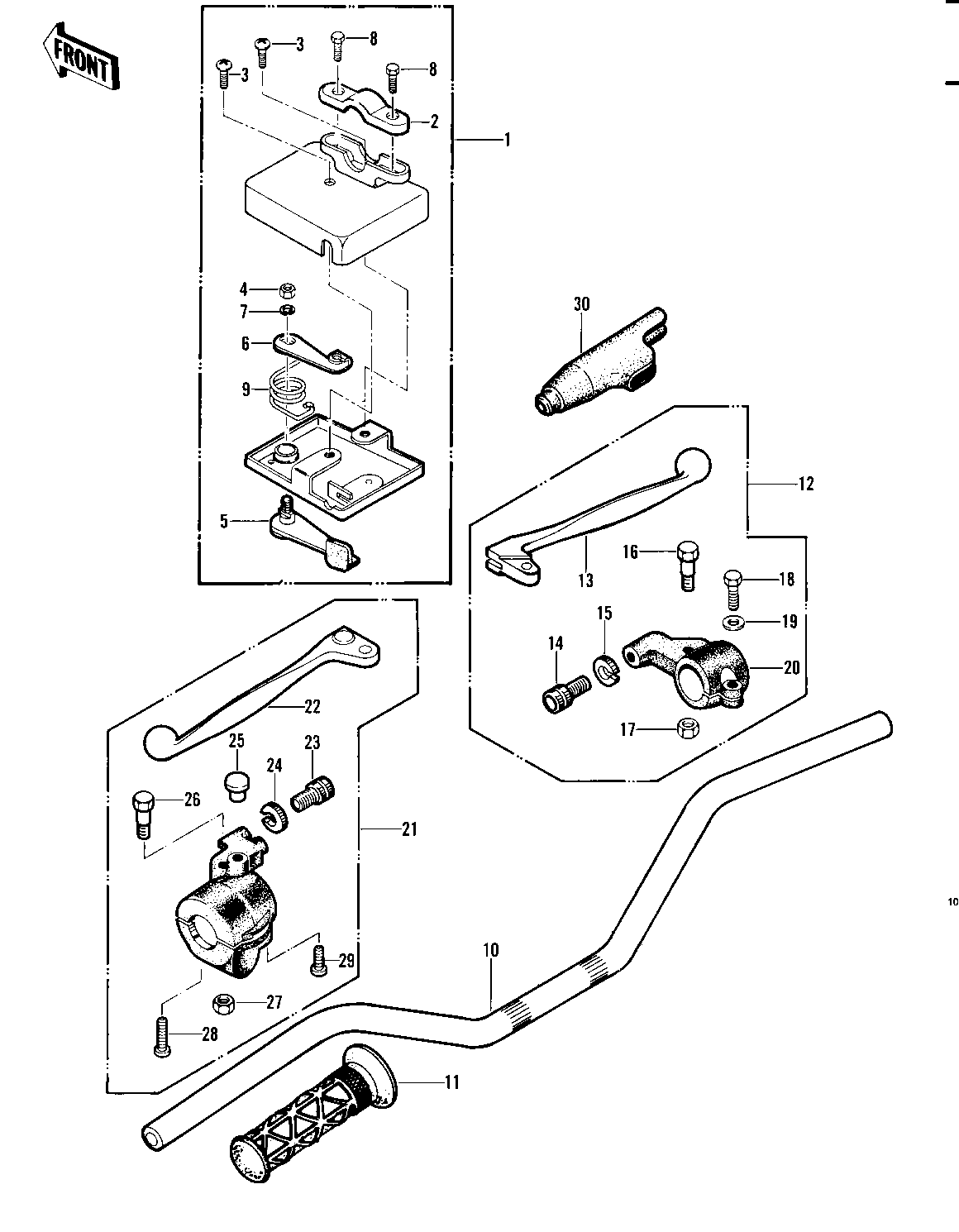

1982 KLT250 - HANDLEBAR ('82 A1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER-ASSY-THROTTLE 1 39074-4001 1
HOLDER,THROTTLE LEVER 2 13091-4002 1
SCREW PAN HEAD 6X10 3 220B0610 2
NUT 6MM 4 311B0600 1
LEVER THROTTLE OUTER 5 39075-4001 1
LEVER THROTTLE INNER 6 39075-4002 1
WASHER SPRING 6MM 7 461F0600 1
BOLT HEX HEAD 8 92001-4011 2
SPRING RETURN 9 92081-4007 1
HANDLEBAR 10 46003-4004 1
GRIP,RH 11 46075-4001 2
LEVER ASSY,FRNT BRAKE 12 46021-025 1
LEVER FRONT BRAKE 13 46058-004 1
SCREW CABLE ADJUST 14 46055-003 1
NUT-LOCK 15 46056-005 1
BOLT,HEX HEAD,5X22 16 92007-046 1
NUT-LOCK,5MM 17 92019-014 1
BOLT HEX HEAD 6X25 18 110N0625 1
WASHER,PLAIN,6MM 19 410D0600 1
HOLDER,FR LEVER,F.BLK 20 46060-011-21 1
HOUSING-ASSY-CONTROL 21 46091-4001 1
LEVER,CLUTCH 22 46092-024 1
SCREW CABLE ADJUST 23 46055-003 1
NUT-LOCK 24 46056-005 1
PLUG,9.5X8 25 92066-1077 1
BOLT,HEX HEAD,5X22 26 92007-046 1
NUT-LOCK,5MM 27 92019-014 1
SCREW,PAN HEAD,5X38 28 92009-1018 1
SCREW-PAN-CROS,5X25 29 220B0525 1
BOOTS,LEVER HOLDER 30 49006-1017 2
