Parts Diagrams |

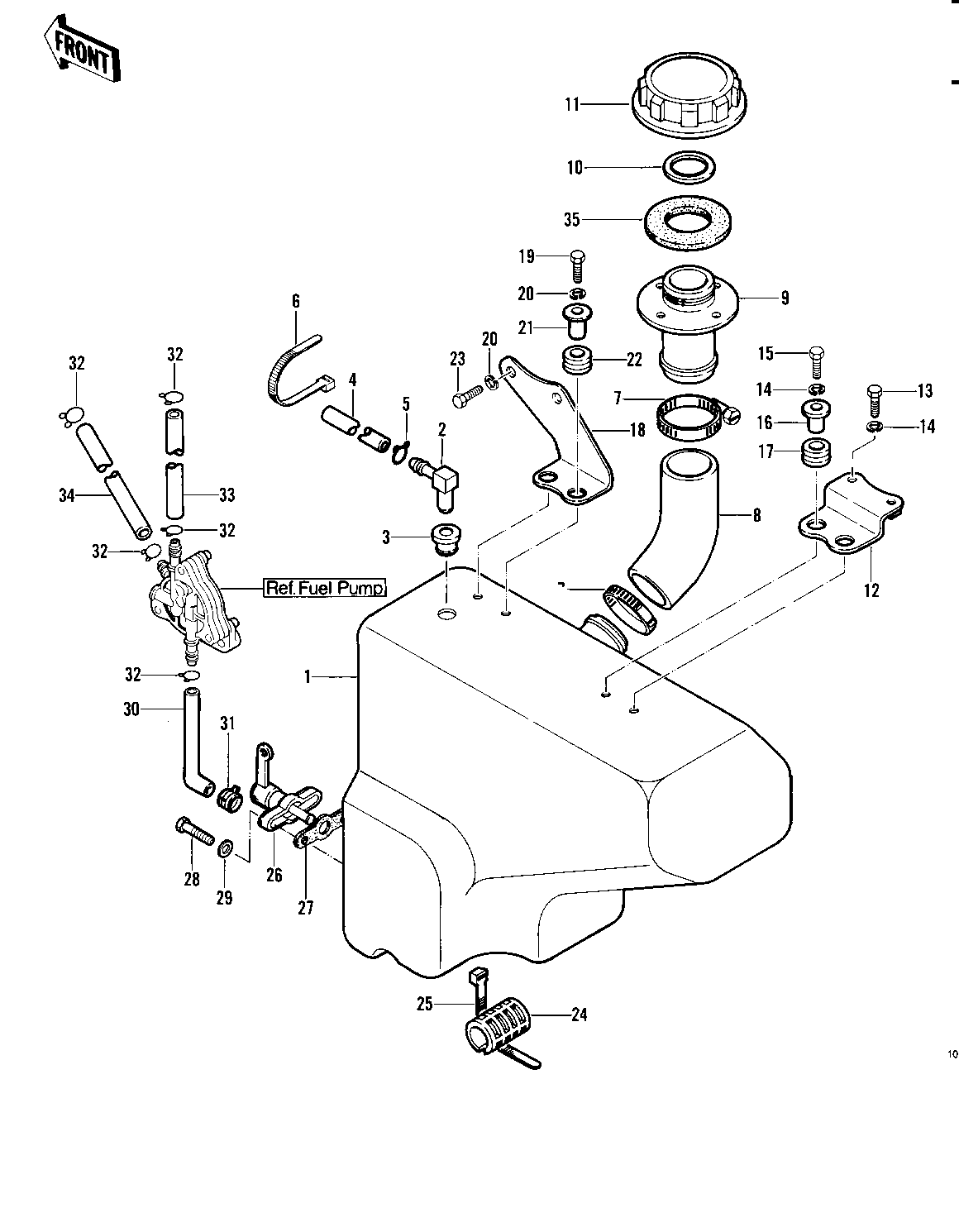

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
TANK-FUEL,GRAY | 1 | 51001-4005-8L | 1 | ||
TANK-FUEL,GRAY | 1 | 51001-4005-8L | 1 | ||
BREATHER | 2 | 14069-003 | 1 | ||
DAMPER,FUEL TANK | 3 | 92075-4029 | 1 | ||
TUBE-BREATHER | 4 | 92059-4027 | 1 | ||
CLAMP-PIPE | 5 | 92037-072 | 1 | ||
BAND | 6 | 92072-4004 | 5 | ||
HOSE CLAMP | 7 | 92037-3009 | 2 | ||
TUBE,TANK | 8 | 92059-4013 | 1 | ||
FILLER,FUEL TANK | 9 | 59231-3001 | 1 | ||
GASKET,FUEL TANK CAP | 10 | 11009-3020 | 1 | ||
CAP,FUEL TANK | 11 | 51049-3001 | 1 | ||
BRACKET-TANK | 12 | 32052-4007 | 1 | ||
BOLT-UPSET 6X14 | 13 | 112B0614 | 2 | ||
WASHER SPRING 6MM | 14 | 461F0600 | 4 | ||
BOLT-UPSET,6X20 | 15 | 112G0620 | 2 | ||
COLLAR | 16 | 92027-1045 | 2 | ||
DAMPER RUBBER | 17 | 92075-277 | 2 | ||
BRACKET-TANK | 18 | 32052-4006 | 1 | ||
BOLT-UPSET,6X20 | 19 | 112G0620 | 2 | ||
WASHER SPRING 6MM | 20 | 461F0600 | 4 | ||
COLLAR | 21 | 92027-1045 | 2 | ||
DAMPER RUBBER | 22 | 92075-277 | 2 | ||
BOLT-UPSET 6X14 | 23 | 112B0614 | 2 | ||
DAMPER RUBBER | 24 | 92075-084 | 2 | ||
BAND | 25 | 92072-3505 | 2 | ||
TAP-ASSY-FUEL | 26 | 51023-1115 | 1 | ||
GASKET,FUEL TAP | 27 | 11009-1135 | 1 | ||
BOLT-HEX HEAD,6X16 | 28 | 92001-114 | 2 | ||
WASHER-PLAIN | 29 | 92022-183 | 2 | ||
TUBE,6.5X11.5X120 | 30 | 92059-4015 | 1 | ||
CLAMP | 31 | 92037-4009 | 1 | ||
CLAMP,CARB CONECT HOS | 32 | 92037-056 | 5 | ||
TUBE,6.5X11.5X290 | 33 | 92059-4028 | 1 | ||
TUBE,6.5X11.5X350 | 34 | 92059-4004 | 1 | ||
WASHER-RUBBER | 35 | 92022-4024 | 1 |
