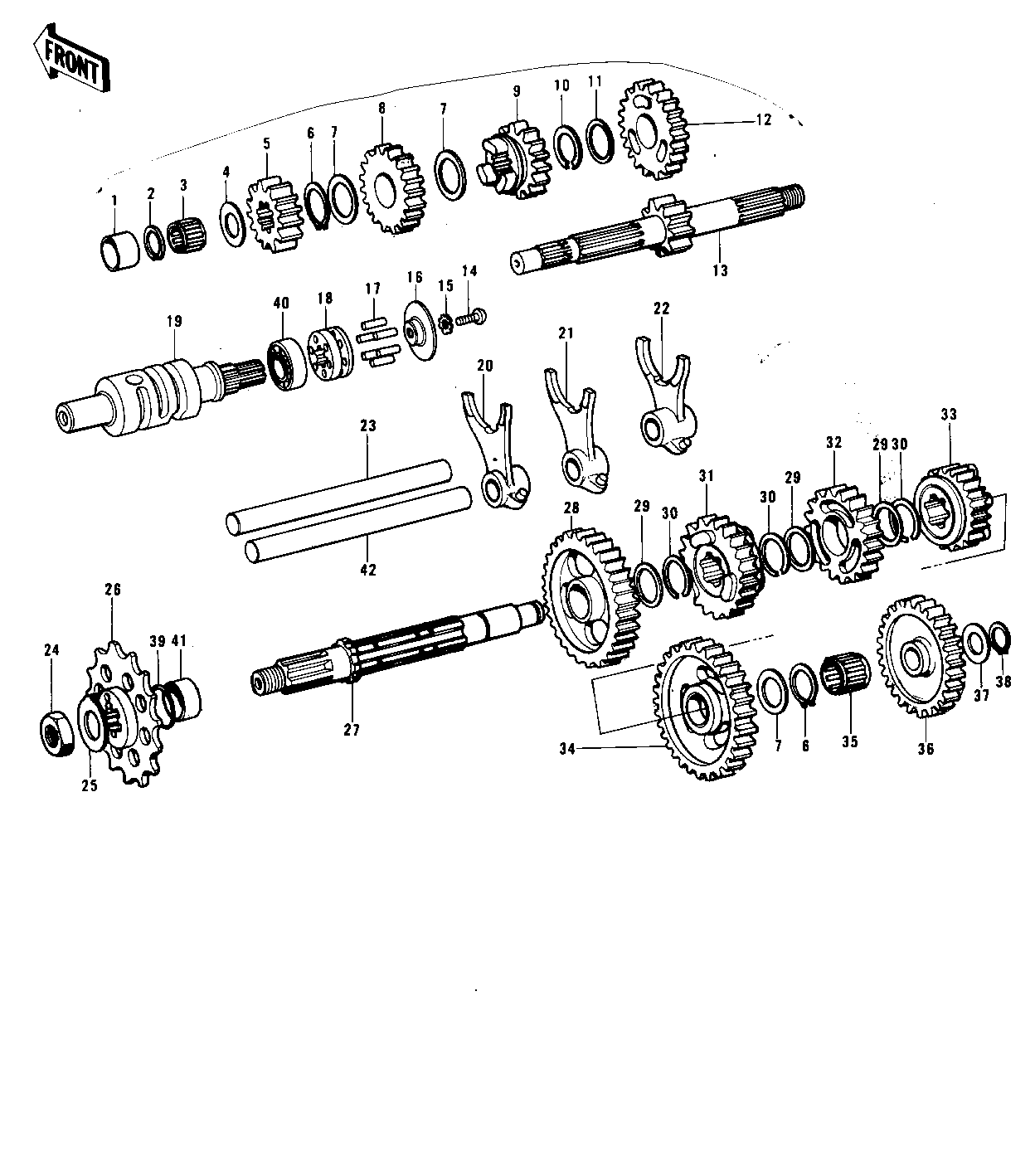

1973 F12MX - TRANSMISSION/CHANGE DRUM & FORKS ('73 F

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BUSHING 1 92028-132 1 O.D=30M/M
CIRCLIP 17MM 2 92033-009 1
BEARING,BALL,KT17231 3 92046-035 1 KT172313
WASHER,17.3X28X1.0 4 92022-255 1 I.D=17.3
2ND GEAR,DRIVE SHAFT 5 13130-035 1 12T
CIRCLIP,19MM 6 480J1900 2
WASHER 7 92022-252 3 I.D=20.5
4TH GEAR,DRIVE SHAFT 8 13134-019 1 17T
3RD GEAR,DRIVE SHAFT 9 13132-034 1 15T
CIRCLIP 10 92033-027 1 I.D=20.8
WASHER 11 92022-254 1 I.D=23.5
TOP GEAR,DRIVE SHAFT 12 13136-045 1 18T
SHAFT,DRIVE 13 13127-044 1 9T
SCREW 14 92011-031 1
WASHER LOCK 6MM 15 464H0600 1
HOLDER,CHANGE DRUM 16 13142-014 1
PIN,CHANG DRUM 17 92042-029 6
DISC,CHNG DRUM OPRTN 18 13145-003 1
DRUM,GEAR CHANGE 19 13141-037 1
FORK,SELECTOR 20 13140-055 1
FORK,SELECTOR 21 13140-056 1
FORK,SELECTOR 22 13140-057 1
ROD,CLUTCH RELEASE 23 13209-012 1 L=90M/M
NUT 18MM 24 92015-019 1
WASHER,LOCK,18MM 25 92024-067 1
ENGINE SPROCKET 15T 26 13144-050 1 STD
ENGINE SPROCKET 14T 26 13144-051 1 OPTION
2ND GEAR,OUTPUT SHAF 28 13131-042 1 24T
WASHER 29 92022-253 3 I.D=24.8
CIRCLIP 30 92033-026 3 I.D=22.5
4TH GEAR,OUTPUT SHAF 31 13135-023 1 17T
3RD GEAR,OUTPUT SHAF 32 13133-034 1 21T
TOP GEAR,OUTPUT SHAF 33 13137-028 1 17T
LOW GEAR,OUTPUT SHAF 34 13129-049 1 26T
BEARING-NEEDLE,KT202 35 92046-1170 1 KT202614
IDLE GEAR 36 13073-010 1 26T
WASHER-THRUST 37 92022-197 1 I.D=17.3
CIRCLIP 16MM 38 480J1600 1
"O" RING 39 92055-035 1
BALL BEARING,#6203ZC 40 601B6203Z 1
COLLAR-ENG SPROKET 41 92027-163 1
ROD,SHIFT 42 13209-013 1 L=99 M/M
