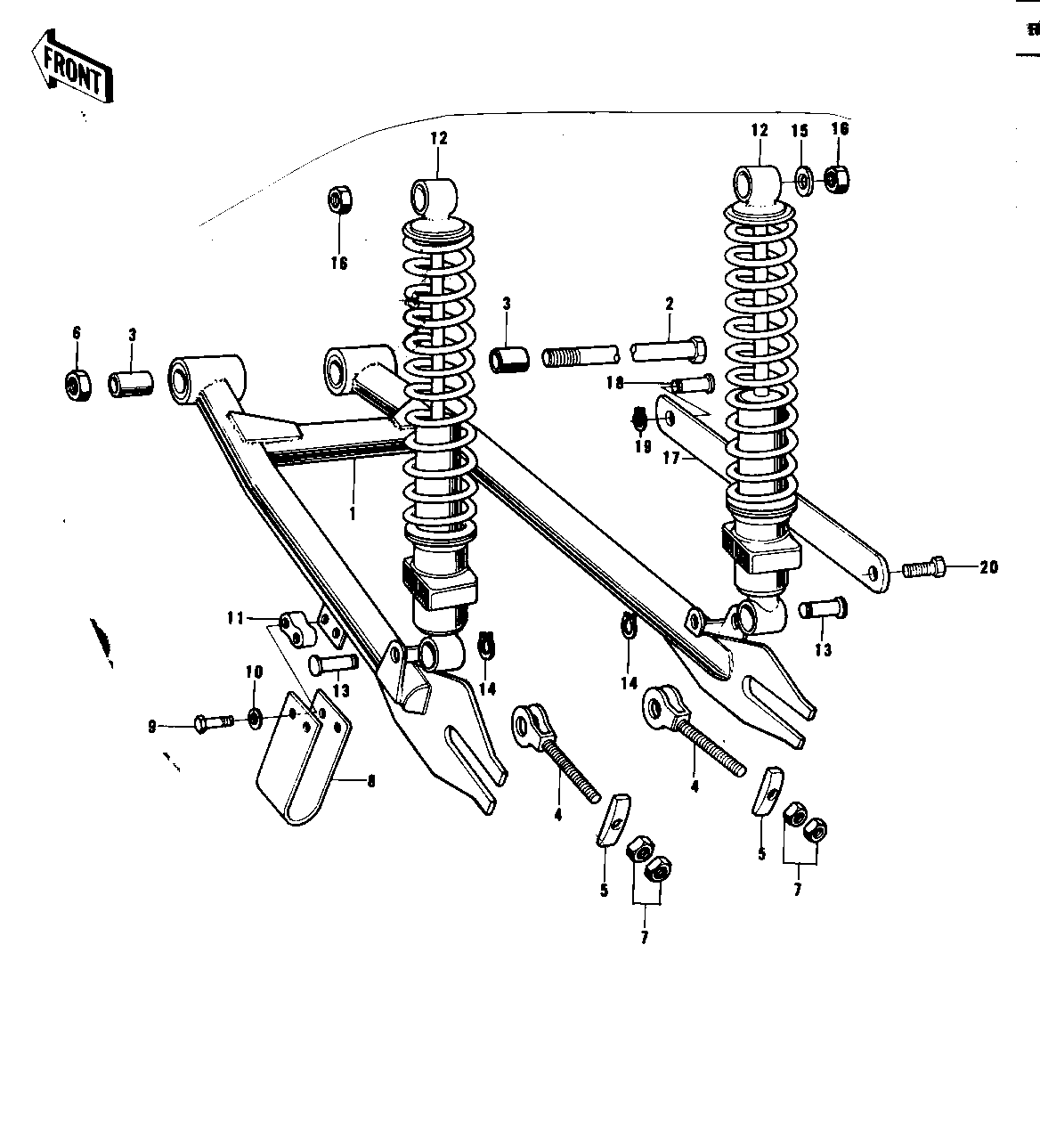

1973 F12MX - SWING ARM/SHOCK ABSORBERS ('73 F12MX 450

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ARM,SWINGING 1 33001-056 1
SHAFT,SWING ARM PIVO 2 33032-042 1
BUSHING,SWING ARM 3 33033-012 2
ADJUSTER,CHAIN 4 33040-055 2
PLATE,CHAIN ADJUSTER 5 33041-003 2
NUT,12MM 6 92019-017 1
NUT,8MM 7 92019-018 6
GUARD,CHAIN 8 55020-011 1
BOLT,8X55 9 92001-1386 2
WASHER PLAIN 8MM 10 411B0800 4
COLLAR,CHAIN GUARD 11 92027-196 1
SHOCK ABSBR RR 12 45014-087 2
PIN,SWING ARM 13 92043-099 2
CIRCLIP 10MM 14 482J0100 2
WASHER-PL-10.5X26X2. 15 92022-044 1
NUT,10MM 16 92019-016 2
TORQUE LINK,REAR 17 43007-038 1
PIN,TORQUE LINK 18 92043-100 1
CIRCLIP 10MM 19 482J0100 1
BOLT,TORQUE LINK FIT 20 92003-136 1
