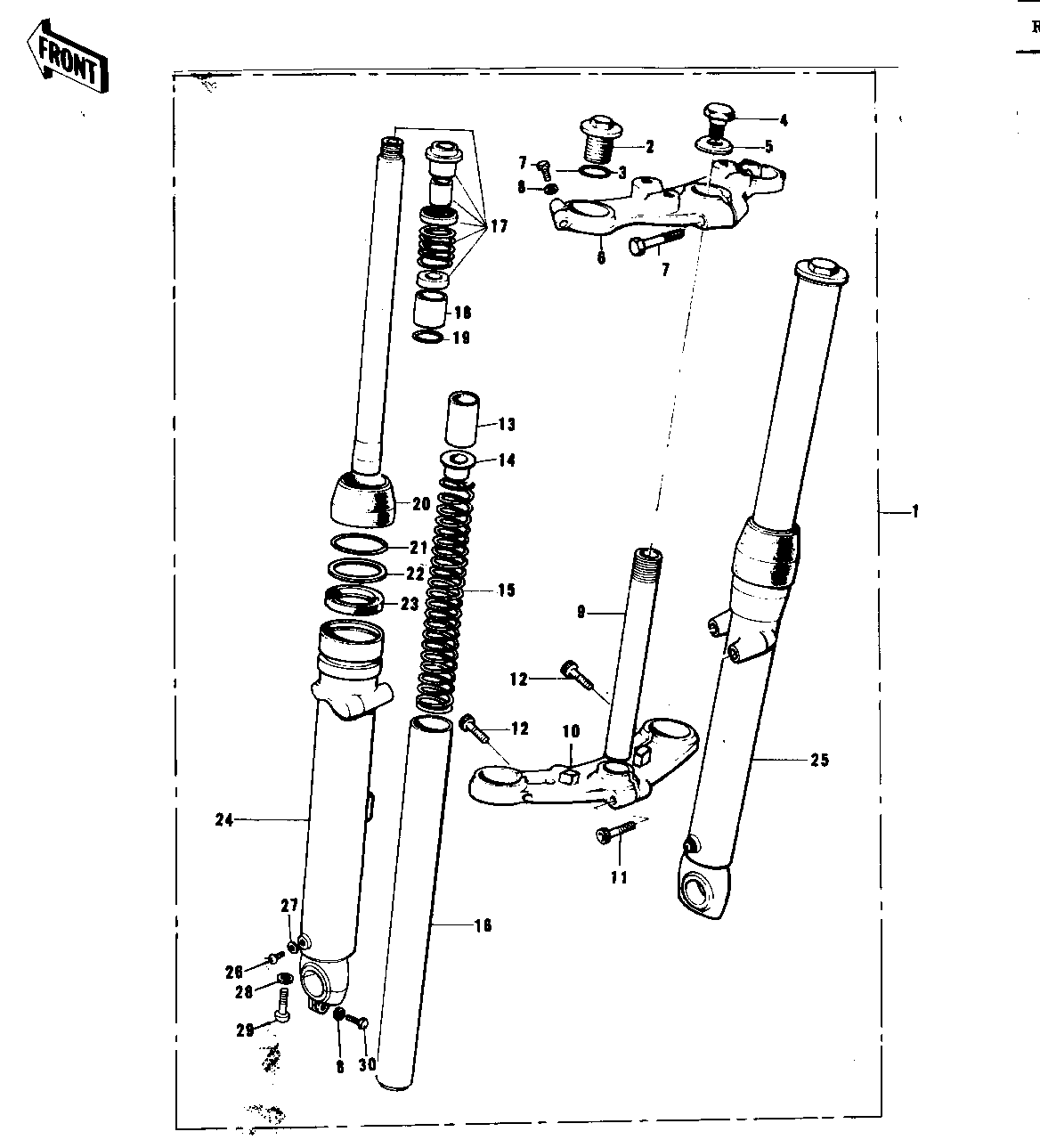

1973 F12MX - FRONT FORK ('73 F12MX 450)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
UNAVAILABLE IN PRICE BOOK | 1 | 44001-120 | 1 | ||
BOLT-FORK FITTING | 2 | 44041-037 | 2 | ||
"O" RING,FORK TOP | 3 | 92055-1012 | 2 | ||
BOLT STRNG STEM HEAD | 4 | 44041-007 | 1 | ||
WASHER STRNG STEM HD | 5 | 44043-016 | 1 | ||
HEAD,STEERING STEM | 6 | 44039-059 | 1 | ||
BOLT-HEX HEAD.8M/M | 7 | 44041-045 | 3 | ||
WASHER SPRING 8MM | 8 | 461F0800 | 4 | ||
SHAFT,STEERING STEM | 9 | 44052-006 | 1 | ||
STEM,STEERING | 10 | 44038-007 | 1 | ||
BOLT-STEERING STEM | 11 | 44041-043 | 1 | ||
BOLT | 12 | 44041-061 | 4 | ||
SPACER,FORK SPRING | 13 | 44028-030 | 2 | ||
GUIDE-FORK SPRING | 14 | 44029-019 | 2 | ||
SPRING,FORK | 15 | 44026-050 | 2 | ||
TUBE,FORK INNER | 16 | 44013-044 | 2 | ||
CYLINDER-FORK | 17 | 44022-015 | 2 | ||
PISTON FORK | 18 | 44018-001 | 2 | ||
CIRCLIP FORK PISTON | 19 | 44044-008 | 2 | ||
DUST SHIELD-FORK | 20 | 44010-019 | 2 | ||
CIRCLIP OIL SEAL FIT | 21 | 44044-005 | 2 | ||
WASHER OIL SEAL FIT | 22 | 44043-023 | 2 | ||
OIL SEAL,FORK | 23 | 44009-020 | 2 | ||
TUBE,LH,FORK OUTER | 24 | 44005-051 | 1 | ||
TUBE,RH,FORK OUTER | 25 | 44006-049 | 1 | ||
BOLT-STEERING STEM | 26 | 44041-043 | 2 | ||
GASKET | 27 | 44045-045 | 2 | ||
GASKET,FORK CYLINDER | 28 | 44045-057 | 2 | ||
BOLT-FORK CYLINDER | 29 | 44041-040 | 2 | ||
BOLT | 30 | 44041-060 | 1 |
