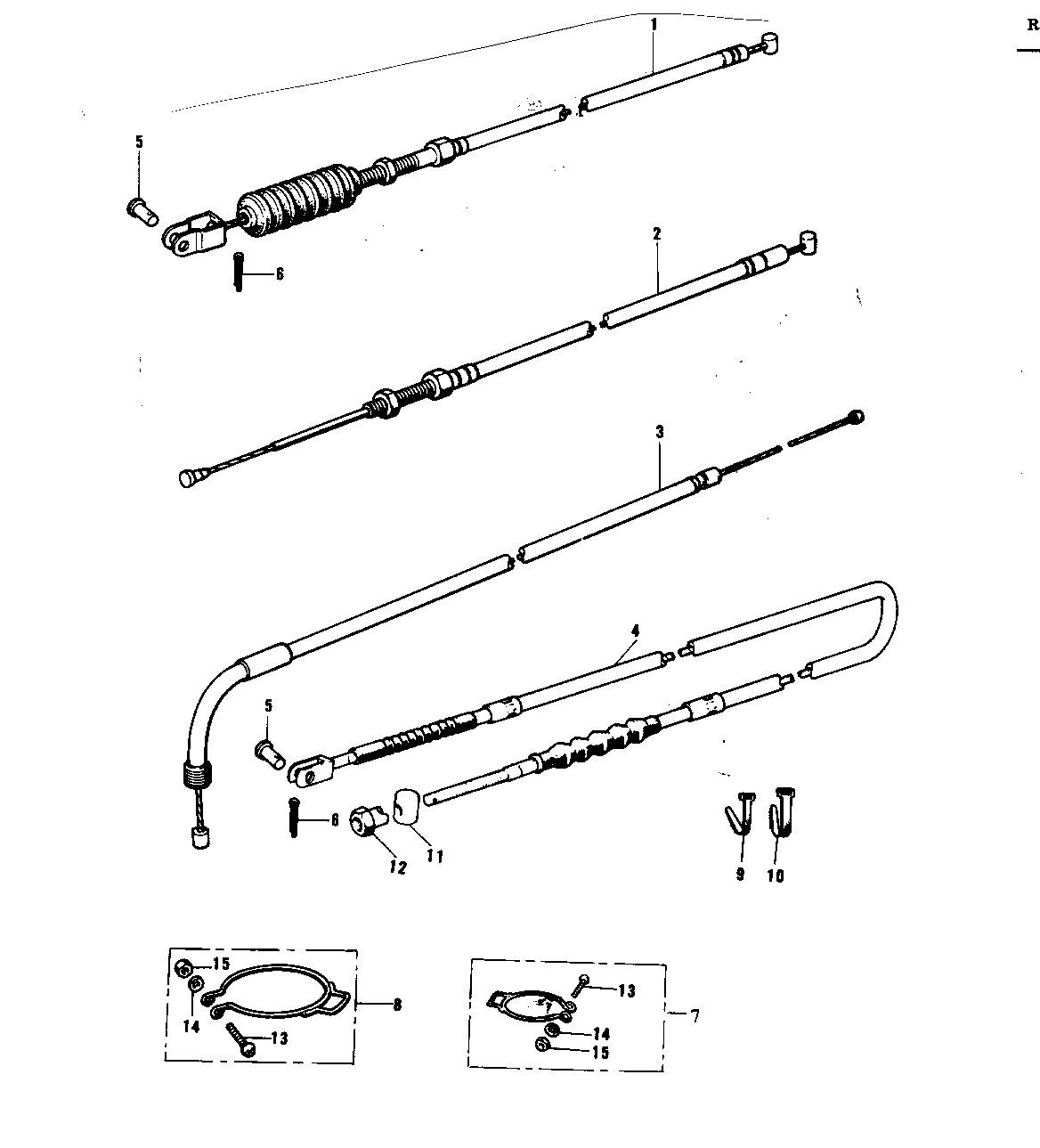

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CABLE,FRONT BRAKE 1 54005-075 1
CABLE,CLUTCH 2 54011-056 1
CABLE,THROTTLE 3 54012-106 1
CABLE,REAR BRAKE 4 54022-023 1
PIN R BRK CABLE JOIN 5 92043-034 2
PIN COTTER 2.0X15 6 550D2015 2
GUIDE,CABLE 7 54030-010 1
GUIDE,CABLE 8 54030-009 1
BAND,SHORT 9 92072-030 1
BAND,MIDDLE 10 92072-031 2
PIN-BRAKE ROD 11 92043-065 1
NUT-BRAKE ROD ADJUST 12 92015-042 1
SCREW PAN HEAD 5X22 13 220B0522 2
WASHER PLAIN 5MM 14 411B0500 2
NUT,5MM 15 311B0500 2
