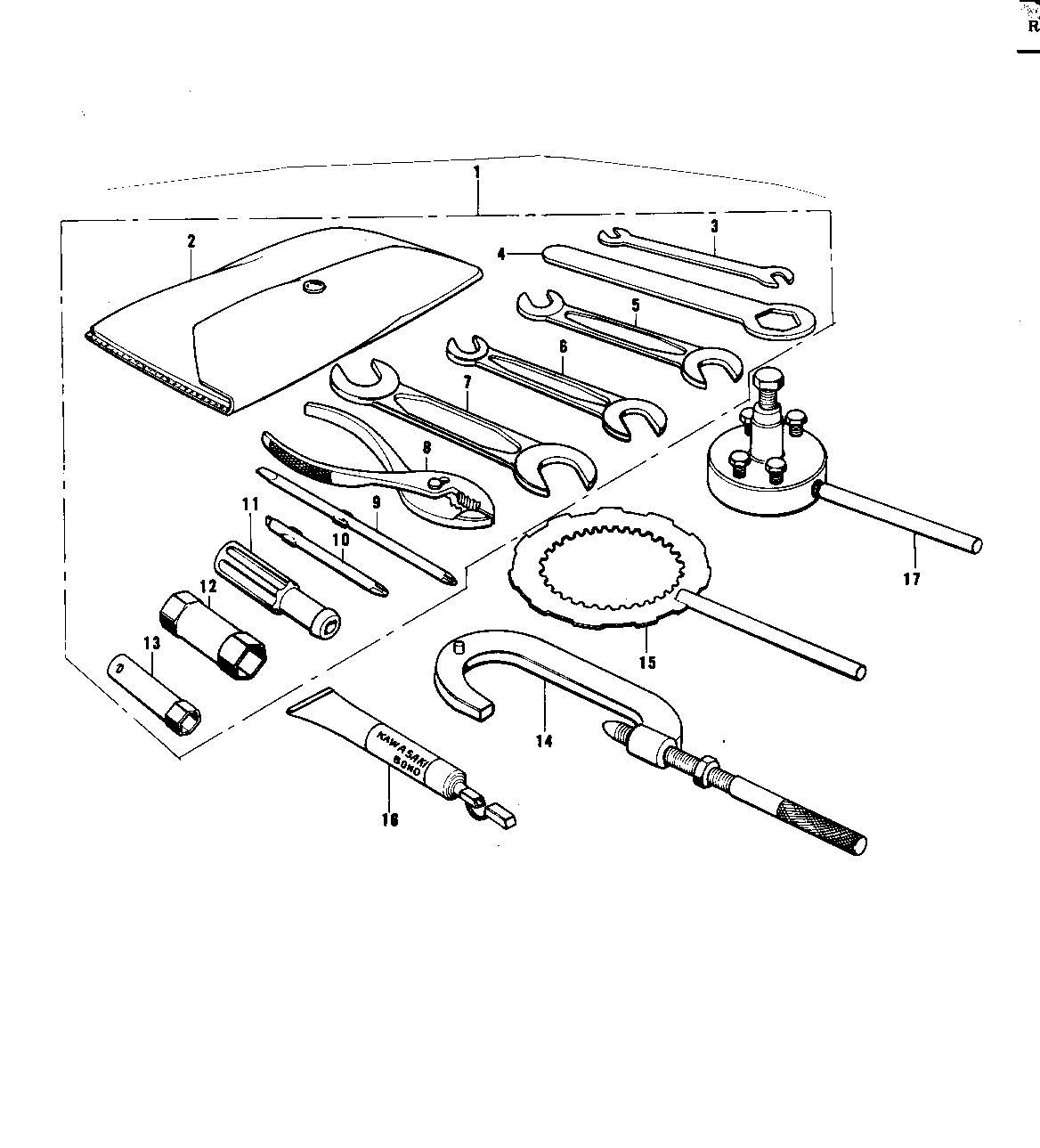

1973 F12MX - OWNER TOOLS/SPECIAL SERVICE TOOLS ('73 K

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
UNAVAILABLE IN PRICE BOOK 1 56007-020 1
BAG,TOOL 2 56008-008 1
92108-011 (Canada) 3 92108-004 1
92110-1150 (Canada) 4 92109-003 1
UNAVAILABLE IN PRICE BOOK 5 960B1013 1
*** N.L.A.*** (Canada) 6 960B1014 1
*** N.L.A.*** (Canada) 7 960B1719 1
92112-003 (Canada) 8 92112-001 (1
UNAVAILABLE IN PRICE BOOK 8 92112-002 1
TOOL-DRIVER 9 92107-1052 1
SCREW DRIVER #3 PHLI 10 92107-005 1
92106-1001 (Canada) 11 92106-002 1
92110-012 (Canada) 12 92110-009 1
WRENCH BOX 10MM 13 92110-007 1
57001-1243 (Canada) 14 56019-040 1 OPTION
57001-1243 (Canada) 15 56019-067 1 OPTION
LIQUID GASKET 16 92104-002 1 OPTION
UNAVAILABLE IN PRICE BOOK 17 56019-068 1
