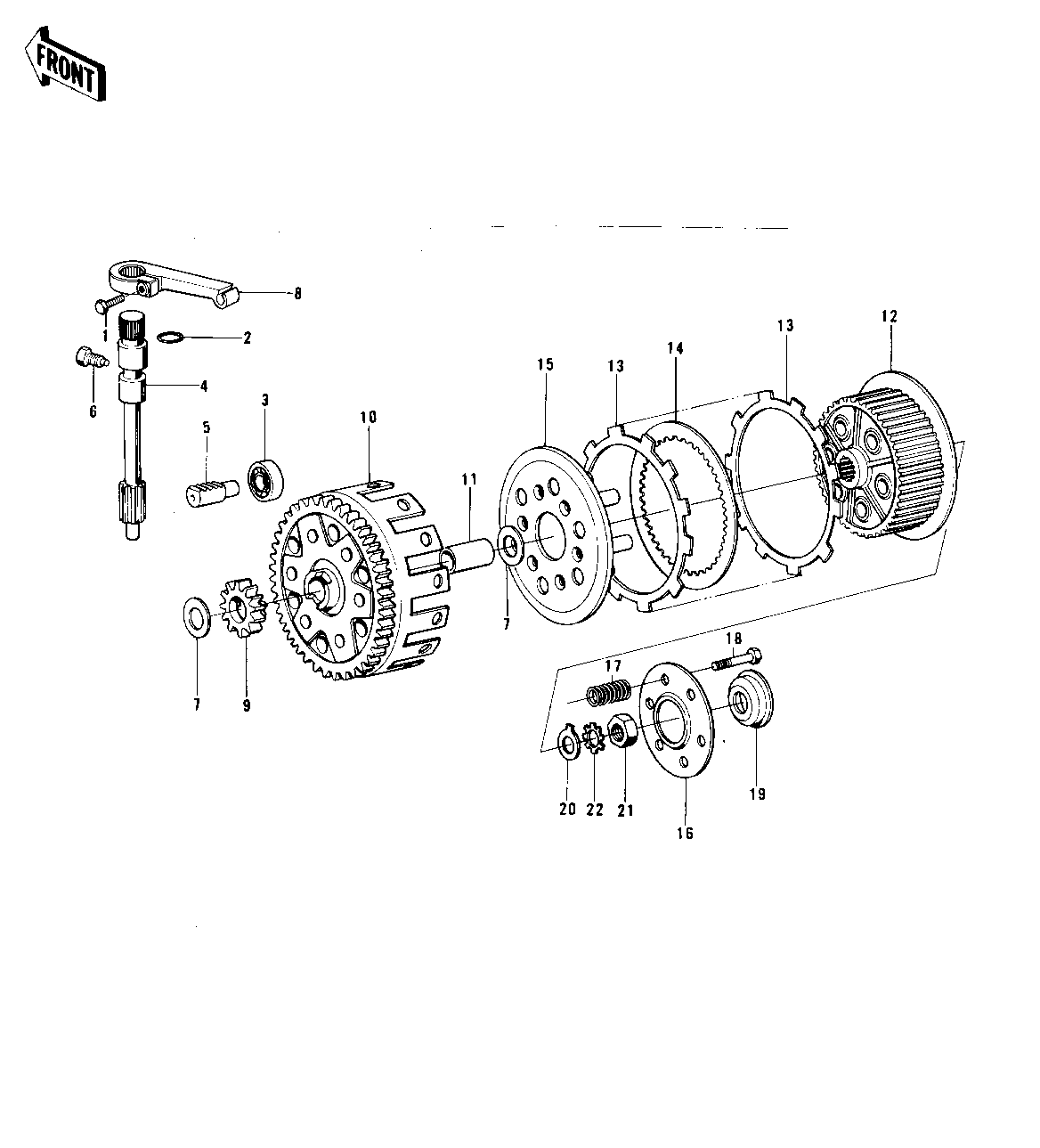

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-UPSET | 1 | 112G0618 | 1 | ||
BOLT-UPSET | 1 | 112G0618 | AL | ||
"0" RING, 10MM | 2 | 670B2010 | 1 | ||
BEARING,BALL #627 | 3 | 92045-026 | 1 | ||
SHAFT,CLUTCH RELEASE | 4 | 13106-006 | 1 | ||
ROD,CLUTCH PUSH | 5 | 13116-025 | 1 | ||
BOLT,CLUTCH RELEASE | 6 | 92003-130 | 1 | ||
WASHER-CLUTCH THRUST | 7 | 92022-168 | 2 | ||
LEVER,CLUTCH RELEASE | 8 | 13103-022 | 1 | ||
PINION,KICKSTARTER | 9 | 13075-009 | 1 | 15T | |
HOUSHING,CLUTCH | 10 | 13095-038 | 1 | ||
BUSHING | 11 | 92028-105 | 1 | ||
HUB,CLUTCH | 12 | 13087-035 | 1 | ||
PLATE,CLUTCH FRICTIO | 13 | 13088-038 | 6 | ||
PLATE,CLUTCH STEEL | 14 | 13089-024 | 5 | ||
WHEEL,CLUTCH | 15 | 13086-014 | 1 | ||
HOLDER,CLUTCH SPRING | 16 | 13091-012 | 1 | ||
SPRING CLUTCH | 17 | 92081-042 | 6 | ||
BOLT-UPSET | 18 | 112G0618 | 6 | ||
BOLT-UPSET | 18 | 112G0618 | AL | ||
PUSHER,CLUTCH RELEAS | 19 | 13114-008 | 1 | ||
WASHER, | 20 | 92024-052 | 1 | ||
NUT | 21 | 92015-064 | 1 | ||
WASHER,LOCK,14MM | 22 | 464H1400 | 1 |
