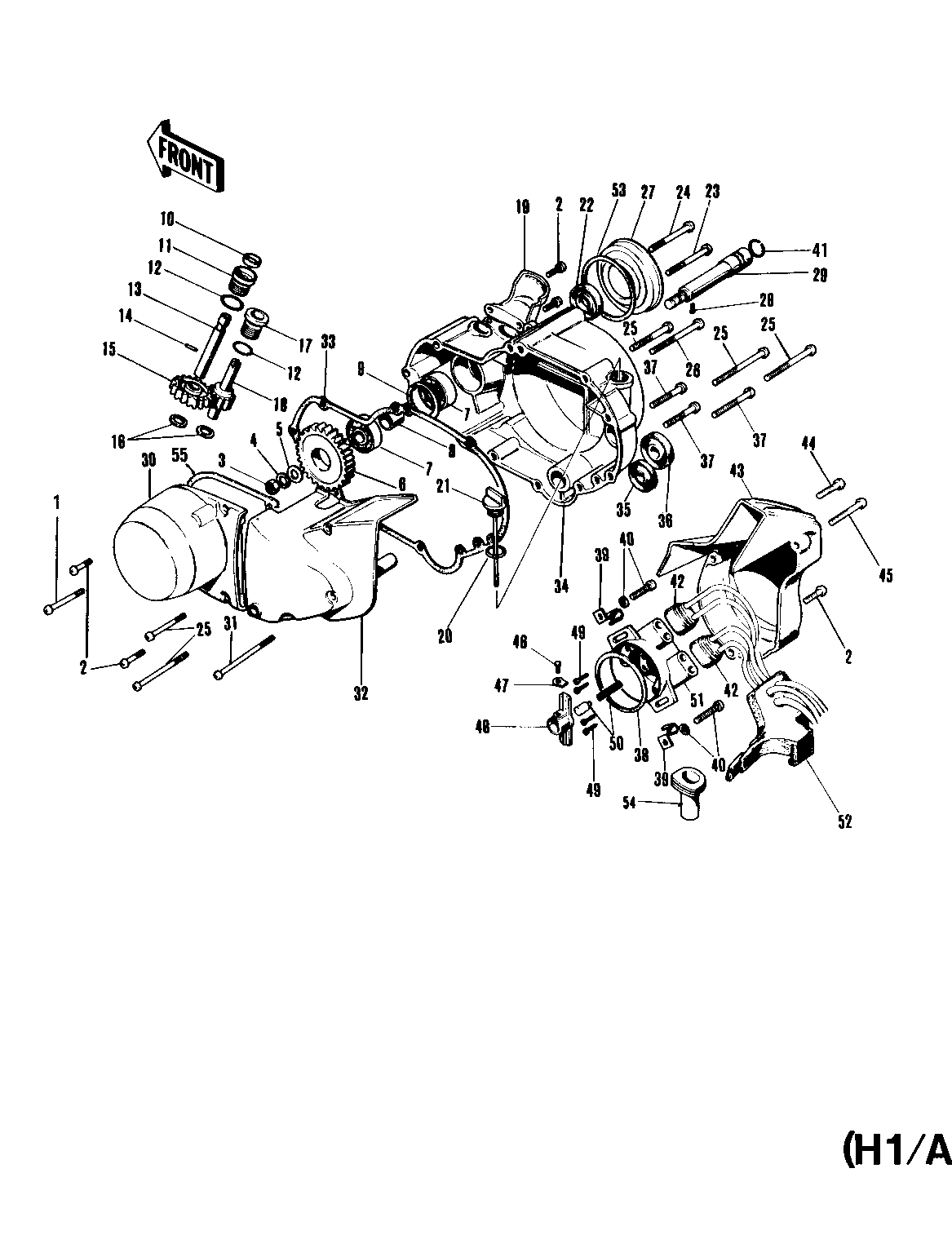

1975 H1-F - ENGINE COVERS (H1/A/C)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW PAN HEAD 6X40 1 220B0640 1
SCREW PAN HEAD 6X20 2 220B0620 5
NUT 6MM 3 311B0600 1
WASHER SPRING 6MM 4 461F0600 1
WASHER,6.5X16X2 5 92022-1565 1
GEAR DISTRIBUTOR 6 21147-001 1
BEARING-BALL 7 92045-1235 2
COLLAR 8 92027-051 1
CIRCLIP Z8MM 9 481J2800 1
OIL SEAL 10 92054-004 1
BUSH 11 92028-075 1
"0" RING 12 92055-025 2
SHAFT TACHOMETER GEAR 13 13226-004 1
PIN,DOWEL 14 92042-035 1
GEAR TACHOMETER 15 13224-005 1
WASHER THRUST 16 92026-026 2
BUSH 17 92028-074 1
GEAR OIL PUMP 18 16085-011 1
COVER OIL PUMP LEVER 19 14030-024 1
"0" RING,20MM 20 670B2020 1
PLUG-OIL FILLER 21 16115-017 1
PLUG-OIL FILLER 21 16115-017 1
OIL SEAL TB15256 22 92049-008 1
SCREW PAN HEAD 6X25 23 220B0625 1
SCREW PAN HEAD 6X80 24 220B0680 2
SCREW PAN HEAD 6X55 25 220B0655 5
SCREW PAN HEAD 6X60 26 220B0660 1
INSULATOR-DISBRIBUTOR 27 21144-002 1
PIN DOWEL 3X8 28 551A0308 1
SHAFT DISTRIBUTOR 29 21143-001 1 -E/NO. 8800
SHAFT-DISBRIBUTOR 29 21143-002 1 E/NO. 8801-
COVER L.H ENGINE 30 14031-030 1
SCREW PAN HEAD 6X85 31 220B0685 1
COVER,CHN CASE,BUFF 32 14026-024-80 1
COVER,CHN CASE,BUFF 32 14026-024-80 1
GASKET R.H ENGINE COV 33 14046-014 1
COVER R.H ENGINE 34 14032-042 1
OIL SEAL SB12205 35 92049-004 1
OIL SEAL SB16244 36 92049-002 1
SCREW PAN HEAD 6X30 37 220B0630 3
GASKET 38 92065-048 1
CLAMP DISTRIBUTOR 39 21149-001 2
SCREW-PAN-WS-CROS 40 223B0410 2
CIRCLIP 41 92036-016 1
GROMMET DISTRIBUTOR 42 92071-031 2
COVER OIL PUMP 43 14030-025 1
SCREW PAN HEAD 6X45 44 220B0645 1
SCREW PAN HEAD 6X100 45 220B06100 1
SCREW 4X16 46 92011-016 1
WASHER LOCK 4MM 47 92024-013 1
ROTOR-DISTRIBUTOR 48 21142-003 1 USE FOR 21143-001
ROTOR-DISTRIBUTOR 48 21142-002 1 USE FOR 21143-002
SCREW CORD FIT 49 92100-001 4
BRUSH CARBON 50 21088-008 1
CAP DISTRIBUTOR 51 21141-001 1
GROMMET TENSION CORD 52 92071-040 1 -E/NO. 8800
GROMMET TENSION CORD 52 92071-043 1 E/NO. 8801-
GASKET 53 92065-072 1
GROMMET DRAIN 54 16116-005 1 E/NO. 8801-
GASKET,L.H ENG COVER 5 14045-022 1
