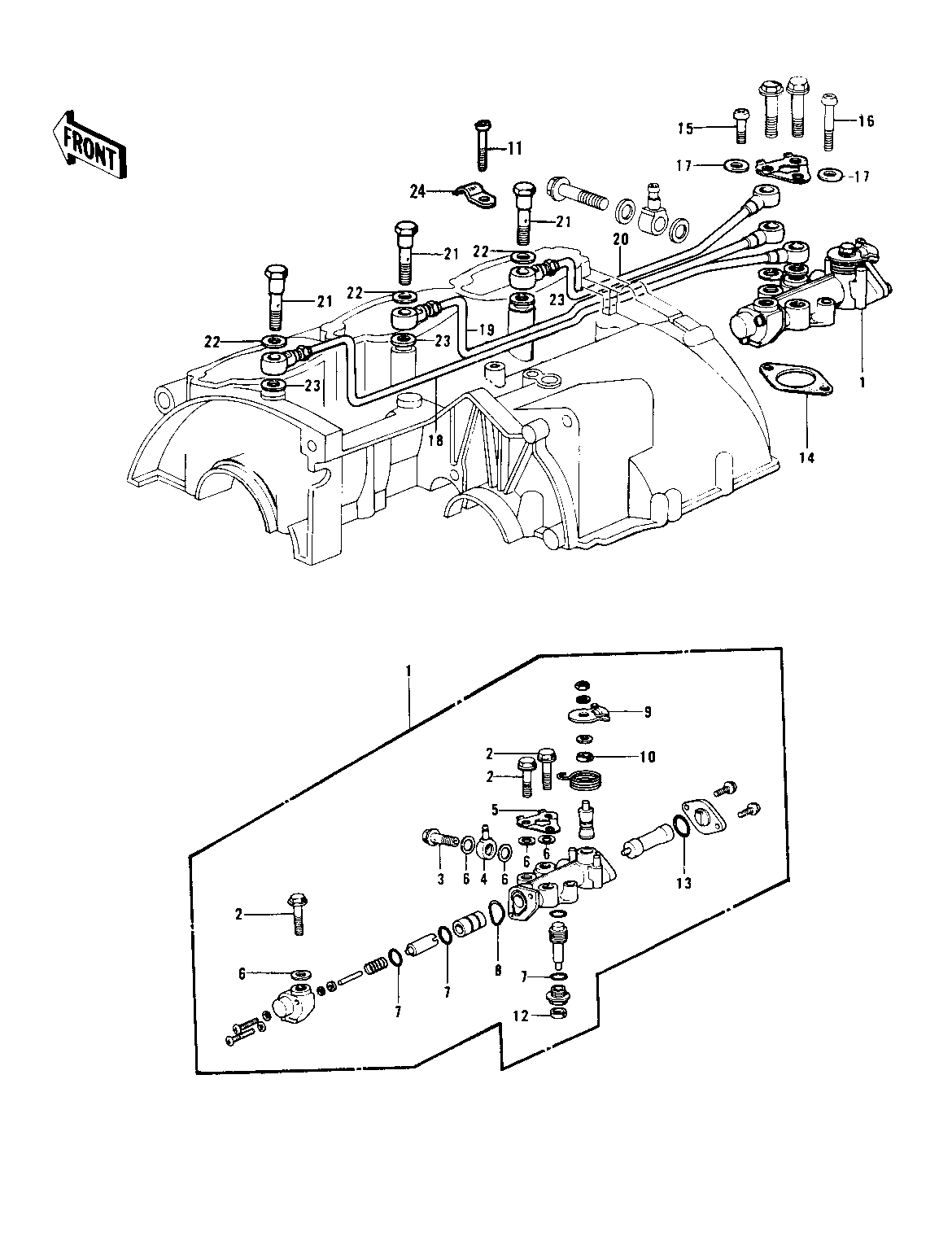

1975 H1-F - OIL PUMP ('69-'72 H1/A/B/C)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
OIL PUMP ASSY 1 16082-040 1
BOLT BANJO 2 92060-008 3
BOLT BANJO 3 92060-009 1
CONNECTOR BANJO 4 92061-015 1
WASHER,OIL PUMP LOCK 5 92024-058 1
WASHER OIL PUMP BANJO 6 92022-077 5
"0" RING,OIL PUMP SHT 7 16090-002 3
"0" RING,UPPER CAP 8 16088-002 1
LEVER-OIL PUMP CABLE 9 16096-003 1
SEAL-OIL,CAMSHAFT,"X" 10 92049-1294 1
SCREW PAN HEAD 6X10 11 220B0610 1
OIL SEAL OIL PUMP SHT 12 16091-001 1
"0" RING,LOWER CAP 13 16090-003 1
GASKET,OIL PUMP 14 11060-1160 1
SCREW-PAN-CROS 15 220B0514 1
SCREW PAN CROSS,5X28 16 220B0528 1
WASHER OIL PUMP 17 92022-037 2
UNAVAILABLE IN PRICE BOOK 18 16134-004 1 NO LONGER AVAILABLE
PIPE SET-OIL,L.H 18 16138-001 (1 NO LONGER AVAILABLE
PIPE OIL 18 16134-007 1 NO LONGER AVAILABLE
UNAVAILABLE IN PRICE BOOK 19 16134-005 1 NO LONGER AVAILABLE
PIPE SET-OIL,CENTER 19 16138-002 (1 NO LONGER AVAILABLE
PIPE OIL 19 16134-008 1 NO LONGER AVAILABLE
UNAVAILABLE IN PRICE BOOK 20 16134-006 1 NO LONGER AVAILABLE
PIPE SET-OIL,R.H 20 16138-003 (1 NO LONGER AVAILABLE
PIPE OIL 20 16134-009 1 NO LONGER AVAILABLE
BOLT BANJO 21 92001-061 3 USE FOR 16134-004/005/006
BOLT-BANJO,CR 21 92060-010-79 3 USE FOR 16134-007/008/009
GASKET CHECK VALVE 22 92065-023 3 USE WITH 92001-061
GASKET CHECK VALVE 22 92065-058 3 USE WITH 92060-010-79
GASKET CHECK VALVE 23 92065-023 3
HOLDER OIL PIPE 24 16068-004 1
