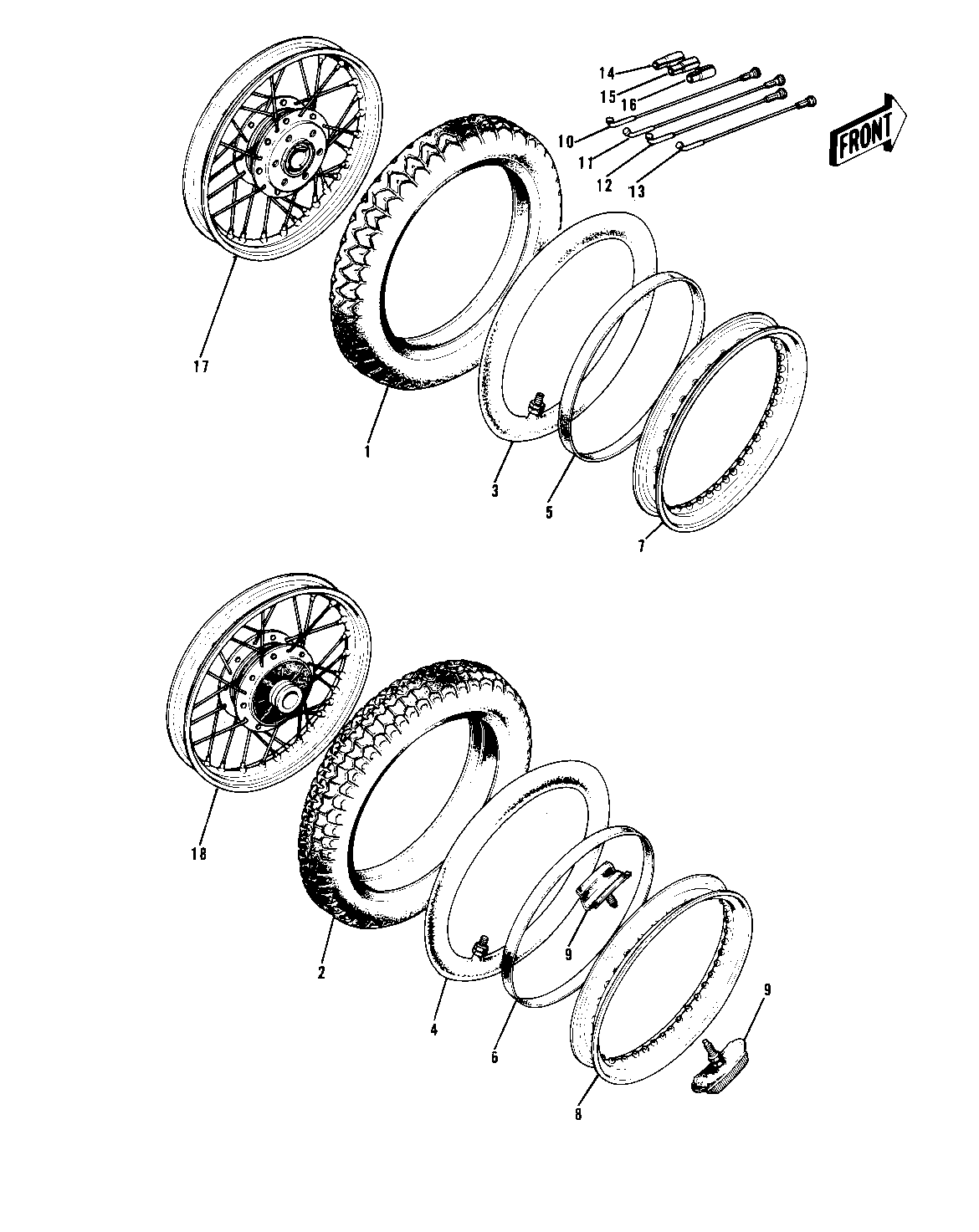

1975 H1-F - WHEELS/TIRES ('69-'72 H1/A/B/C)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
UNAVAILABLE IN PRICE BOOK 1 41020-004 1
TIRE 325H-19 F6B F 1 41021-038 1
UNAVAILABLE IN PRICE BOOK 2 41021-011 1
TIRE 400H-18 K87 R 2 41021-039 1
*** N.L.A.*** (Canada) 3 41022-030 1
TUBE,3.0/3.25/3.60-19 3 41022-1019 1
TUBE 350/375/410-18 4 41022-031 1
BAND RIM 5 41023-015 1
BAND,RIM,4.00/5.10-18 6 41023-1006 1
RIM 1.85BX19W 7 41025-056 1 H1/A/C
RIM,1.8BX19W 7 41025-051 1 H1-B
RIM-2-15BX18W 8 41025-058 1
PROTECTOR-BEAD 1.85B 9 41024-007 2
SPOKE-ASY,FR INNER 10 41027-044 20 H1/A/C
SPOKE-ASY,FR INNER 10 41027-042 20 H1-B
SPOKE-ASY,FR OUTER 11 41028-043 20 H1/A/C
SPOKE-ASY,FR OUTER 11 41028-041 20 H1-B
SPOKE-ASY,RR INNER 12 41027-047 20
SPOKE-ASY,RR OUTER 13 41028-046 20
WEIGHT,BALANCE,10G 14 41075-1007 AR
WEIGHT,BALANCE,20G 15 41075-1008 AR
WEIGHT,BALANCE,30G 16 41075-1009 AR
WHEEL ASSY FRONT 17 41074-006 1 H1/A/C
WHEEL ASSY-FRONT 17 41074-022 1 H1-B
WHEEL ASSY REAR 18 42048-008 1
WHEEL ASSY,REAR 18 42048-021 1
