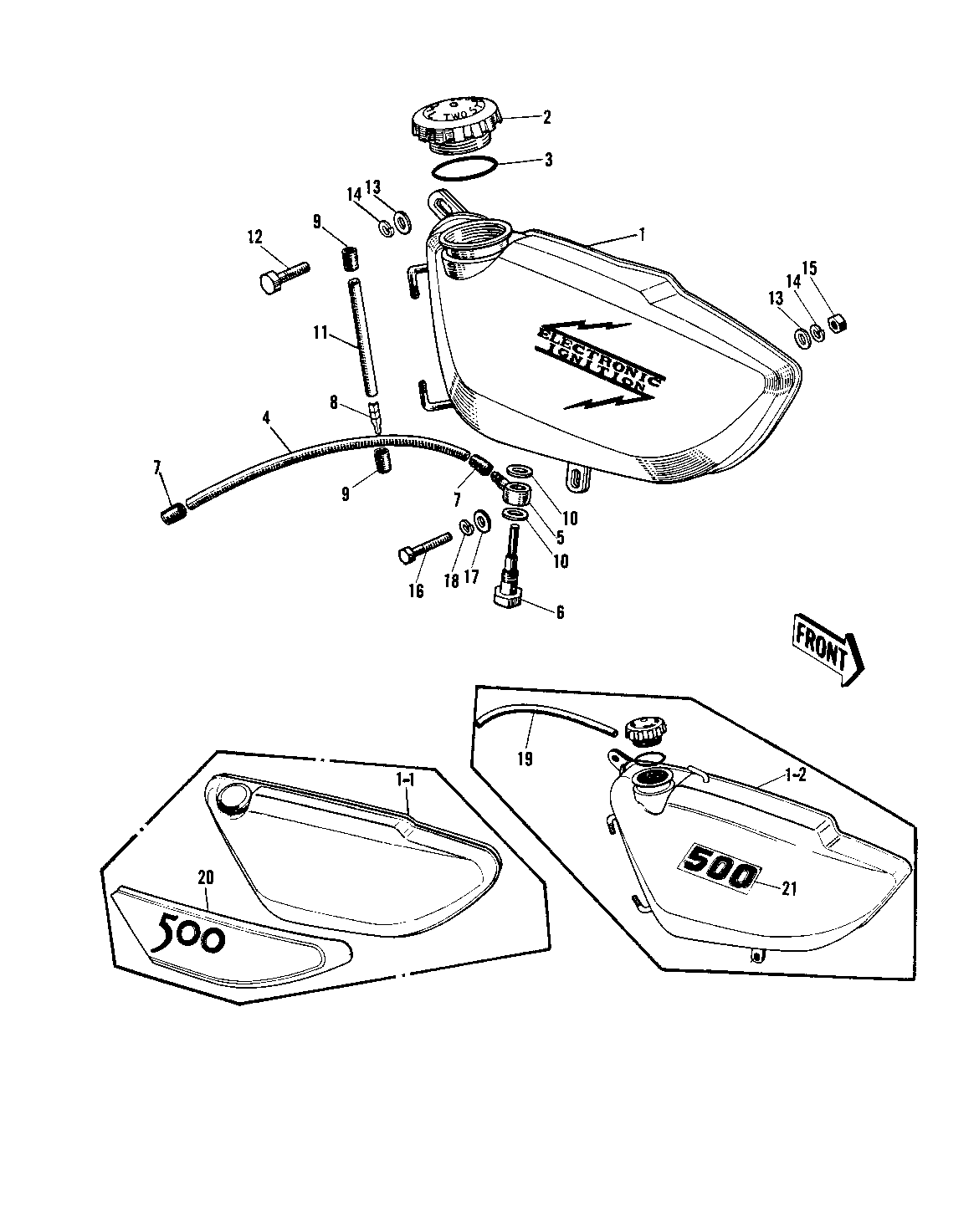

1975 H1-F - OIL TANK ('69-'72 H1/A/B/C)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| TANK OIL WHITE | 1 | 52001-015-19 | 1 | 1969 H1 | |
| TANK-OIL,C.RED | 1 | 52001-028-24 | 1 | 1970 H1 | |
| TANK-OIL,C.RED | 1 | 52001-028-24 | 1 | 1970 H1 | |
| TANK-OIL,P.GRAY | 1 | 52001-028-47 | 1 | 1970 H1 | |
| TANK-OIL,C.BLUE | 1-1 | 52001-015-58 | 1 | H1-A | |
| TANK-OIL,P.C.ORANGE | 1-2 | 52001-028-67 | 1 | H1-B/C | |
| CAP OIL TANK | 2 | 52003-009 | 1 | H1/A | |
| CAP OIL TANK | 2 | 52003-009 | 1 | H1-B/C | |
| "0" RING,36MM | 3 | 670B3036 | 1 | ||
| PIPE OIL TANK | 4 | 92059-021 | 1 | ||
| CONNECTOR BANJO | 5 | 92061-003 | 1 | ||
| BOLT OIL TANK BANJO | 6 | 92060-001 | 1 | ||
| SPRING PIPE CLAMP B | 7 | 92081-027 | 2 | ||
| GAUGE OIL LEVEL | 8 | 52005-004 | 1 | ||
| CLAMP OIL LEVEL PIPE | 9 | 92037-040 | 2 | ||
| GASKET,10,2X15X1.5T | 10 | 11009-1146 | 2 | ||
| GASKET,10,2X15X1.5T | 10 | 11009-1146 | 2 | ||
| TUBE-VINYL 6X95 | 11 | 700Q0695 | 2 | ||
| BOLT-SMALL-UPSET,8X18 | 12 | 115G0818 | 1 | ||
| WASHER PLAIN 8MM | 13 | 411B0800 | 2 | ||
| WASHER SPRING 8MM | 14 | 461F0800 | 2 | ||
| NUT,8MM | 15 | 311B0800 | 1 | ||
| BOLT-UPSET | 16 | 112G0660 | 1 | ||
| WASHER PLAIN 6MM | 17 | 411B0600 | 1 | ||
| WASHER SPRING 6MM | 18 | 461F0600 | 1 | ||
| TUBE-VINYL 5X470 | 19 | 700Q05470 | 1 | H1-B/C | |
| EMBLEM-OIL TANK | 20 | 56018-037 | 1 | H1-A | |
| EMBLEM-SIDE COVER | 21 | 56018-098 | 1 | H1-B/C |
