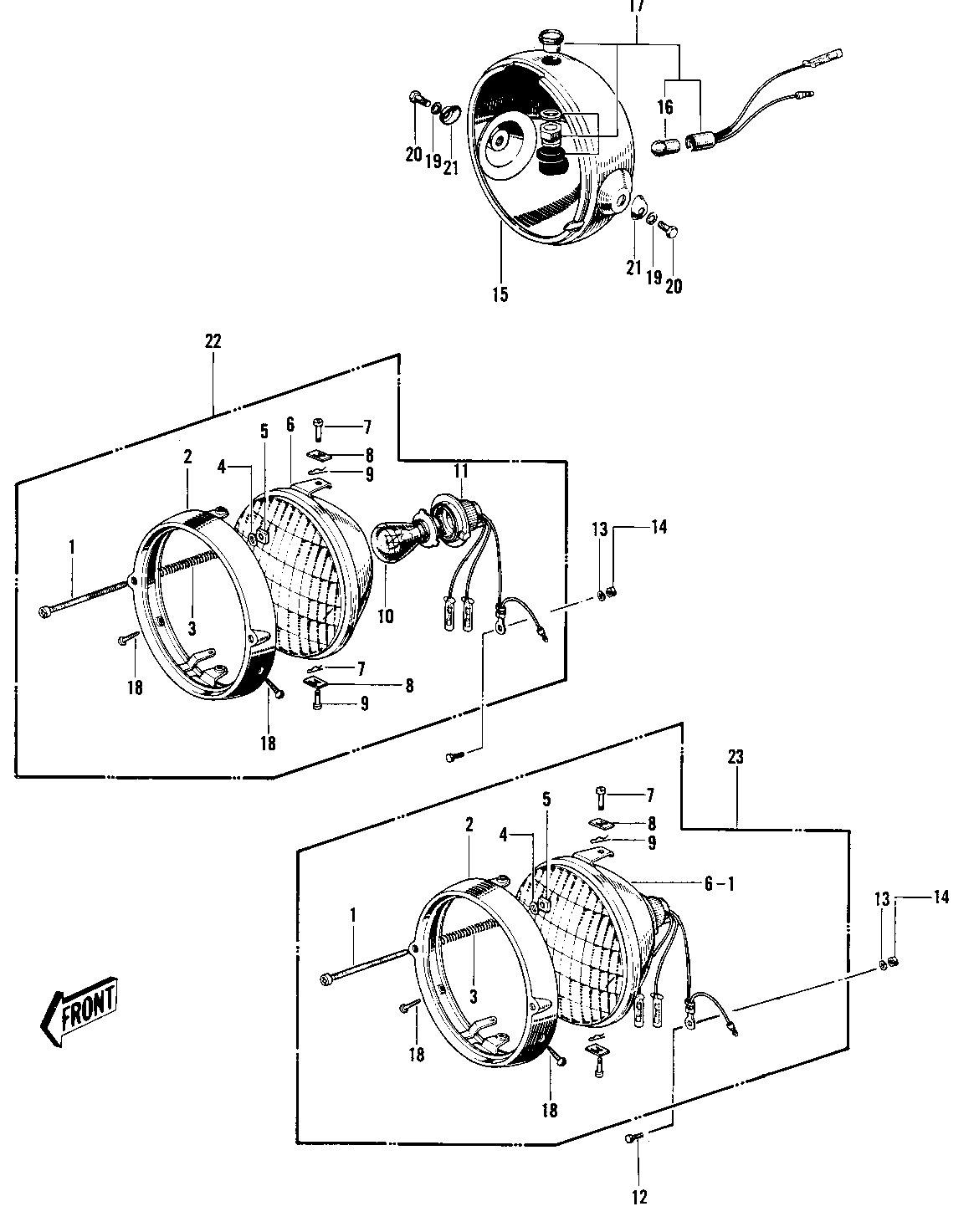

1975 H1-F - HEADLIGHT ('69-'72 H1/A/B/C)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SCREW FORCUS ADJUST | 1 | 23019-021 | 1 | ||
RIM HEAD LAMP | 2 | 23006-017 | 1 | ||
SPRING FOCUS ADJUST | 3 | 23014-005 | 1 | ||
WASHER | 4 | 23021-004 | 1 | ||
NUT | 5 | 23020-016 | 1 | ||
LENS UNIT HEAD LAMP | 6 | 23007-013 | 1 | 1969 MODEL H | |
SEALED BEAM UNIT | 6-1 | 23007-025 | 1 | '70 H1,H1-A/B | |
SCREW LENS UNIT FITT | 7 | 23019-018 | 2 | ||
NUT LENS UNIT FITTING | 8 | 23020-009 | 2 | ||
PIN LENS UNIT FITTING | 9 | 23022-001 | 2 | ||
BULB 12V 35/25W | 10 | 92069-037 | 1 | 1969 MODEL H | |
SOCKET HEAD LAMP | 11 | 23008-011 | 1 | 1969 MODEL H | |
SCREW-PAN-HEAD 3X6 | 12 | 220B0306 | 1 | ||
WASHER SPRING 3MM | 13 | 461F0300 | 1 | ||
NUT-HEX | 14 | 311B0300 | 1 | ||
BODY HEAD LAMP | 15 | 23005-023 | 1 | '69 H1,H1-A/C | |
BODY-HEAD LAMP,F BLK | 15 | 23005-018-21 | 1 | '70 H1,H1-B | |
BULB 12V 1.5W | 16 | 92069-017 | 1 | ||
LAMP ASSY HIGH BEAM | 17 | 23016-002 | 1 | ||
SCREW OVL CNTSNK 5X10 | 17 | 222E0510 | 2 | ||
WASHER SPRING 10MM | 19 | 461F1000 | 2 | ||
BOLT,HEX HEAD,10X25 | 20 | 92007-045 | 2 | ||
DAMPER RUBBER | 21 | 92075-058 | 2 | H1-B | |
LAMP UNIT HEAD | 22 | 23004-020 | 1 | H1 | |
LAMP UNIT HEAD | 23 | 23003-011 | 1 | H1-A/B/C |
SCREW FORCUS ADJUST | |
REF # | 1 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RIM HEAD LAMP | |
REF # | 2 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING FOCUS ADJUST | |
REF # | 3 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER | |
REF # | 4 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT | |
REF # | 5 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LENS UNIT HEAD LAMP | |
REF # | 6 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | 1969 MODEL H |
SEALED BEAM UNIT | |
REF # | 6-1 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | '70 H1,H1-A/B |
SCREW LENS UNIT FITT | |
REF # | 7 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT LENS UNIT FITTING | |
REF # | 8 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PIN LENS UNIT FITTING | |
REF # | 9 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BULB 12V 35/25W | |
REF # | 10 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | 1969 MODEL H |
SOCKET HEAD LAMP | |
REF # | 11 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | 1969 MODEL H |
SCREW-PAN-HEAD 3X6 | |
REF # | 12 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER SPRING 3MM | |
REF # | 13 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT-HEX | |
REF # | 14 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BODY HEAD LAMP | |
REF # | 15 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | '69 H1,H1-A/C |
BODY-HEAD LAMP,F BLK | |
REF # | 15 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | '70 H1,H1-B |
BULB 12V 1.5W | |
REF # | 16 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LAMP ASSY HIGH BEAM | |
REF # | 17 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW OVL CNTSNK 5X10 | |
REF # | 17 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER SPRING 10MM | |
REF # | 19 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,HEX HEAD,10X25 | |
REF # | 20 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER RUBBER | |
REF # | 21 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS | H1-B |
LAMP UNIT HEAD | |
REF # | 22 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | H1 |
LAMP UNIT HEAD | |
REF # | 23 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | H1-A/B/C |
