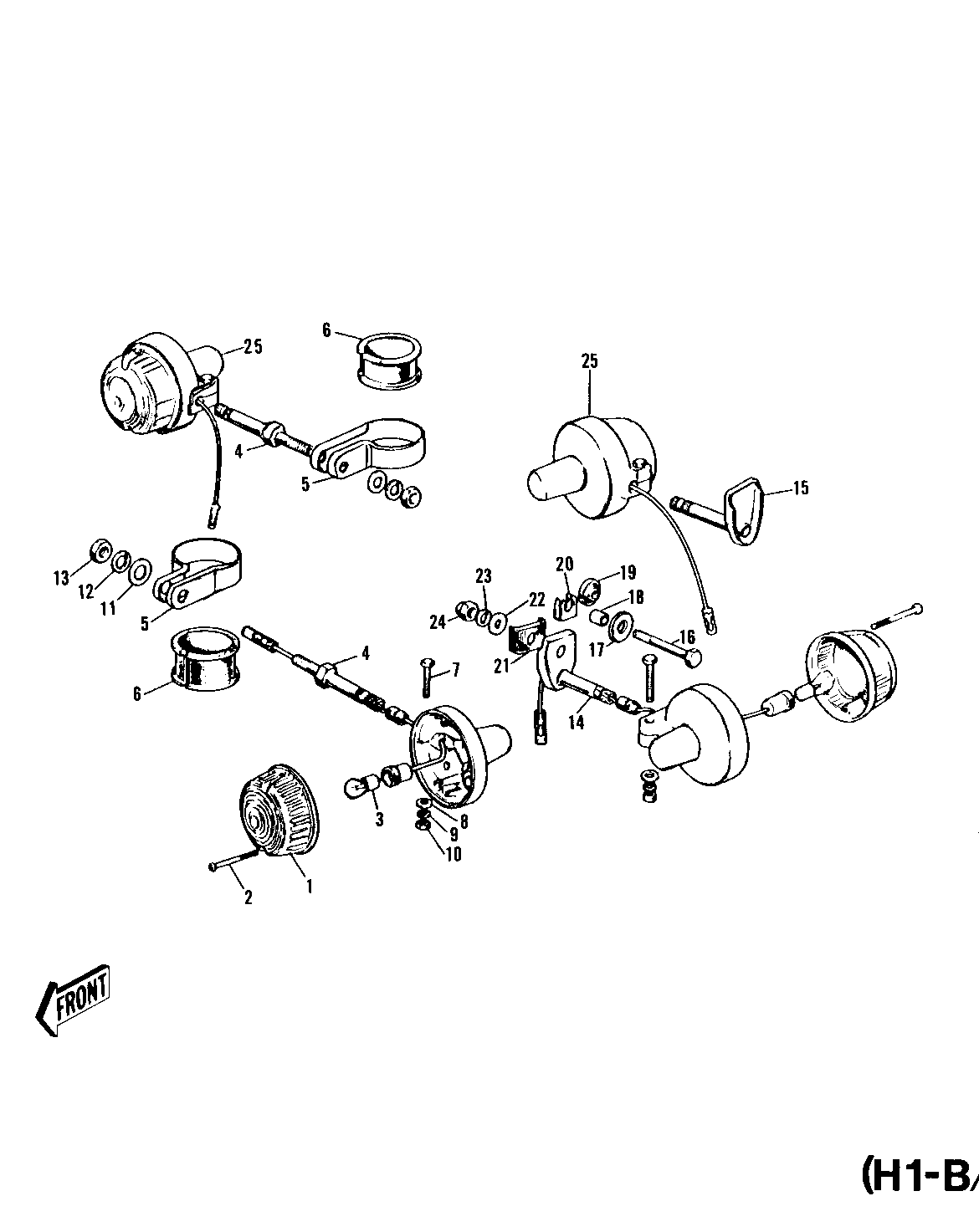

1975 H1-F - TURN SIGNALS (H1-B/C)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LENS-SIGNAL LAMP 1 23048-1024 4
LENS-SIGNAL LAMP 1 23048-1024 4
SCREW PAN HEAD 4X30 2 220E0430 8
BULB 12V 32CP 3 92069-055 4
BRACKET,TURN SIGNAL 4 23051-047 2
BRACKET,TURN SIGNAL 4 23051-047 2
BKT-FRT SIGNAL LAMP 5 23051-021 2 H1-C
DAMPER RUBBER-FR SGNL 6 92075-088 2 H1-C
BOLT-UPSET 7 112G0630 4
WASHER PLAIN 6MM 8 410B0600 4
WASHER SPRING 6MM 9 461F0600 4
NUT 6MM 10 311B0600 4
WASHER PLAIN 12MM 11 410B1200 2 H1-C
WASHER SPRING 12MM 12 461F1200 2
NUT,12MM 13 314N1200A 2 H1-B
NUT-HEX-FINE,12MM 13 315B1200 2 H1-C
BKT-RR SIGNL LAMP,R.H 14 23051-018 1
BKT-RR SIGNL LAMP,L.H 15 23051-019 1
BOLT,HEX HEAD,10X50 16 92001-1254 2
WASHER-PLAIN 17 92022-206 2
COLLAR 18 92027-137 2
DAMPER RUBBER,A 19 92075-114 2
PLATE-EARTH 20 23061-003 2
DAMPER RUBBER B 21 92075-082 2
WASHER PLAIN 10MM 22 411B1000 2 H1-C
WASHER SPRING 10MM 23 461F1000 2
NUT (10MM) 24 311B1000 2 H1-C
LAMP-TURN SIGNAL 25 23040-029 4
