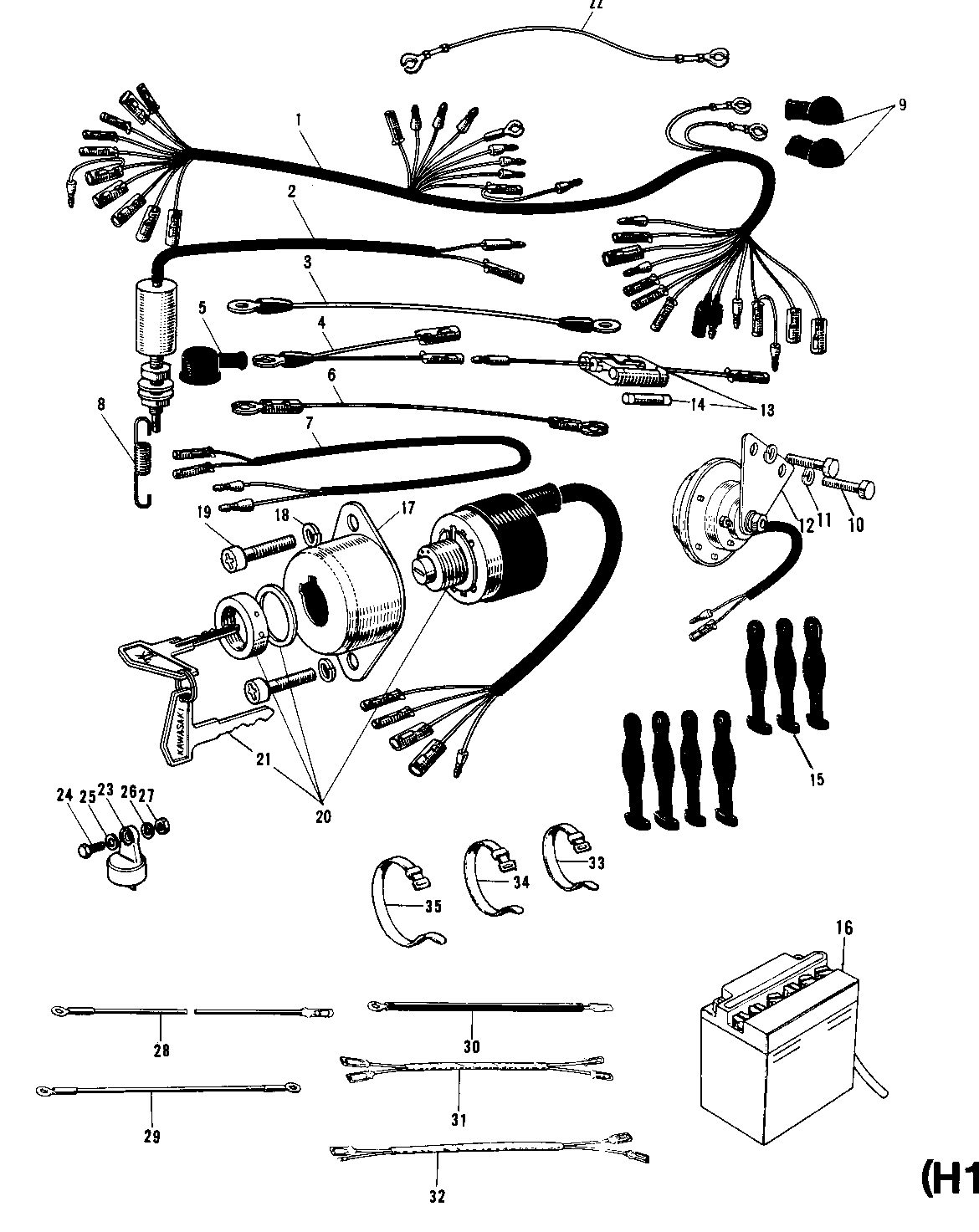

1975 H1-F - CHASSIS ELECTRICAL EQUIPMENT (H1/A/C)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WIRING HARNESS MAIN 1 26001-031 1
SWITCH BRAKE LAMP 2 27010-006 1
WIRE BATTERY GROUND 3 26010-014 1
WIRE BATTERY LEAD 4 26010-015 1
CAP BAT TERMINAL RUBB 5 92073-001 1
WIRE GROUND 6 26011-025 1
WIRING HARNESS REAR 7 26002-007 1
SPRING BRAKE LAMP SW 8 27011-009 1
CAP IGNITION COIL 9 92073-003 2
BOLT,8X20 10 115G0820 2
WASHER SPRING 8MM 11 461F0800 2
HORN 12 27003-014 1
FUSE ASSY 13 26004-005 1
FUSE 20A 14 26006-002 2
BAND RUBBER 15 92072-013 7 H1/A
YUA BAT 12N9-4B-1 16 26012-017 1 12N9-4B-1
HOUSING IGNITION SW 17 27009-005 1
WASHER SPRING 6MM 18 461F0600 2
SCREW PAN HEAD 6X12 19 220B0612 2
SWITCH ASSY IGNITION 20 27005-021 1
KEY SET NO.669 21 27008-027-69 AR
KEY SET NO.676 21 27008-027-76 AR
WIRE LEAD 22 26011-038 1 H1-C
RELAY-TURN SIGNAL 23 27002-012 1 H1-C
BOLT-UPSET 6X14 24 112B0614 1 H1-C
WASHER SPRING 6MM 25 461F0600 1 H1-C
WASHER 6.5X20X1.6T 26 92022-125 1 H1-C
NUT 6MM 27 311B0600 1 H1-C
WIRE BATTERY LEAD 28 26010-016 1 H1-C
WIRE BATTERY GROUND 29 26010-017 1 H1-C
WIRE-READ 30 26011-047 1 H1-C
WIRE-LEAD 31 26011-057 1 H1-C
WIRE-LEAD 32 26011-058 1 H1-C
BAND,SHORT 33 92072-030 5 H1-C
BAND,MIDDLE 34 92072-031 1 H1-C
BAND,LONG 35 92072-032 1 H1-C
