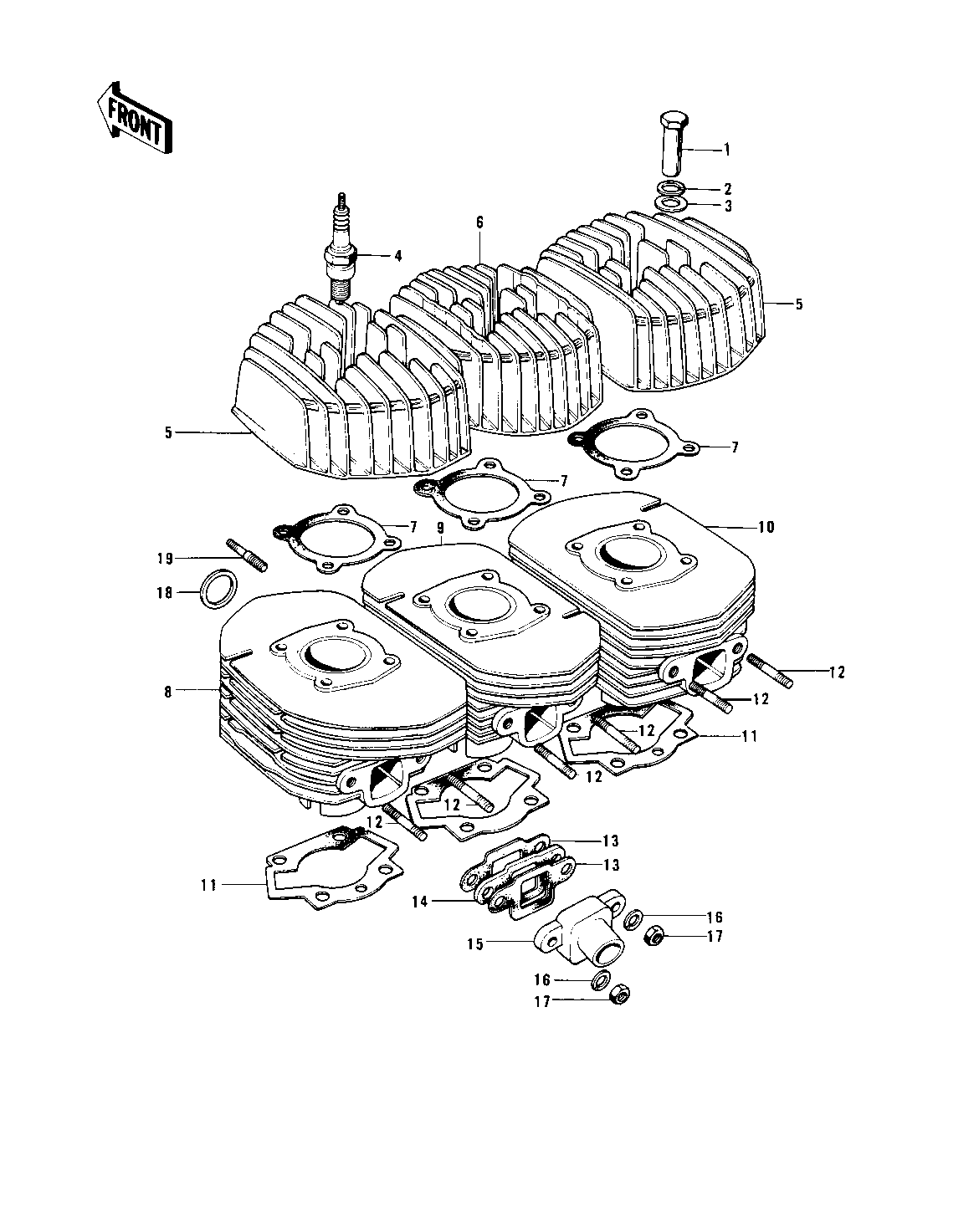

1975 H1-F - CYLINDER HEADS/CYLINDERS ('73-'75 D/E/F
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| NUT 8MM | 1 | 92015-020 | 12 | ||
| WASHER SPRING 12MM | 2 | 461F1200 | 12 | ||
| WASHER PLAIN 12MM | 3 | 92022-072 | 12 | ||
| SPARK PLUG B9HS1 | 4 | B9HS1 | 3 | ||
| CYLINDER HEAD,L.H&R.H | 5 | 11001-064-80 | 2 | H1-D | |
| CYLINDER HEAD,L.H&R.H | 5 | 11001-098-2H | 2 | H1-E/F, KH500-A8 | |
| CYLINDER HEAD,CENTER | 6 | 11001-065 | 1 | H1-D | |
| CYLINDER HEAD,CENTER | 6 | 11001-099-2H | 1 | H1-E/F, KH500-A8 | |
| GASKET-CYLINDER HEAD | 7 | 11004-048 | 3 | ||
| CYLINDER | 8 | 11005-050 | 1 | H1-D | |
| CYLINDER,L.H,BARREL | 8 | 11005-122-2H | 1 | H1-E/F, KH500-A8 | |
| CYLINDER | 9 | 11005-051 | 1 | H1-D | |
| CYLINDER,CENTER,BAREL | 9 | 11005-123-2H | 1 | H1-E/F, KH500-A8 | |
| CYLINDER | 10 | 11005-052 | 1 | H1-D | |
| CYLINDER,R.H,BARREL | 10 | 11005-124-2H | 1 | H1-E/F, KH500-A8 | |
| GASKET CYLINDER BASE | 11 | 11009-019 | 3 | ||
| STUD 8X20 | 12 | 172G0820 | 6 | ||
| GASKET AIR INLET | 13 | 16062-011 | 6 | ||
| INSULATOR HEAT | 14 | 16061-010 | 3 | ||
| INLET PIPE | 15 | 16060-009 | 3 | ||
| WASHER SPRING 8MM | 16 | 461F0800 | 6 | ||
| NUT,8MM | 17 | 311B0800 | 6 | ||
| GASKET EXHAUST PIPE | 18 | 18067-008 | 3 | H1-D | |
| GASKET,EXHAUST PIPE H | 18 | 11009-1840 | 3 | H1-E/F, KH500-A8 | |
| STUD | 19 | 92004-029 | 6 | H1-D | |
| STUD,8X25 | 19 | 92004-1008 | 6 | H1-E/F, KH500-A8 |
| NUT 8MM | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 12 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 12MM | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 12 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 12MM | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 12 |
| DESTINATION | |
| REMARKS | |
| SPARK PLUG B9HS1 | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| CYLINDER HEAD,L.H&R.H | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | H1-D |
| CYLINDER HEAD,L.H&R.H | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | H1-E/F, KH500-A8 |
| CYLINDER HEAD,CENTER | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | H1-D |
| CYLINDER HEAD,CENTER | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | H1-E/F, KH500-A8 |
| GASKET-CYLINDER HEAD | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| CYLINDER | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | H1-D |
| CYLINDER,L.H,BARREL | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | H1-E/F, KH500-A8 |
| CYLINDER | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | H1-D |
| CYLINDER,CENTER,BAREL | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | H1-E/F, KH500-A8 |
| CYLINDER | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | H1-D |
| CYLINDER,R.H,BARREL | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | H1-E/F, KH500-A8 |
| GASKET CYLINDER BASE | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| STUD 8X20 | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| GASKET AIR INLET | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| INSULATOR HEAT | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| INLET PIPE | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 8MM | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| NUT,8MM | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| GASKET EXHAUST PIPE | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | H1-D |
| GASKET,EXHAUST PIPE H | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | H1-E/F, KH500-A8 |
| STUD | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | H1-D |
| STUD,8X25 | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | H1-E/F, KH500-A8 |
