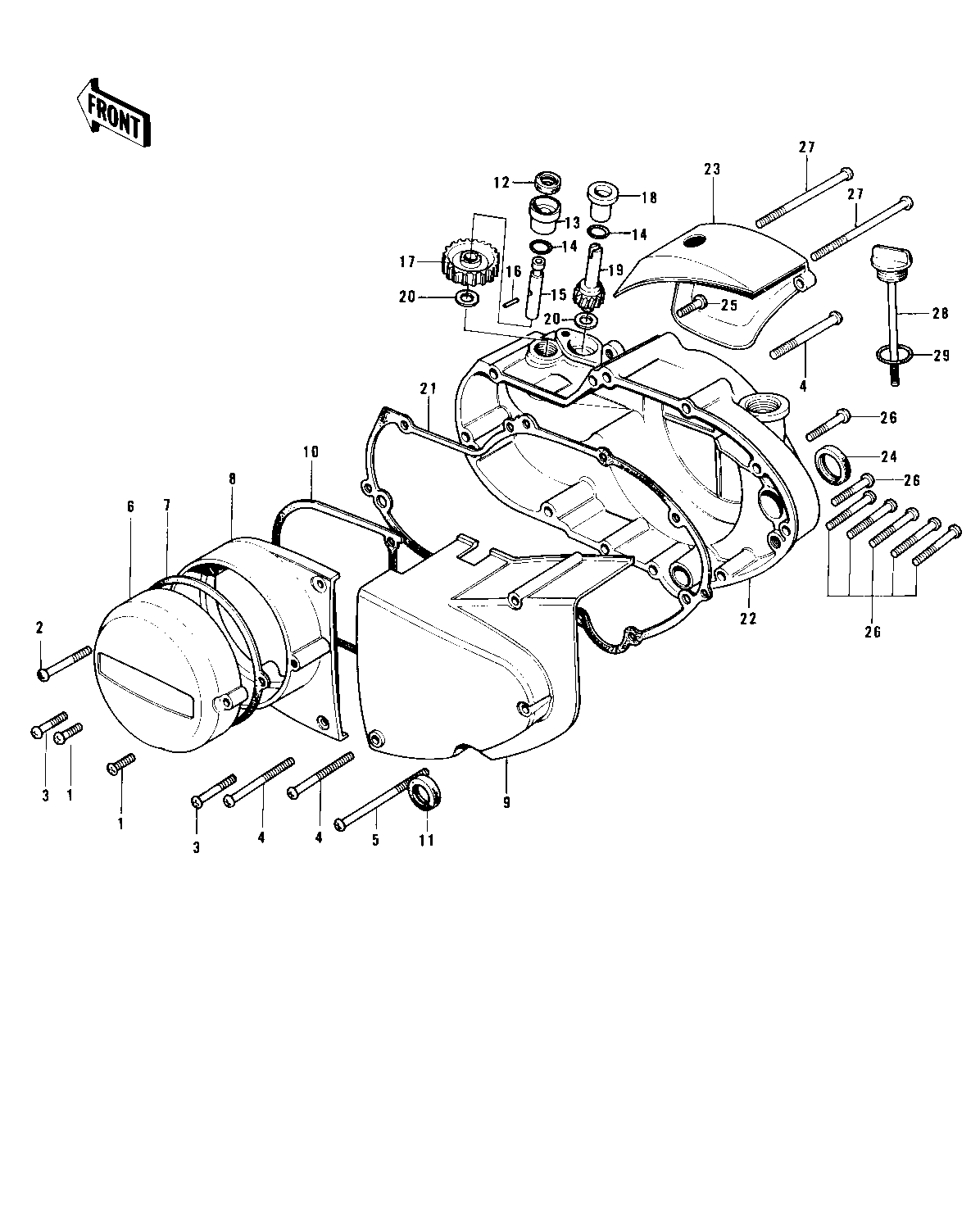

1975 H1-F - ENGINE COVERS ('73-'75 D/E/F & '76 A8)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW PAN HEAD 6X20 1 220B0620 2
SCREW PAN HEAD 6X45 2 220B0645 1
SCREW PAN HEAD 6X35 3 220B0635 2
SCREW PAN HEAD 6X55 4 220B0655 3
SCREW PAN HEAD 6X85 5 220B0685 1
CAP,BREAKER POINT,BUF 6 14027-016-80 1
GASKET-POINT CAP 7 14050-005 1 H1-D
GASKET,POINT CAP 7 14050-008 1 H1-E/F, KH500-A8
COVER,L.H ENGINE,BUFF 8 14031-049-80 1 H1-D
COVER,L.H ENGINE,BUFF 8 14031-060-80 1 H1-E/F, KH500-A8
COVER,CHN CASE,BUFF 9 14026-024-80 1 H1-D/E/F
COVER,FRONT CHN,BUFF 9 14026-034-80 1 KH500-A8
GASKET,L.H ENG COVER 10 14045-022 1
OIL SEAL SB12205 11 92049-004 1
OIL SEAL 12 92054-004 1
BUSH 13 92028-075 1
"0" RING 14 92055-025 2
SHAFT TACHOMETER GEAR 15 13226-004 1
PIN,DOWEL 16 92042-035 1
GEAR TACHOMETER 17 13224-005 1
BUSH 18 92028-074 1
GEAR OIL PUMP 19 16085-011 1
WASHER THRUST 20 92026-026 2
GASKET R.H ENGINE COV 21 14046-014 1
COVER,R.H.ENGINE 22 14032-1024-80 1
COVER,R.H.ENGINE 22 14032-1024-80 1
COVER,OIL PUMP,BUFF 23 14030-036-80 1
OIL SEAL SB16244 24 92049-002 1
SCREW PAN HEAD 6X25 25 220B0625 1
SCREW PAN HEAD 6X30 26 220B0630 7
SCREW PAN HEAD 6X100 27 220B06100 2
PLUG-OIL FILLER 28 16115-017 1
PLUG-OIL FILLER 28 16115-017 1
"0" RING,20MM 29 670B2020 1
