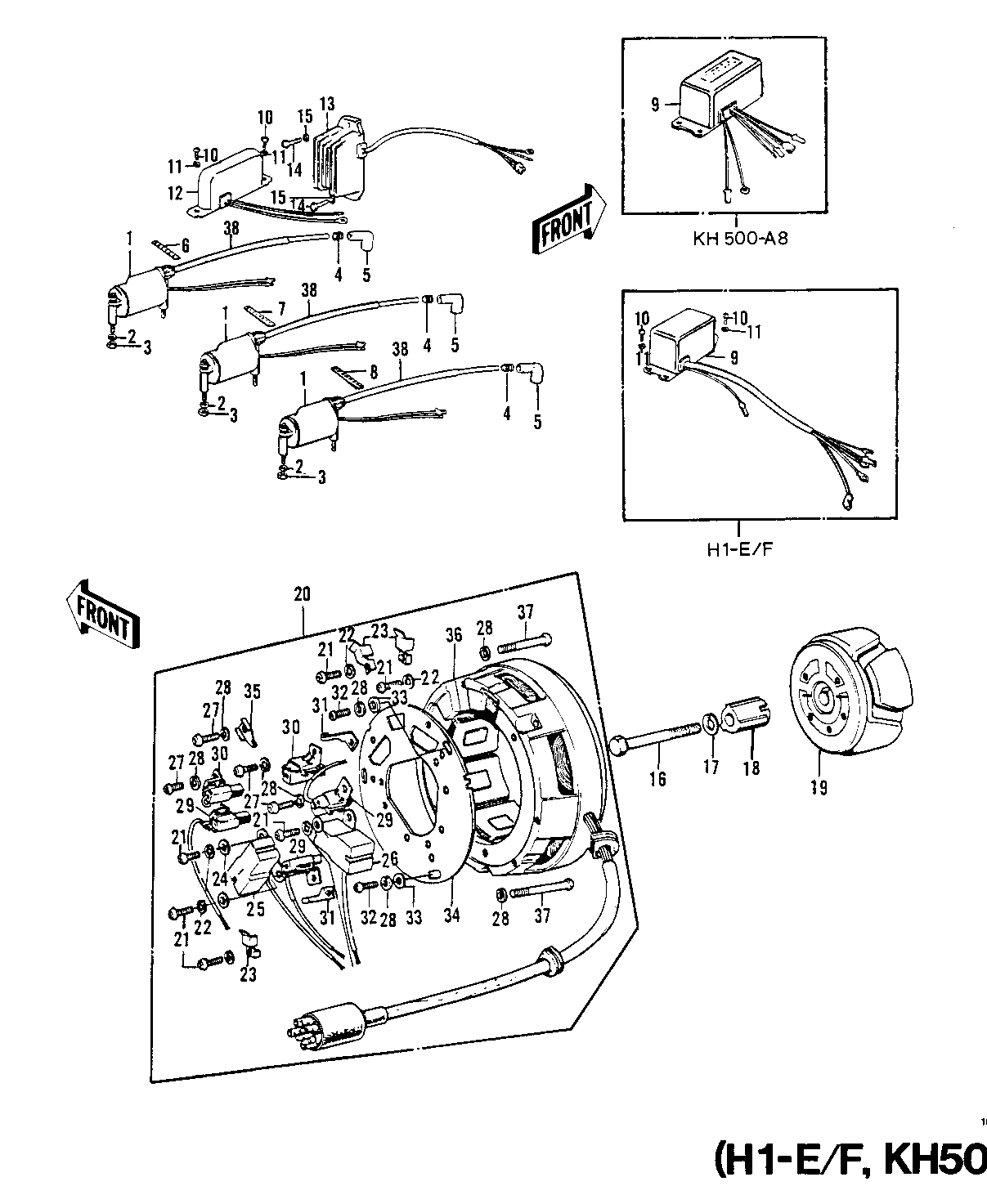

1975 H1-F - IGNITION/GENERATOR/REGULATOR (H1-E/F,KH5

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COIL,IGNITION 1 21121-074 3 H1-E/F
COIL,IGNITION 1 21121-087 3 KH500-A8
WASHER SPRING 6MM 2 461F0600 6
NUT 6MM 3 311B0600 6
SPRING-SPARK PLUG CAP 4 92101-001 3
CAP SPARK PLUG 5 21130-009 3
LABEL,LEFT 6 21168-001 1
LABEL,CENTER 7 21168-002 1
LABEL,RIGHT 8 21168-003 1
IGNITION UNIT 9 21119-025 1 H1-E/F
IGNITION UNIT 9 21119-025 1 KH500-A8
SCREW PAN HEAD 5X12 10 220B0512 5
WASHER SPRING 5MM 11 461F0500 5
IGNITION UNIT B 12 21119-019 1
REGULATOR 13 21066-1036 1
BOLT-UPSET,6X20 14 112G0620 2
WASHER SPRING 6MM 15 461F0600 2
BOLT FLANGED,8X70 16 92001-1583 1
WASHER SPRING 8MM 17 461F0800 1
ROTOR,S.G 18 21007-027 1
ROTOR 19 21007-028 1
YOKE ASSY 20 21076-016 1 H1-E/F
YOKE ASSY 20 21076-022 1 KH500-A8
SCREW PAN HEAD 4X8 21 220B0408 8
WASHER SPRING 4MM 22 461F0400 8
CLAMP,LEAD WIRE 23 21098-010 4
WASHER PLAIN 4MM 24 410B0400 4
PICK UP 25 21152-004 1 "1" OR "N" MARK
PICK UP 26 21152-005 1 "2" OR "S" MARK
SCREW PAN HEAD 5X6 27 220B0506A 6
WASHER SPRING 5MM 28 461F0500 12
BRUSH,CARBON 29 21088-013 3
BRUSH,CARBON 30 21088-014 2
CLAMP,CARBON BRUSH 31 21098-011 3
SCREW PAN HEAD 5X12 32 220B0512 3
WASHER PLAIN 5MM 33 410B0500 3
PLATE,YOKE 34 21155-007 1
POINTER,IGNITION TMNG 35 21020-003 1
STATOR 36 21003-024 1 H1-E/F
STATOR ASSY 36 21003-033 1 KH500-A8
SCREW-PAN HEAD,5X50 37 220B0550A 3
CORD,HIGH TENSION 38 21133-026 3
