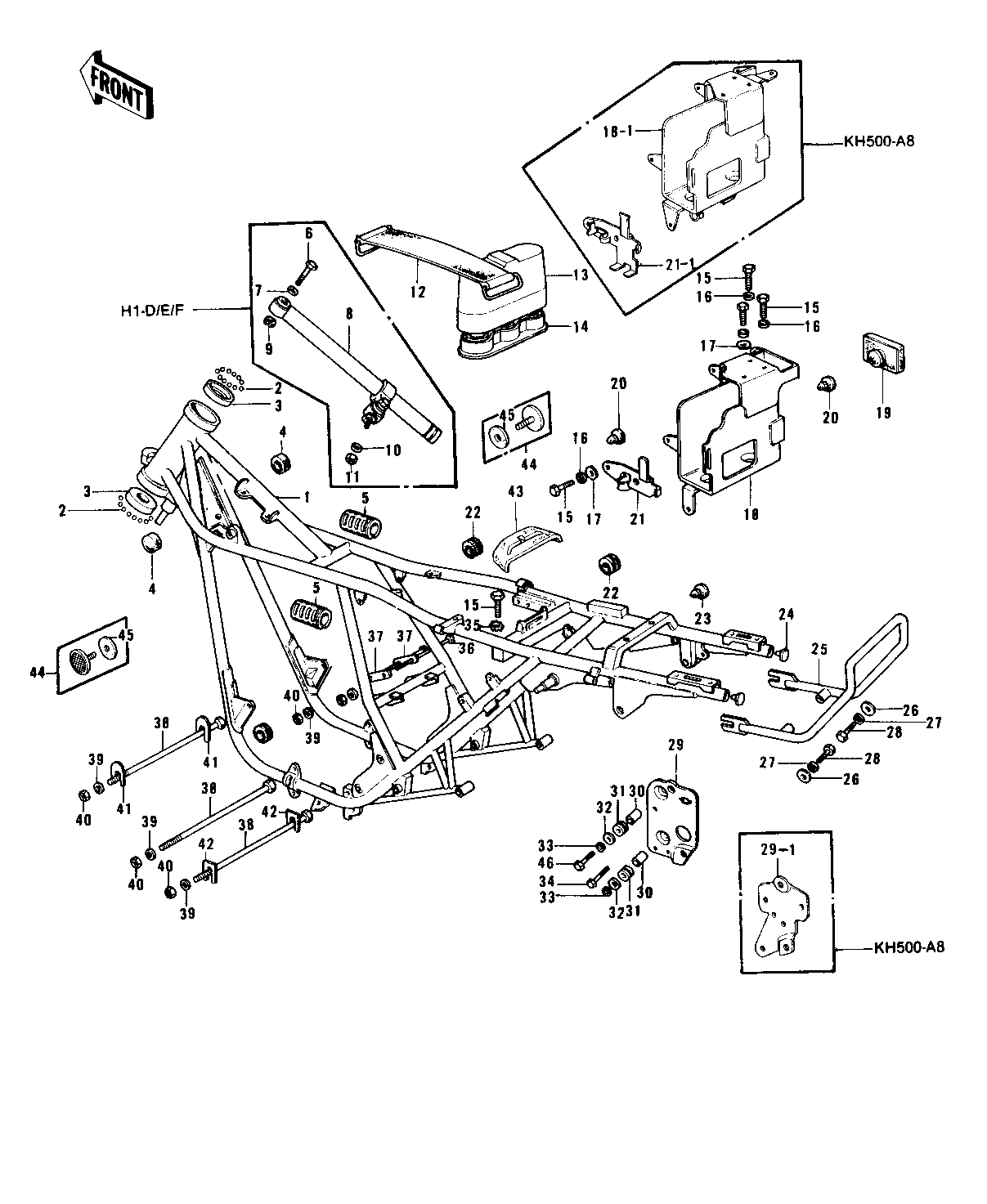

1975 H1-F - FRAME/FRAME FITTINGS ('73-'75 D/E/F & '7

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FRAME 1 32002-062 1 H1-D
FRAME 1 32002-085 1 H1-E
FRAME 1 32002-114 1 H1-F
FRAME 1 32002-127 1 H1-D/E/F
FRAME ASSY 1 32002-131 1 KH500-A8
BALL STEEL 1/4' 2 600A0800 38
RACE STRNG STEM BERNG 3 92048-006 2
DAMPER RUBBER-FL TANK 4 92075-101 2
DAMPER RUBBER 5 92075-084 2 H1-D/E/F
BOLT HEX HEAD 8X60 6 110B0860 1 H1-D/E/F
WASHER PLAIN 8MM 7 411B0800 1 H1-D/E/F
OIL DAMPER-STEERING 8 46117-006 1 H1-D/E/F
NUT,LOCK,8MM 9 92015-1124 1 H1-D/E/F
WASHER SPRING 8MM 10 461F0800 1 H1-D/E/F
NUT,8MM 11 311B0800 1 H1-D/E/F
BAND,SPARK PLUG COVER 12 32100-015 1
COVER-SPARK PLUG 13 32132-003 1
HOLDER-SPARK PLUG COV 14 32132-002 1
BOLT-UPSET,6X16 15 112G0616 5 H1-D/E/F
BOLT-UPSET,6X12 15 112G0612 5 KH500-A8
WASHER SPRING 6MM 16 461F0600 5
WASHER PLAIN 6MM 17 411B0600 5
CASE,BATTERY 18 32097-026 1 H1-D
CASE,BATTERY 18 32097-033 1 H1-E/F
CASE,BATTERY 18-1 32097-038 1 KH500-A8
DAMPER RUBBER,BATERY 19 92075-163 1
DAMPER RUBBER 20 92075-078 4
BAND,BATTERY 21 32100-016 1 H1-D/E/F
BAND,BATERY CASE 21-1 32100-018 1 KH500-A8
GROMMET 22 92071-056 4
GROMMET 23 92071-081 1 H1-E/F
PLUG 24 32112-006 2
STAY,REAR FENDER 25 35032-023 1
WASHER PLAIN 8MM 26 411B0800 2
WASHER SPRING 8MM 27 461F0800 2
BOLT,8X20 28 115G0820 2
WIRING HARNESS&BKT 29 26002-036 1 H1-D
BKT&HARNESS,WIRING 29 26002-044 1 H1-E/F
BKT,ELECT BASE 29-1 32129-007 1 KH500-A8
COLLAR 6.8X10X14.5 30 92027-156 2
DAMPER RUBBER 31 92075-167 2
WASHER 6.5X20X1.6T 32 92022-125 2
WASHER SPRING 6MM 33 461F0600 2
BOLT-UPSET 34 112G0630 1
WASHER LOCK 6MM 35 464H0600 1
BOLT,HEX HEAD,10X125 36 92001-1248 2
PLATE REAR ENG HOLDER 37 32030-016 2
BOLT-ENG MOUNT,10X274 38 92091-024 5
WASHER PLAIN 10MM 39 410B1000 5
NUT,10MM 40 92015-1429 5
SHIM-ENG FIT RR,0.5MM 41 92025-048 5
SHIM-ENG FIT RR,0.8MM 41 92025-049 AR
SHIM-ENG FIT RR,1.0MM 41 92025-050 AR
SHIM-ENG FIT RR,1.6MM 41 92025-051 AR
SHIM-ENG FIT RR,2.0MM 41 92025-052 AR
SHIM-ENG FIT FR,0.5MM 42 92025-053 5
SHIM-ENG FIT FR,0.8MM 42 92025-054 AR
SHIM-ENG FIT FR,1.0MM 42 92025-055 AR
SHIM-ENG FIT FR,1.6MM 42 92025-056 AR
SHIM-ENG FIT FR,2.0MM 42 92025-057 AR
SHIM-ENG FIT FR,2.3MM 42 92025-058 AR
DAMPER RUBBER,FUEL TK 43 92075-278 1 KH500-A8
REFLECTOR,REFLEX 44 28001-026 2 KH500-A8
DAMPER RUBBER,REFLECT 45 92094-011 2 KH500-A8
BOLT-UPSET 46 112G0630 1 H1-D/E/F
BOLT-UPSET 46 112G0625 1 KH500-A8
