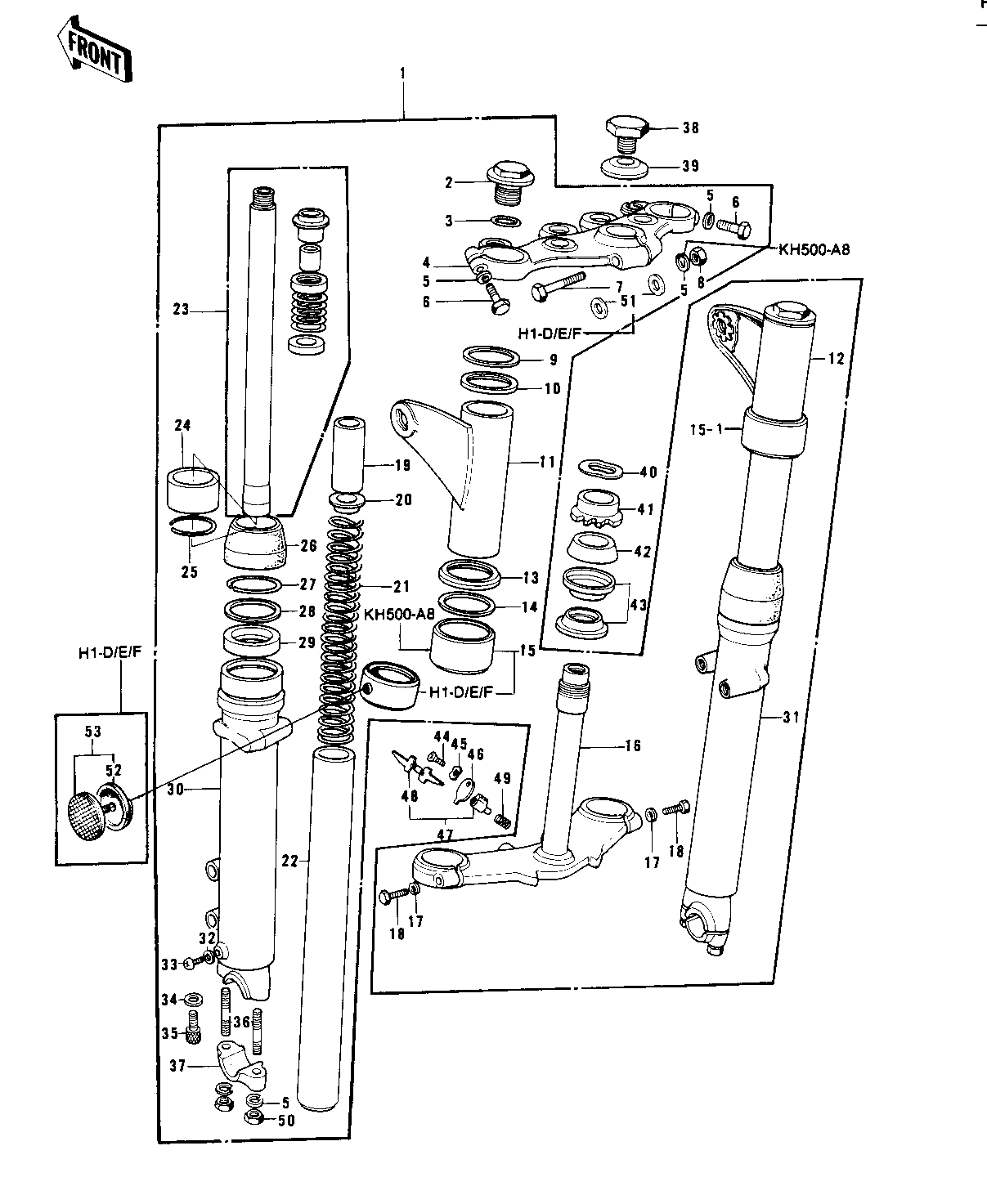

1975 H1-F - FRONT FORK ('73-'75 D/E/F & '76 A8)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
FORK-FRONT | 1 | 44001-131 | 1 | H1-D | |
FORK-FRONT | 1 | 44001-131 | 1 | H1-E/F | |
FORK-FRONT | 1 | 44001-176 | 1 | KH500-A8 | |
BOLT-FORK TOP | 2 | 44062-003 | 2 | ||
'O' RING FORK TOP | 3 | 44046-015 | 2 | ||
HEAD,STEERING STEM | 4 | 44039-048 | 1 | ||
WASHER SPRING 8MM | 5 | 461F0800 | 6 | H1-D/E/F | |
WASHER SPRING 8MM | 5 | 461F0800 | 7 | KH500-A8 | |
BOLT,HEX HEAD,6MM | 6 | 44041-049 | 2 | ||
BOLT-STEERING STEM HD | 7 | 44041-042 | 1 | ||
NUT,LOCK,8MM | 8 | 92015-1124 | 1 | H1-D/E/F | |
NUT,LOCK,8MM | 8 | 92015-1124 | 1 | H1-D/E/F | |
NUT,LOCK,8MM | 8 | 92017-013 | 1 | KH500-A8 | |
GASKET,FORK COVER | 9 | 44045-041 | 2 | ||
WASHER,FORK COVER | 10 | 44043-048 | 2 | ||
COVER-L.H.FORK | 11 | 44033-069 | 1 | H1-D | |
COVER-L.H.FORK | 11 | 44033-069 | 1 | H1-E/F | |
COVER,L.H FORK | 11 | 44033-068 | 1 | KH500-A8 | |
COVER,R.H FORK | 12 | 44034-069 | 1 | H1-D | |
COVER,R.H FORK | 12 | 44034-069 | 1 | H1-E/F | |
COVER,R.H FORK | 12 | 44034-068 | 1 | KH500-A8 | |
WASHER-FORK COVER | 13 | 44032-008 | 2 | ||
GASKET,FORK COVER | 14 | 44045-040 | 2 | H1-D | |
GASKET,FORK COVER | 14 | 44045-038 | 2 | H1-E/F,KH500-A8 | |
GUIDE,L.H FORK COVER | 15 | 44064-014 | 1 | H1-D/E/F | |
GUIDE,FORK COVER | 15 | 44064-025 | 1 | KH500-A8 | |
GUIDE,R.H FORK COVER | 15-1 | 44064-013 | 1 | H1-D/E/F | |
GUIDE,FORK COVER | 15-1 | 44064-025 | 1 | KH500-A8 | |
STEM,STEERING | 16 | 44037-053 | 1 | H1-D/E/F | |
STEM,STEERING | 16 | 44037-096 | 1 | KH500-A8 | |
WASHER SPRING 12MM | 17 | 461F1200 | 2 | ||
BOLT-HEX HEAD,12X36 | 18 | 92003-064 | 2 | ||
SPACER-FORK SPRING | 19 | 44028-023 | 2 | ||
GUIDE-FORK SPRING | 20 | 44029-019 | 2 | ||
SPRING-FORK | 21 | 44026-031 | 2 | ||
TUBE-FORK INNER | 22 | 44013-032 | 2 | ||
CYLINDER-FORK | 23 | 44022-007 | 2 | H1-D | |
CYLINDER-FORK | 23 | 44023-006 | 2 | INCLUDES REF. #S 24 & 25 | |
CYLINDER-FORK | 23 | 44022-027 | 2 | H1-E/F | |
CYLINDER-FORK | 23 | 44022-038 | 2 | KH500-A8 | |
PISTON FORK | 24 | 44018-003 | 2 | H1-D USE FOR 44022-007 | |
PISTON,FORK | 24 | 44018-009 | 2 | H1-E/F,KH500-A8 | |
CIRCLIP FORK PISTON | 25 | 44044-008 | 2 | H1-D USE FOR 44022-007 | |
CIRCLIP,FORK PISTON | 25 | 44044-019 | 2 | H1-E/F,KH500-A8 | |
DUST SHIELD-FORK | 26 | 44010-021 | 2 | H1-D/E/F | |
DUST SHEILD,FORK | 26 | 44010-032 | 2 | KH500-A8 | |
CIRCLIP-OIL SEAL FIT | 27 | 44044-012 | 2 | ||
SEAL-OIL,FORK OUTER P | 29 | 92049-1216 | 2 | H1-D/E/F | |
SEAL-OIL,FORK OUTER P | 29 | 92049-1216 | 2 | KH500-A8 | |
TUBE,LH,FORK OUTER | 30 | 44005-041 | 1 | H1-D/E/F | |
TUBE,LH,FORK OUTER | 30 | 44005-065 | 1 | KH500-A8 | |
TUBE,RH,FORK OUTER | 31 | 44006-039 | 1 | H1-D/E/F | |
TUBE,RH,FORK OUTER | 31 | 44006-063 | 1 | KH500-A8 | |
GASKET FORK DRAIN PLG | 32 | 44045-002 | 2 | ||
SCREW PAN HEAD 4X8 | 33 | 220B0408 | 2 | ||
GASKET,FORK CYLINDER | 34 | 44045-057 | 2 | ||
BOLT-FORK CYLINDER | 35 | 44041-040 | 2 | ||
STUD,8X35 | 36 | 92004-1009 | 4 | ||
HOLDER-FRONT AXLE | 37 | 44063-003 | 2 | H1-D/E/F | |
HOLDER,FRONT AXLE | 37 | 44063-014 | 2 | KH500-A8 | |
BOLT,STEERG STEM HEAD | 38 | 92007-031 | 1 | ||
WASHER,STEERG STM HD | 39 | 92022-230 | 1 | ||
WASHER,WAVE | 40 | 46100-003 | 1 | ||
NUT STEERING STEM LCK | 41 | 92090-007 | 1 | ||
CAP, STEERING STEM | 42 | 46098-016 | 1 | ||
CONE STRNG STEM BERNG | 43 | 92047-006 | 2 | ||
SCREW-TAPPING | 44 | 92008-007 | 1 | ||
WASHER | 45 | 92097-003 | 1 | ||
CAP,STEERING LOCK | 46 | 27031-002 | 1 | H1-D | |
CAP,STEERING LOCK | 46 | 27031-004 | 1 | H1-E/F,KH500-A8 | |
LOCK ASSY-STEERING | 47 | 27016-030 | 1 | H1-D | |
LOCK ASSY,STEERING | 47 | 27016-038 | 1 | H1-E/F,KH500-A8 | |
KEY SET,#265 | 48 | 27018-016-65 | AR | H1-D | |
KEY SET,#279 | 48 | 27018-016-79 | AR | H1-D | |
KEY SET,#911 | 48 | 27008-055-11 | AR | H1-E/F,KH500-A8 | |
KEY SET,#925 | 48 | 27008-055-25 | AR | H1-E/F,KH500-A8 | |
SPRING-STEERING LOCK | 49 | 27032-001 | 1 | ||
NUT,8MM | 50 | 311B0800 | 4 | H1-D/E/F | |
NUT,LOCK,8MM | 50 | 92017-013 | 4 | KH500-A8 | |
WASHER PLAIN 8MM | 51 | 410B0800 | 2 | H1-D/E/F | |
DAMPER RUBBER-REFLEX | 52 | 28016-002 | 2 | H1-D/E/F | |
REFLECTOR,REFLEX,FRNT | 53 | 28001-029 | 2 | H1-D/E/F |
