Parts Diagrams |

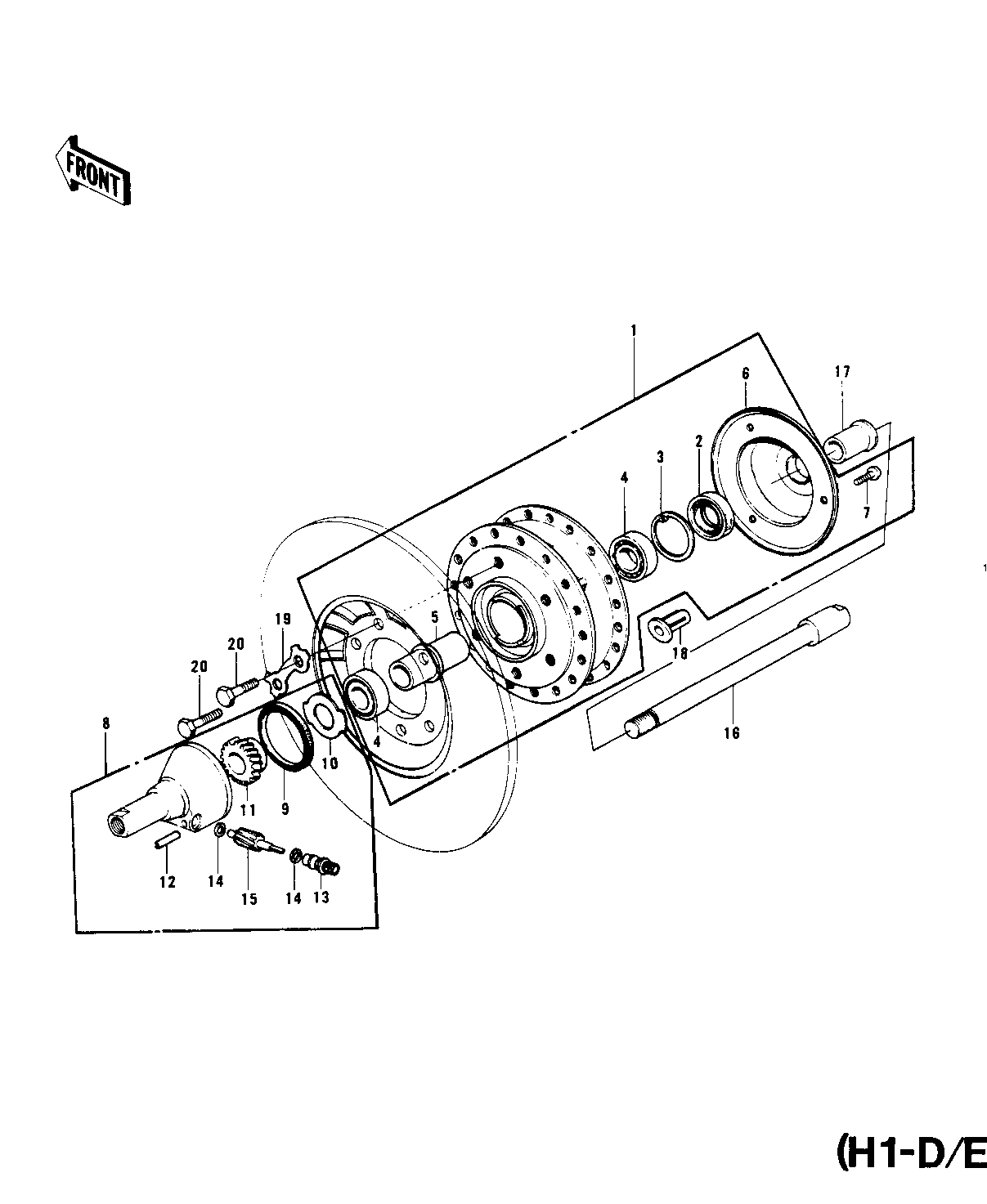

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
DRUM-ASSY,FR BRK,BLK | 1 | 41034-021-21 | 1 | ||
OIL SEAL-COUPLING | 2 | 92052-003 | 1 | ||
RING, SNAP,43.5M/M | 3 | 92033-1040 | 1 | ||
BEARING BALL #6203 | 4 | 601B6203 | 2 | ||
COLLAR-FRONT DRUM | 5 | 41039-019 | 1 | ||
COVER-BRAKE DRUM DUST | 6 | 41042-009 | 1 | ||
SCREW OVL CNTSNK 5X12 | 7 | 222E0512A | 3 | ||
CASE ASSY-SPEED GEAR | 8 | 41078-001 | 1 | ||
OIL SEAL,VC54656 | 9 | 92050-046 | 1 | ||
RECEIVER-SPEEDO GEAR | 10 | 41064-007 | 1 | ||
GEAR-SPEEDOMETER | 11 | 41059-016 | 1 | ||
PIN,SPRING | 12 | 41082-001 | 1 | ||
BUSH SPEEDMETER CABLE | 13 | 41062-001 | 1 | ||
WASHER THRST SPD PINI | 14 | 41063-001 | 2 | ||
PINION-SPEEDOMETER | 15 | 41060-012 | 1 | ||
AXLE-FRONT HUB | 16 | 41068-036 | 1 | ||
COLLAR-FRONT AXLE | 17 | 41069-018 | 1 | ||
CAP-FRONT DRUM HOLE | 18 | 92102-006 | 6 | ||
WASHER-LOCK,8MM | 19 | 92088-014 | 3 | ||
BOLT-HEX HEAD,8X28 | 20 | 92001-104 | 6 |
DRUM-ASSY,FR BRK,BLK | |
REF # | 1 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
OIL SEAL-COUPLING | |
REF # | 2 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING, SNAP,43.5M/M | |
REF # | 3 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING BALL #6203 | |
REF # | 4 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR-FRONT DRUM | |
REF # | 5 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER-BRAKE DRUM DUST | |
REF # | 6 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW OVL CNTSNK 5X12 | |
REF # | 7 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
CASE ASSY-SPEED GEAR | |
REF # | 8 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
OIL SEAL,VC54656 | |
REF # | 9 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RECEIVER-SPEEDO GEAR | |
REF # | 10 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR-SPEEDOMETER | |
REF # | 11 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN,SPRING | |
REF # | 12 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BUSH SPEEDMETER CABLE | |
REF # | 13 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER THRST SPD PINI | |
REF # | 14 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PINION-SPEEDOMETER | |
REF # | 15 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
AXLE-FRONT HUB | |
REF # | 16 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR-FRONT AXLE | |
REF # | 17 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP-FRONT DRUM HOLE | |
REF # | 18 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
WASHER-LOCK,8MM | |
REF # | 19 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
BOLT-HEX HEAD,8X28 | |
REF # | 20 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
