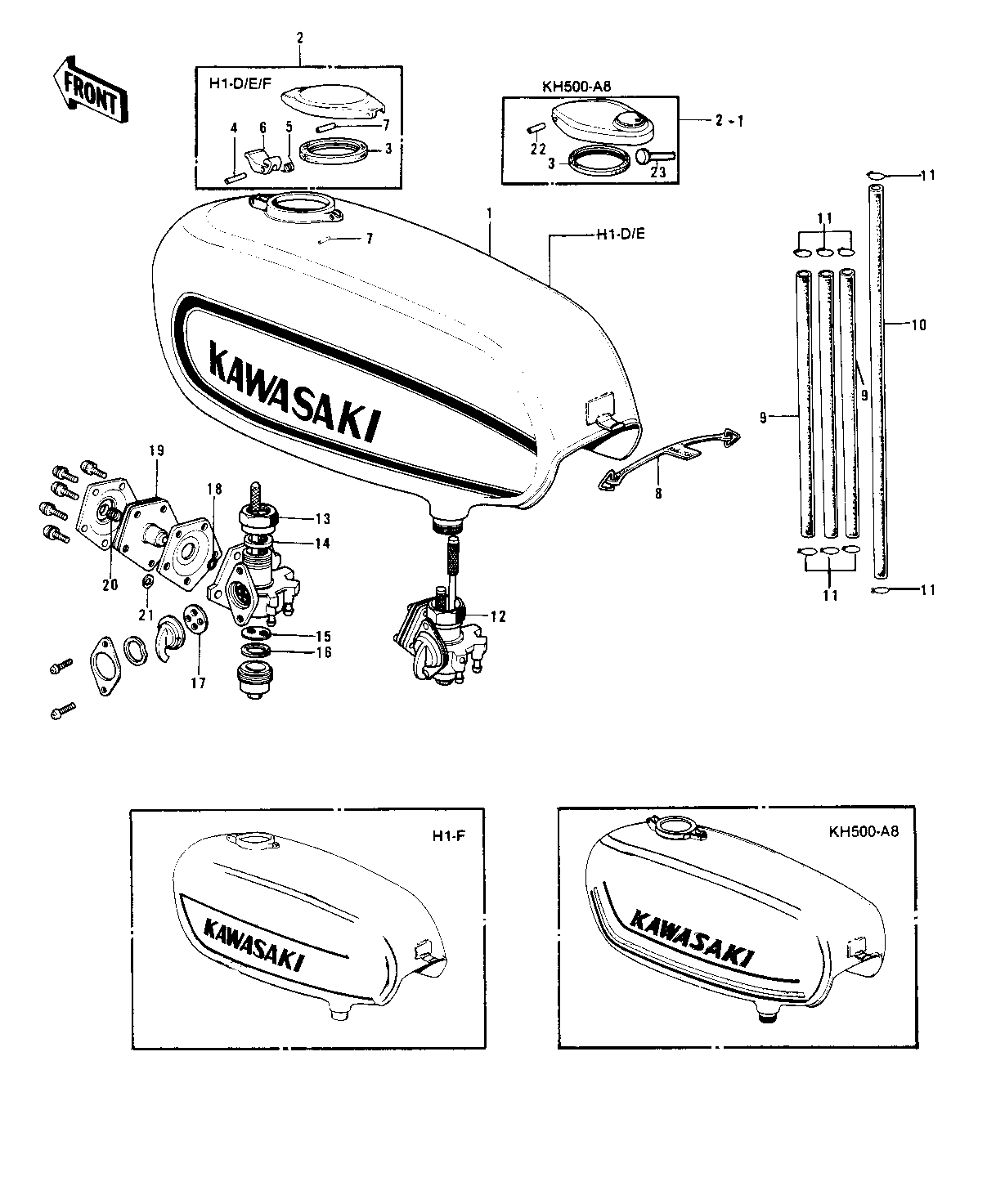

1975 H1-F - FUEL TANK ('73-'75 D/E/F & '76 A8)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
TANK-FUEL,C.LIME | 1 | 51001-082-77 | 1 | H1-D | |
TANK-FUEL,C.RED | 1 | 51001-082-1X | 1 | H1-E | |
TANK-FUEL,C.LIME | 1 | 51001-082-1Y | 1 | H1-E | |
TANK-FUEL,C.BLUE | 1 | 51001-082-2W | 1 | H1-F | |
TANK-FUEL,C.GOLD | 1 | 51001-082-2X | 1 | H1-F | |
TANK-FUEL,D.BURGUNDY | 1 | 51001-108-3T | 1 | KH500-A8 | |
TANK-FUEL,COPPER | 1 | 51001-108-3U | 1 | KH500-A8 | |
CAP ASSY,FUEL TANK | 2 | 51048-007 | 1 | H1-D/E/F | |
CAP,FUEL TANK | 2-1 | 51048-012 | 1 | KH500-A8 | |
GASKET-FUEL TANK CAP | 3 | 51059-008 | 1 | ||
PIN,TANK CAP | 4 | 92043-091 | 1 | H1-D/E/F | |
SPRING-HOOK | 5 | 51053-003 | 1 | H1-D/E/F | |
HOOK,FUEL TANK CAP | 6 | 51063-002 | 1 | H1-D/E/F | |
PIN,TANK CAP FIT | 7 | 92043-096 | 2 | H1-D/E/F | |
BAND-FUEL TANK | 8 | 92072-050 | 1 | ||
PIPE FUEL TANK CONECT | 9 | 51047-001 | 3 | H1-D | |
TUBE,4.5X9X380 | 9 | 92059-1691 | 3 | H1-E/F,KH500-A8 | |
PIPE OIL TANK | 10 | 92059-008 | 1 | H1-D | |
PIPE-FUEL | 10 | 92059-073 | 1 | H1-E/F,KH500-A8 | |
CLAMP FUEL PIPE | 11 | 92037-010 | 8 | ||
COCK ASSY,FUEL | 12 | 51023-040 | 1 | ||
NUT FUEL COCK JOINT | 13 | 51035-005 | 1 | ||
GASKET FUEL COCK JONT | 14 | 92065-054 | 1 | ||
STRAINER FUEL | 15 | 51038-005 | 1 | ||
GASKET FUEL COCK CUP | 16 | 51037-007 | 1 | ||
GASKET FUEL COCK LEV | 17 | 92065-055 | 1 | ||
"0" RING | 18 | 92055-044 | 1 | ||
DIAPHRAGM ASSY | 19 | 51069-001 | 1 | ||
SPRING DIAPHRAGM | 20 | 92081-048 | 1 | ||
GASKET | 21 | 92065-052 | 1 | ||
PIN,CAP HINGE | 22 | 92043-127 | 1 | KH500-A8 | |
PIN,HOOK | 23 | 92043-126 | 1 | KH500-A8 |
TANK-FUEL,C.LIME | |
REF # | 1 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | H1-D |
TANK-FUEL,C.RED | |
REF # | 1 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | H1-E |
TANK-FUEL,C.LIME | |
REF # | 1 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | H1-E |
TANK-FUEL,C.BLUE | |
REF # | 1 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | H1-F |
TANK-FUEL,C.GOLD | |
REF # | 1 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | H1-F |
TANK-FUEL,D.BURGUNDY | |
REF # | 1 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | KH500-A8 |
TANK-FUEL,COPPER | |
REF # | 1 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | KH500-A8 |
CAP ASSY,FUEL TANK | |
REF # | 2 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | H1-D/E/F |
CAP,FUEL TANK | |
REF # | 2-1 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | KH500-A8 |
GASKET-FUEL TANK CAP | |
REF # | 3 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN,TANK CAP | |
REF # | 4 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | H1-D/E/F |
SPRING-HOOK | |
REF # | 5 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | H1-D/E/F |
HOOK,FUEL TANK CAP | |
REF # | 6 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | H1-D/E/F |
PIN,TANK CAP FIT | |
REF # | 7 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS | H1-D/E/F |
BAND-FUEL TANK | |
REF # | 8 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE FUEL TANK CONECT | |
REF # | 9 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS | H1-D |
TUBE,4.5X9X380 | |
REF # | 9 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS | H1-E/F,KH500-A8 |
PIPE OIL TANK | |
REF # | 10 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | H1-D |
PIPE-FUEL | |
REF # | 10 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | H1-E/F,KH500-A8 |
CLAMP FUEL PIPE | |
REF # | 11 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
COCK ASSY,FUEL | |
REF # | 12 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT FUEL COCK JOINT | |
REF # | 13 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET FUEL COCK JONT | |
REF # | 14 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STRAINER FUEL | |
REF # | 15 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET FUEL COCK CUP | |
REF # | 16 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET FUEL COCK LEV | |
REF # | 17 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
"0" RING | |
REF # | 18 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DIAPHRAGM ASSY | |
REF # | 19 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING DIAPHRAGM | |
REF # | 20 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET | |
REF # | 21 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN,CAP HINGE | |
REF # | 22 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | KH500-A8 |
PIN,HOOK | |
REF # | 23 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | KH500-A8 |
