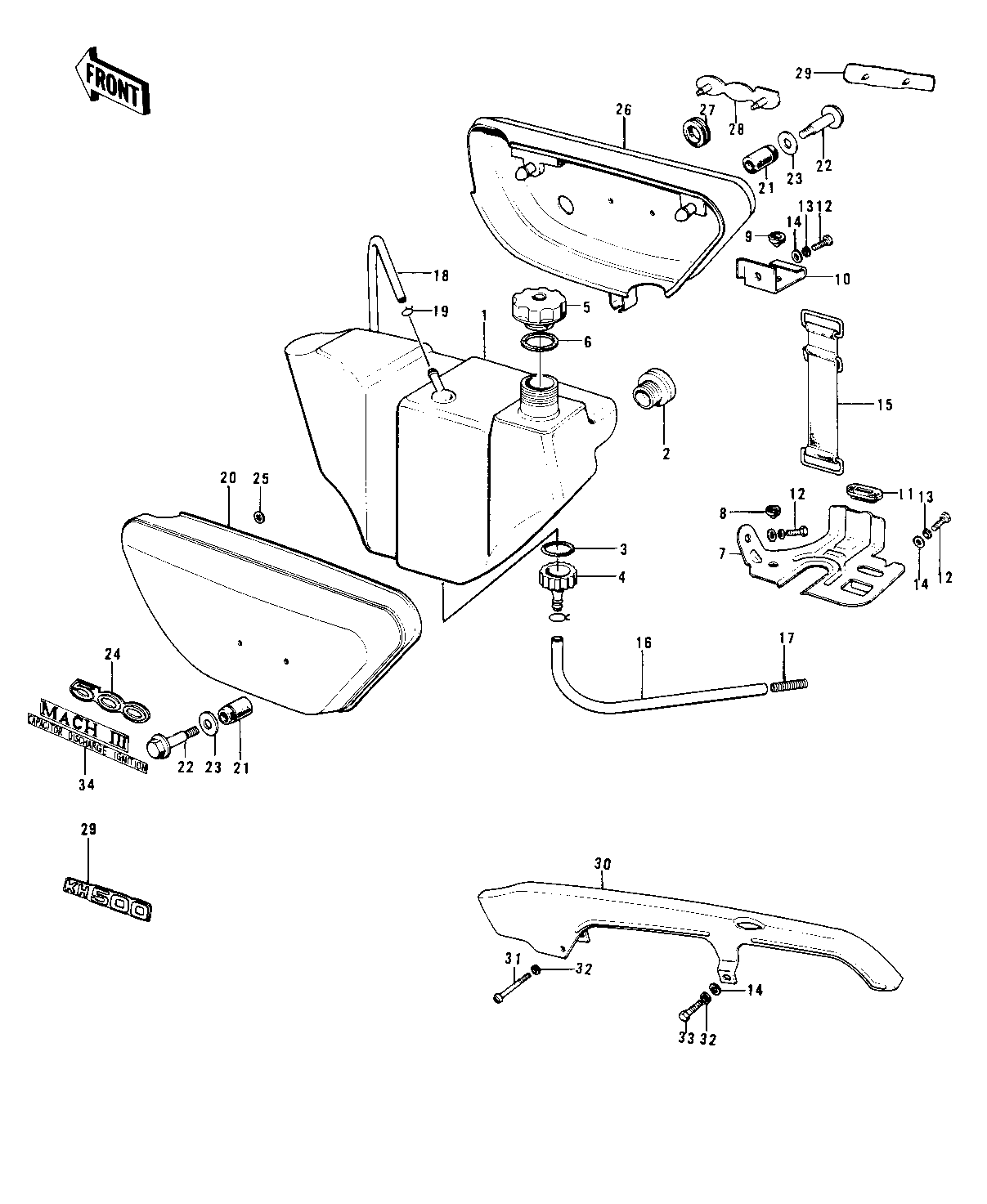

1975 H1-F - SIDE COVERS/OIL TANK/CHAIN COVER ('73-'7

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TANK,OIL 1 52001-034 1
GAUGE-OIL LEVEL 2 52015-005 1
"O" RING,15MM 3 670B2015 1
FILTER-OIL 4 52020-001 1
CAP-OIL TANK 5 52003-019 1
GASKET-OIL TANK CAP 6 92065-085 1
PLATE,1.0T 7 31101-002 1
DAMPER RUBBER,PLATE 8 92075-183 1
DAMPER RUBBER 9 92075-078 1
PLATE,1.6T 10 32101-008 1
DAMPER RUBBER 11 92075-166 1
BOLT-UPSET 6X14 12 112B0614 3
WASHER SPRING 6MM 13 461F0600 3
WASHER PLAIN 6MM 14 411B0600 4
BAND,OIL TANK 15 32100-017 1
PIPE,OIL 16 92059-082 1
SPRING PIPE CLAMP B 17 92081-027 1
TUBE-VINYL,5X600 18 700Q05600 1
CLAMP-PIPE 19 92037-072 2
COVER,L.H SIDE,C.LIME 20 36001-037-77 1 H1-D
COVER,L.H SIDE,C.RED 20 36001-037-1X 1 H1-E
COVER,L.H SIDE,LIME 20 36001-037-1Y 1 H1-E
COVER,L.H SIDE,BLUE 20 36001-037-2W 1 H1-F
COVER,L.H SIDE,GOLD 20 36001-037-2X 1 H1-F
COVER,L.H SIDE D.BURG 20 36001-037-3T 1 KH500-A8
COVER,L.H SIDE,COPPER 20 36001-037-3U 1 KH500-A8
DAMPER RUBBER,SID COV 21 92075-184 2
BOLT,SIDE COVER FITT 22 92007-034 2
WASHER PLAIN 8MM 23 411B0800 2
EMBLEM,L.H SIDE COVER 24 56018-146 1 H1-D/E
EMBLEM,L.H SIDE COVER 24 56018-195 1 H1-F
NUT,LOCK,5MM 25 92018-004 4
COVER,RH SIDE,C.LIME 26 36007-032-77 1 H1-D
COVER,RH SIDE,C.RED 26 36007-032-1X 1 H1-E
COVER,RH SIDE,LIME 26 36007-032-1Y 1 H1-E
COVER,RH SIDE,BLUE 26 36007-032-2W 1 H1-F
COVER,RH SIDE,GOLD 26 36007-032-2X 1 H1-F
COVER,RH SIDE,D.BURG 26 36007-032-3T 1 KH500-A8
COVER,RH SIDE,COPPER 26 36007-032-3U 1 KH500-A8
GROMMET-R.H SIDE COV 27 92071-065 1
EMBLEM,R.H SIDE COVER 28 56018-147 1 H1-D/E
EMBLEM,R.H SIDE COVER 28 56018-196 1 H1-F
EMBLEM,SIDE COVER 29 56018-213 2 KH500-A8
CASE-CHAIN,FR BLACK 30 36014-046-21 1 H1-D
CASE-CHAIN 30 36014-053 1 H1-E/F,KH500
SCREW PAN HEAD 6X50 31 220E0650 1
WASHER SPRING 6MM 32 461F0600 2
BOLT,HEX HEAD,6X14 33 92001-121 1
DECAL,SIDE COVER 34 56027-145-SP 2 H1-D
DECAL,SIDE COVER 34 56027-197-SP 2 H1-E
DECAL,SIDE COVER 34 56027-198-SP 2 H1-E
