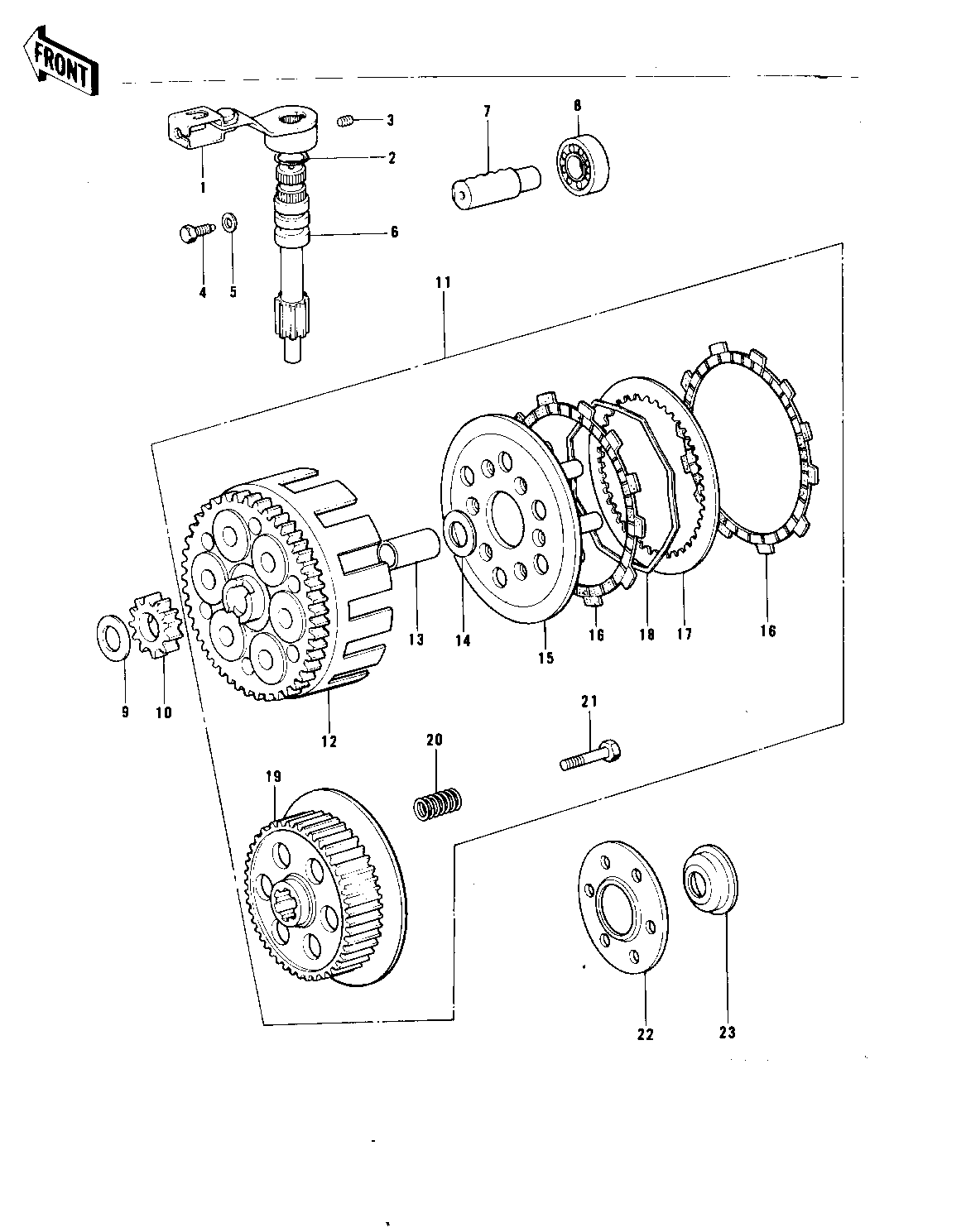

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LEVER,CLUTCH RELEASE | 1 | 13102-024 | 1 | ||
| "0" RING, 10MM | 2 | 670B2010 | 1 | ||
| SCREW,CLUTCH RELEASE | 3 | 92013-005 | 1 | ||
| BOLT,CLUTCH RELEASE | 4 | 92003-130 | 1 | ||
| GASKET,R.H ENG COVER | 5 | 92065-092 | 1 | ||
| SHAFT,CLUTCH RELEASE | 6 | 13106-009 | 1 | ||
| ROD,CLUTCH PUSH | 7 | 13116-025 | 1 | ||
| BEARING,BALL #627 | 8 | 92045-026 | 1 | ||
| WASHER,CLUTCH | 9 | 92022-031 | 1 | ||
| PINION,KICK GEAR 16T | 10 | 13075-011 | 1 | 16T | |
| CLUTCH-ASSY | 11 | 13081-076 | 1 | ||
| HOUSING,CLUTCH | 12 | 13095-047 | 1 | ||
| BUSHING,CLUTCH | 13 | 92028-173 | 1 | ||
| WASHER,CLUTCH THRUST | 14 | 92022-282 | 1 | ||
| WHEEL,CLUTCH | 15 | 13086-017 | 1 | ||
| PLATE-FRICTION | 16 | 13088-1015 | 5 | ||
| PLATE CLUTCH STEEL | 17 | 13089-003 | 4 | ||
| RING-CLUTCH STEEL | 18 | 13229-002 | 5 | ||
| HUB,CLUTCH | 19 | 13087-041 | 1 | ||
| SPRING,CLUTCH | 20 | 92081-123 | 6 | ||
| BOLT,5X18 | 21 | 92003-078 | 6 | ||
| HOLDER,CLUTCH | 22 | 13091-015 | 1 | ||
| PUSHER,CLUTCH RELEASE | 23 | 13114-008 | 1 |
