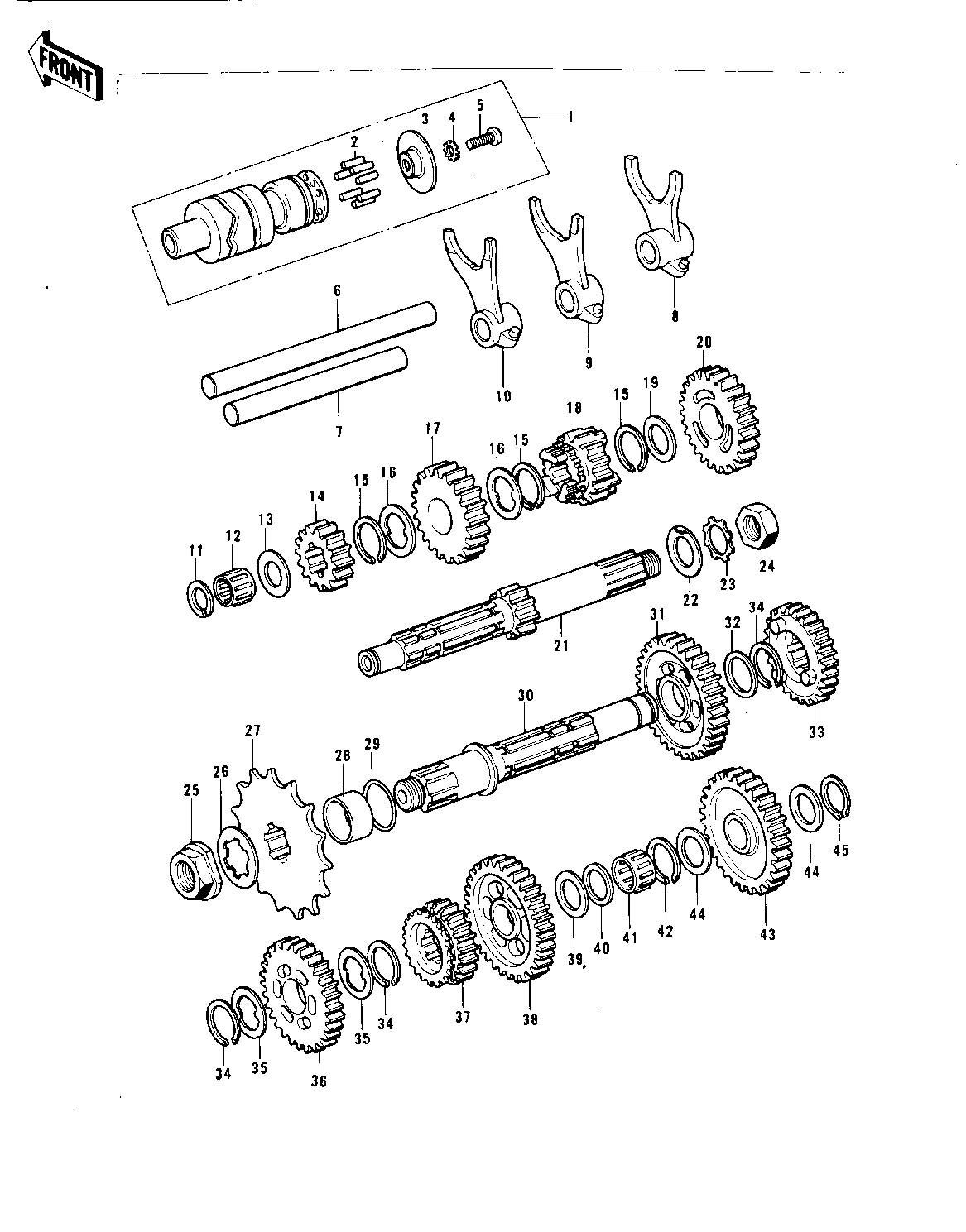

1975 KT250-A - TRANSMISSION/CHANGE DRUM

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DRUM ASSY-CHANGE 1 13239-016 1
PIN,CHANG DRUM 2 92042-029 6
HOLDER,CHANGE DRUM 3 13142-014 1
WASHER LOCK 6MM 4 464H0600 1
SCREW PAN HEAD 6X14 5 220B0614 1
ROD,SHIFT 93.7M/M 6 49047-1003 1
ROD,SHIFT 71.7M/M 7 49047-1002 1
FORK,SELECTOR,LOW 8 13140-061 1
FORK,SELECTOR,2ND&3RD 9 13140-062 1
FORK,SELECTOR,4TH&TOP 10 13140-063 1
CIRCLIP,DRIVE SHAFT 11 92033-030 1
BEARING,BALL 12 92046-038 1 KT152016
WASHER,THRUST,15MM 13 92022-279 1 1.0T
2ND GEAR,DRIVE 15T 14 13130-040 1 15T
CIRCLIP,18MM 15 92033-029 3
WASHER,LOCK 16 92024-059 2 O.D=25#
4TH GEAR,DRIVE 23T 17 13134-022 1 23T
3RD GEAR 18 13132-042 1 18T
WASHER 19 92022-252 1
TOP GEAR 20 13136-055 1 28T
SHAFT,DRIVE 12T 21 13127-050 1 12T
WASHER,16.8X32X1.6 22 92022-1277 1
WASHER,LOCK,16MM 23 464H1600 1
NUT,LOCK,16MM 24 92015-072 1
NUT,18MM 25 92015-075 1
WASHER,LOCK 26 92024-065 1
ENGINE SPROCKET,15T 27 13144-064 1 STD
ENGINE SPROCKET 14T 27 13144-059 1 OPT
ENGINE SPROCKET,13T 27 13144-067 1 OPT
COLLAR,ENGINE SPROCKT 28 92027-236 1
"O" RING 29 92055-035 1
SHAFT,OUTPUT 30 13128-043 1
2ND GEAR,OUTPUT 37T 31 13131-047 1 37T
WASHER-PLAIN 32 92022-198 1 I.D=22.3#
4TH GEAR,OUTPUT 28T 33 13135-028 1 28T
CIRCLIP,25MM 34 92033-025 3
WASHER-LOCK 35 92024-039 2
3RD GEAR,OUTPUT.33T 36 13133-039 1 33T
TOP GEAR,OUTPUT 22T 37 13137-033 1 22T
LOW GEAR,OUTPUT 39T 38 13129-055 1 39T
WASHER,PLAIN 39 92022-280 1
WASHER,PLAIN 40 92022-281 1
BEARING-NEEDLE 41 92046-1184 1 KT172314
CIRCLIP,16MM 42 92033-032 1
IDLE GEAR 28T 43 13073-012 1 28T
WASHER-THRUST 44 92022-197 2
CIRCLIP 16MM 45 480J1600 1
