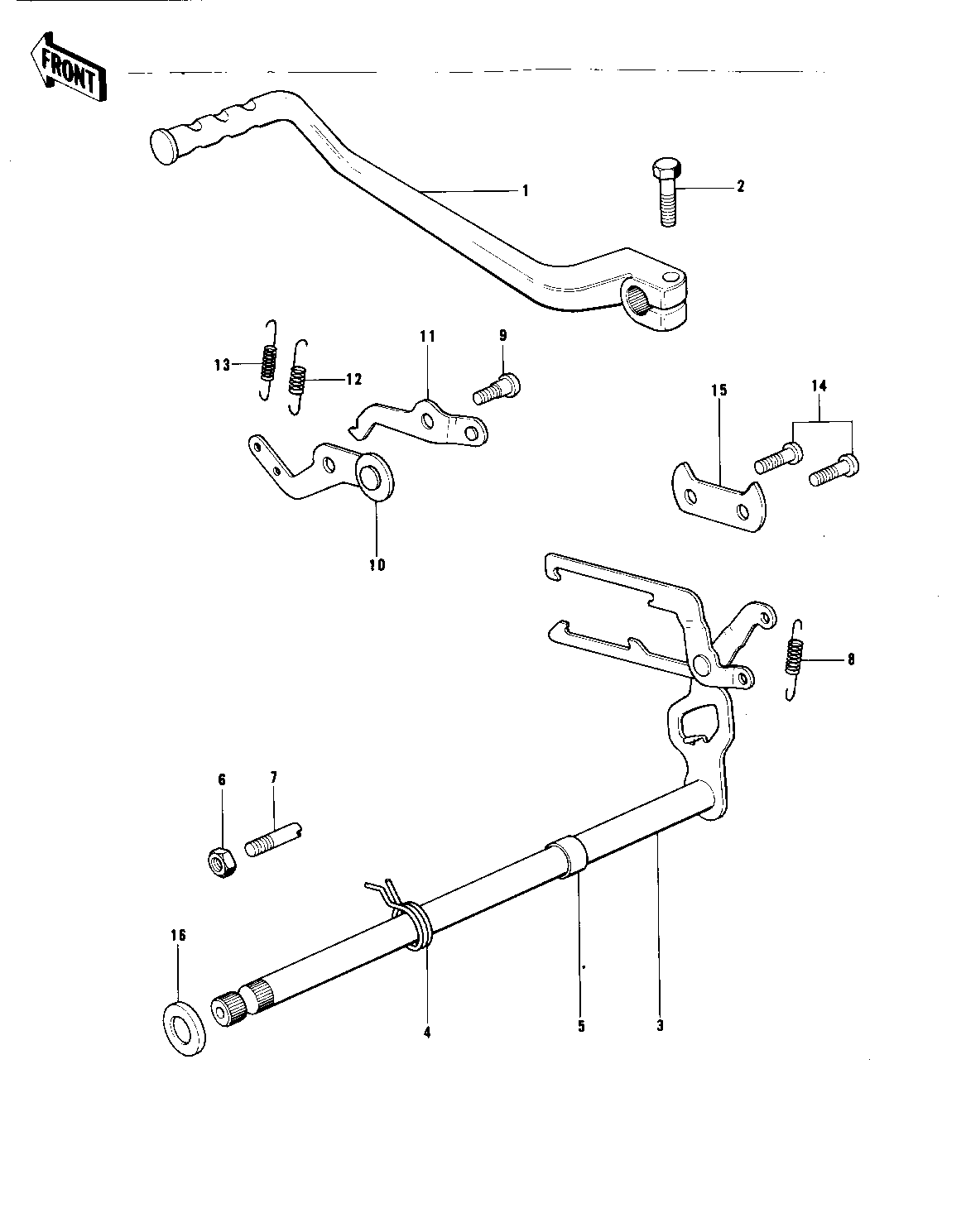

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PEDAL,GEAR CHANGE 1 13156-062 1
BOLT-UPSET,6X20 2 112G0620 1
BOLT-UPSET,6X20 2 112G0620 AL
LEVER ASSY,GEAR CHANG 3 13161-033 1
SPRING,TENTION 4 92081-1129 1
COLLAR 5 92027-189 1
NUT 8MM 6 312B0800 1
BOLT,RETURN SPRING 7 92001-1401 1
SPRING-CHANGE LEVER 8 92081-076 1
SCREW-PAN HEAD 9 92011-023 1
LEVER ASSY,GEAR CHANG 10 13236-006 1
LEVER ASSY,GEAR CHANG 11 13236-007 1
SPRING-COIL 12 92081-091 1
SPRING 13 92081-119 1
SCREW PAN HEAD 6X14 14 220B0614 2
PLATE,CHANGE DRUM 15 13169-012 1
SPACER,CHANGE SHAFT 16 92026-107 1 NOT REQUIRED FOR KT260-A2 MODE
