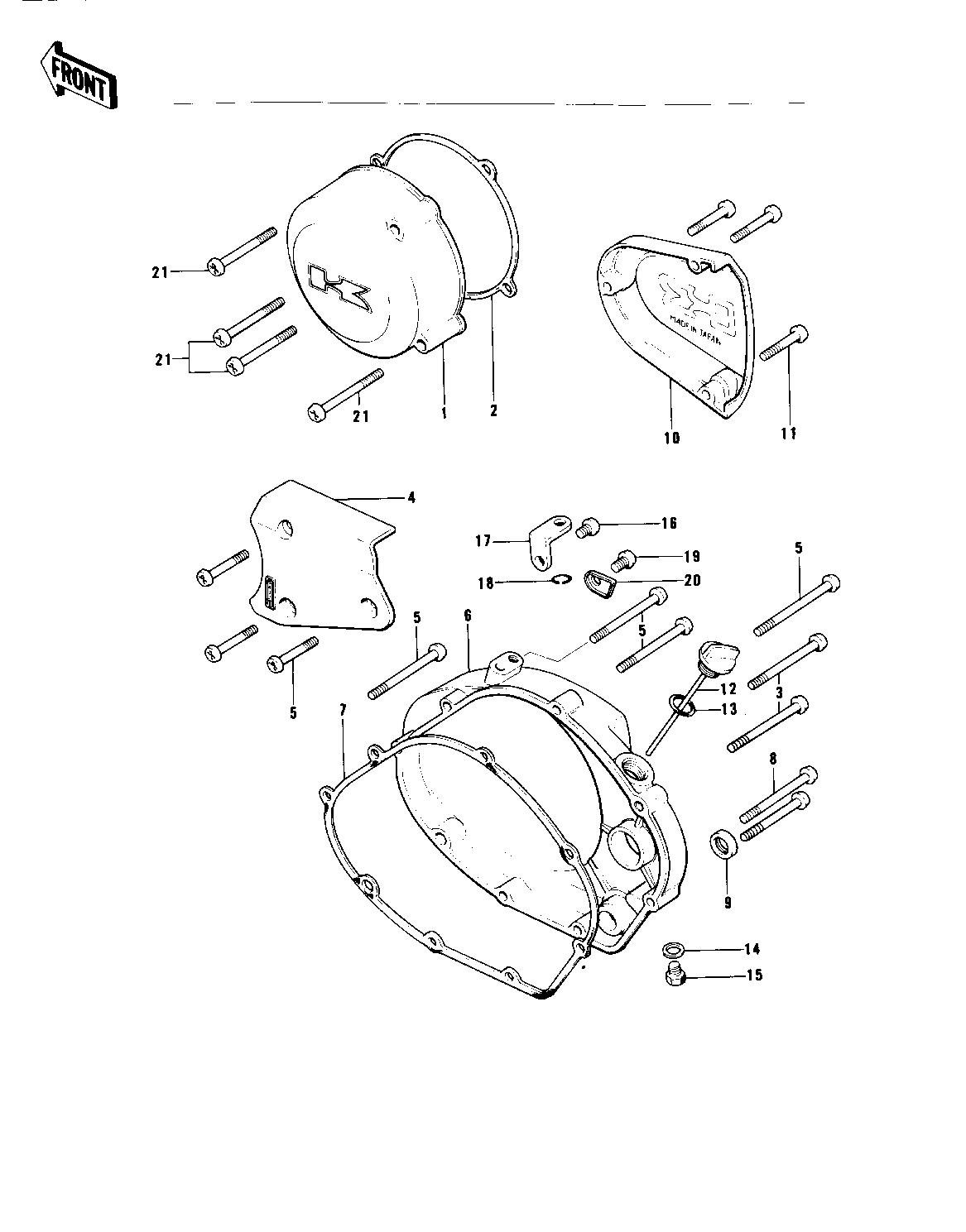

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
COVER,L.H ENGINE,BUFF | 1 | 14031-088-80 | 1 | ||
GASKET,L.H ENG COVER | 2 | 14045-023 | 1 | ||
SCREW PAN HEAD 6X50 | 3 | 220B0650 | 2 | ||
COVER,CHAIN CASE,BUFF | 4 | 14026-030-80 | 1 | ||
SCREW PAN HEAD 6X40 | 5 | 220B0640 | 7 | ||
COVER,R.H ENGINE,BUFF | 6 | 14032-113-80 | 1 | ||
GASKET,R.H ENG COVER | 7 | 14046-030 | 1 | ||
SCREW PAN HEAD 6X30 | 8 | 220B0630 | 2 | ||
OIL SEAL SB20285 | 9 | 92049-012 | 1 | ||
COVER,OIL PUMP,BUFF | 10 | 14030-064-80 | 1 | ||
SCREW PAN HEAD 6X20 | 11 | 220B0620 | 3 | ||
PLUG-OIL FILLER | 12 | 16115-017 | 1 | ||
"0" RING,20MM | 13 | 670B2020 | 1 | ||
GASKET CHECK VALVE | 14 | 92065-058 | 1 | ||
PLUG OIL DRAIN | 15 | 92067-001 | 1 | ||
SCREW PAN HEAD 6X20 | 16 | 220B0620 | 1 | ||
HOLDER-OIL PUMP CABLE | 17 | 14044-005 | 1 | ||
CIRCLIP SELD BEM FIT | 18 | 482K4000 | 1 | ||
SCREW PAN HEAD 6X10 | 19 | 220B0610 | 1 | ||
CLAMP,OIL PUMP CABLE | 20 | 92037-156 | 1 | ||
SCREW 6X55 | 21 | 220B0655 | 4 |
