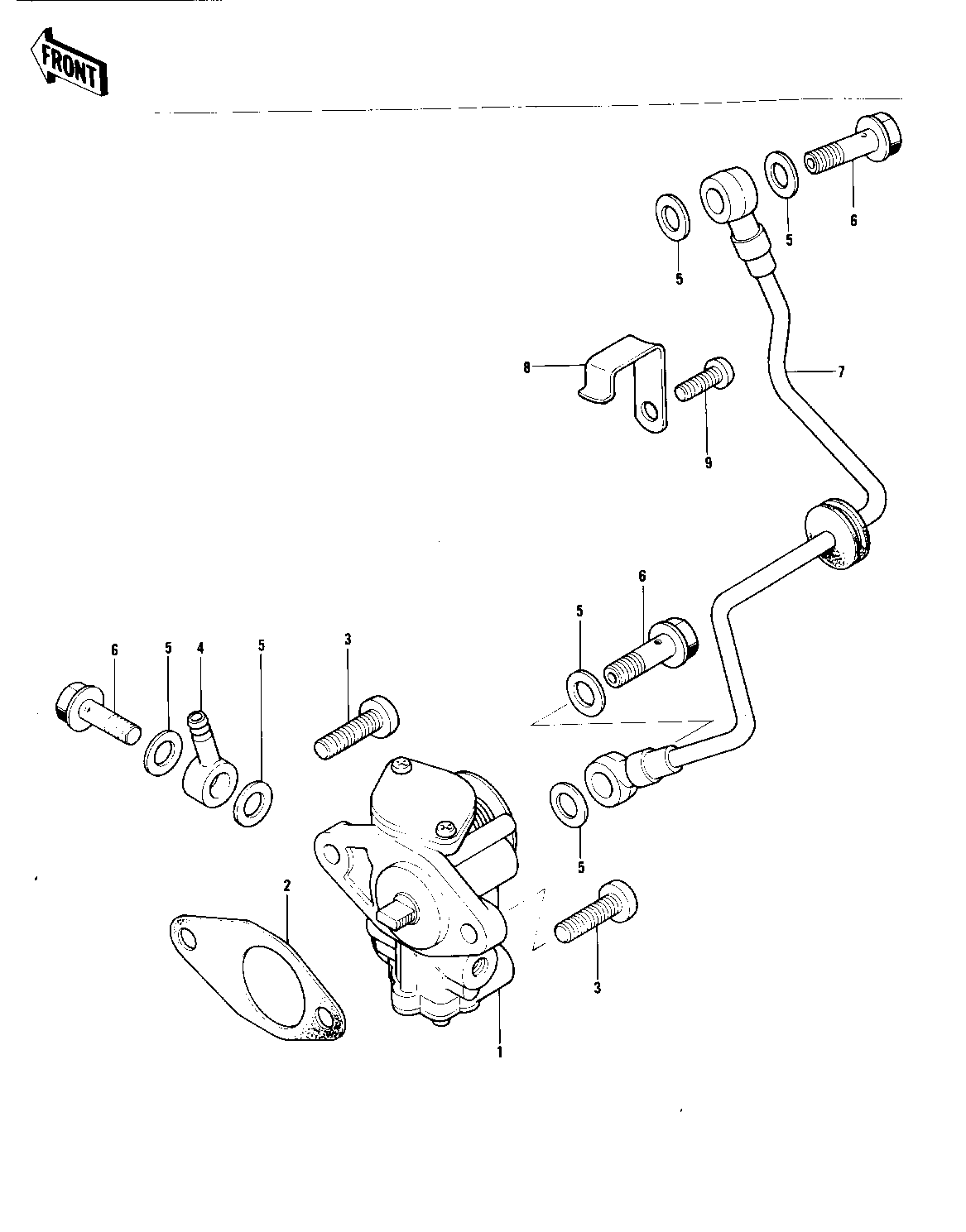

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
OIL PUMP ASSY 1 16082-058 1
GASKET,OIL PUMP 2 16094-008 1
UNAVAILABLE IN PRICE BOOK 3 214B0516A 2
CONNECTOR BANJO 4 92061-009 1
WASHER OIL PUMP BANJO 5 92022-077 6
BOLT-BANJO,6MM 6 92060-013 3
PIPE,OIL 7 16134-027 1
CLAMP,OIL PIPE 8 92037-157 1
SCREW PAN HEAD 6X14 9 220B0614 1
