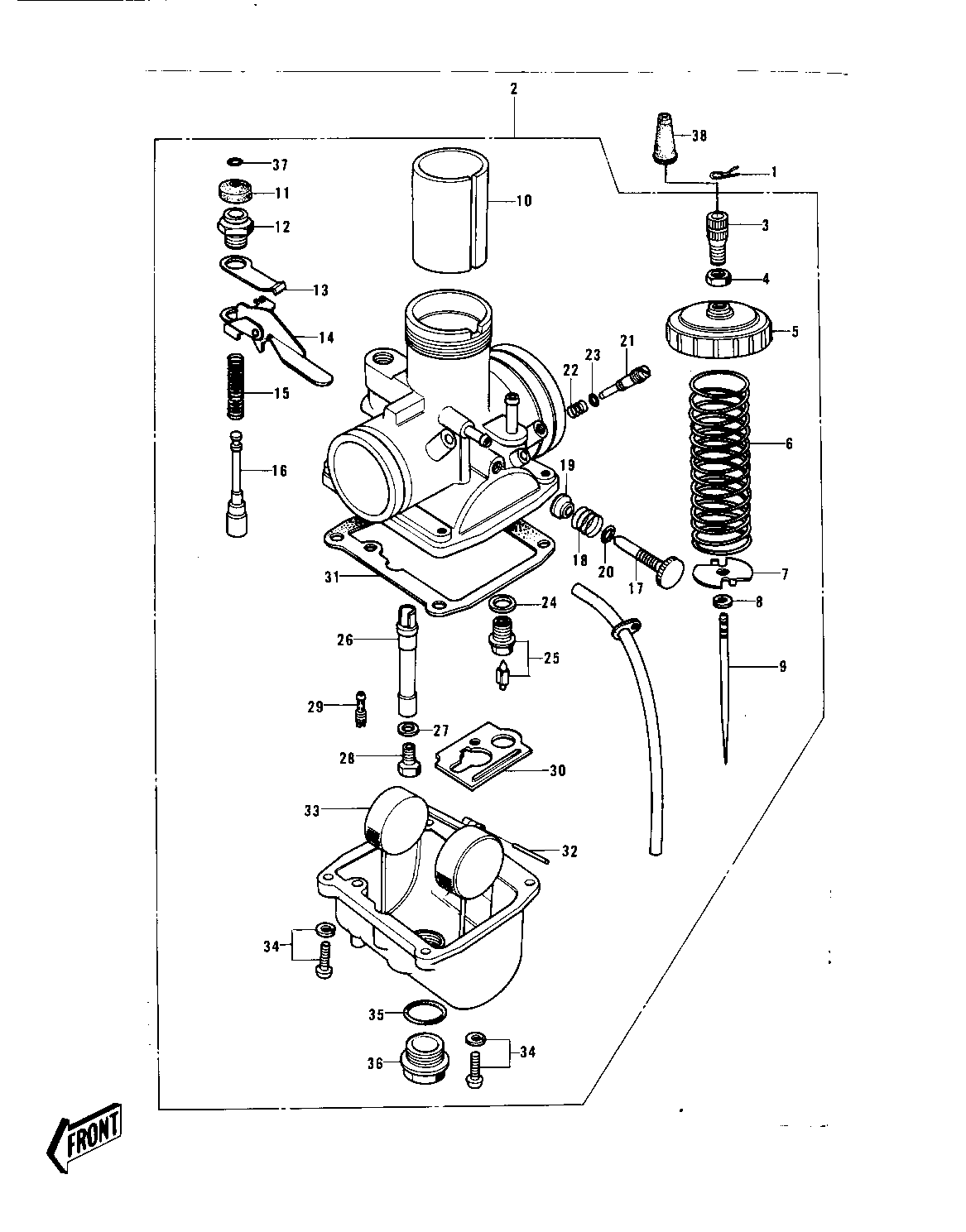

1975 KT250-A - CARBURETOR

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CIRCLIP 1 92036-018 1
CARBURETOR ASSY 2 16001-250 1
ADJUSTER,CABLE 3 16002-014 1
NUT-CABLE ADJUST LOCK 4 16003-006 1
CAP-MIXING CHAMBER 5 16004-018 1
SPRING,THROTTLE VALV 6 16006-024 1
SEAT,THROTTLE VALVE 7 16007-026 1
CIRCLIP 8 16008-010 1
JET NEEDLE 5D1 9 16009-066 1
VALVE,THROTTLE CA210 10 16025-076 1
CAP,STARTER PLUNGER 11 16036-012 1
CAP,STARTER PLUNGER 12 16012-019 1
SPRING,STATER LEVER 13 16013-009 1
LEVER,STARTER PLUNGER 14 16063-004 1
SPRING,STARTER PLUG 15 16013-008 1
PLUNGER 16 16016-011 1
SCREW,THROTTLE ADJUST 17 16021-026 1
SPRING,THROTTLE ADJST 18 16022-013 1
CAP,ADJUSTER SPRING 19 16045-003 1
"O" RING,4MM 20 670B1504 1
SCREW,PILOT AIR 21 16014-015 1
SPRING-THR STOP SCREW 22 16022-007 1
"O" RING,3MM 23 670B1503 1
WASHER FLOAT VLV SEAT 24 16029-004 1
FLOAT VALVE ASSY 25 16030-024 1
NEEDLE JET 0-8 26 16017-087 1
WASHER MAIN JET 27 16034-001 1
MAIN JET NO 85R 28 92063-093 1 STD
MAIN JET, #A80 28 92063-1030 1 OPT
MAIN JET NO 82.5R 28 92063-124 1 OPT
MAIN JET NO 87.5R 28 92063-094 1 OPT
MAIN JET,#A90R 28 92063-1029 1 OPT
JET-PILOT NO 30 29 92064-022 1
PLATE,FLOAT CHAMBER 30 16038-018 1
GASKET,FLOAT CHAMBER 31 16019-027 1
FLOAT PIN 32 16032-003 1
FLOAT 33 16031-010 1
SCREW FLOAT CHAMBER 34 16033-009 4
"0" RING,18MM 35 670B2018 1
COVER,MAIN JET 36 16049-006 1
"0" RING,STATER PLUNG 37 16088-003 1
CAP-CABLE ADJUSTER 38 16036-008 1
