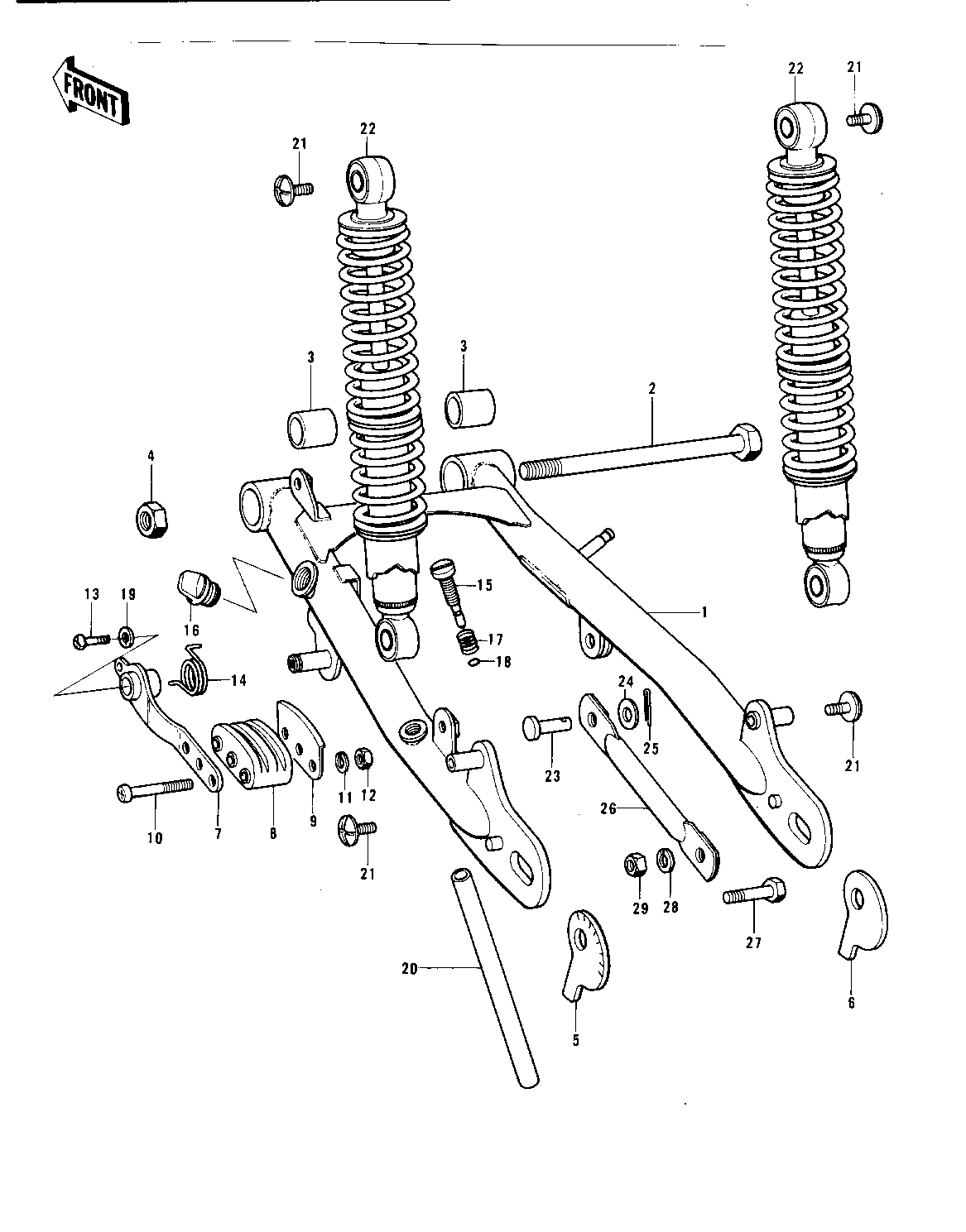

1975 KT250-A - SWING ARM/SHOCK ABSORBERS
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| ARM,SWINGING | 1 | 33001-077 | 1 | ||
| SHAFT,SWING ARM PIVOT | 2 | 33032-042 | 1 | ||
| BUSH SWING ARM SHAFT | 3 | 92092-005 | 2 | ||
| NUT-LOCK,12MM | 4 | 92019-009 | 1 | ||
| ADJUSTER,L.H CHAIN | 5 | 33040-064 | 1 | ||
| ADJUSTER,R.H CHAIN | 6 | 33040-065 | 1 | ||
| TENSIONER,CHAIN | 7 | 12049-002 | 1 | ||
| SLIPPER,CHAIN TENSION | 8 | 12053-012 | 1 | ||
| BRACKET,CHAIN TENSION | 9 | 12051-002 | 1 | ||
| SCREW PAN HEAD 6X40 | 10 | 220B0640 | 3 | ||
| WASHER SPRING 6MM | 11 | 461F0600 | 3 | ||
| NUT 6MM | 12 | 311B0600 | 3 | ||
| SCREW PAN HEAD 6X12 | 13 | 220B0612 | 1 | ||
| SPRING,RETURN | 14 | 58024-003 | 1 | ||
| BOLT,CHAIN OILER | 15 | 92003-176 | 1 | ||
| PLUG,OIL FILLER | 16 | 16115-026 | 1 | ||
| SPRING,CHAIN TENSION | 17 | 55033-002 | 1 | ||
| "O" RING,3MM | 18 | 670B1503 | 1 | ||
| WASHER 6.5X20X1.6T | 19 | 92022-125 | 1 | ||
| TUBE,CHAIN OILER | 20 | 92059-116 | 1 | L=40M/M | |
| BOLT,6X12 | 21 | 92003-173 | 4 | ||
| SHOCK ABSBR RR | 22 | 45014-103 | 2 | ||
| PIN,TORQUE LINK | 23 | 92043-105 | 1 | ||
| WASHER,PLAIN | 24 | 92022-239 | 1 | ||
| PIN COTTER 2.0X20 | 25 | 550D2020 | 1 | ||
| TORQUE LINK,RR BRAKE | 26 | 43007-043 | 1 | ||
| BOLT HEX HEAD 10X25 | 27 | 92003-003 | 1 | ||
| WASHER SPRING 10MM | 28 | 461F1000 | 1 | ||
| NUT,10MM | 29 | 314B1000 | 1 |
