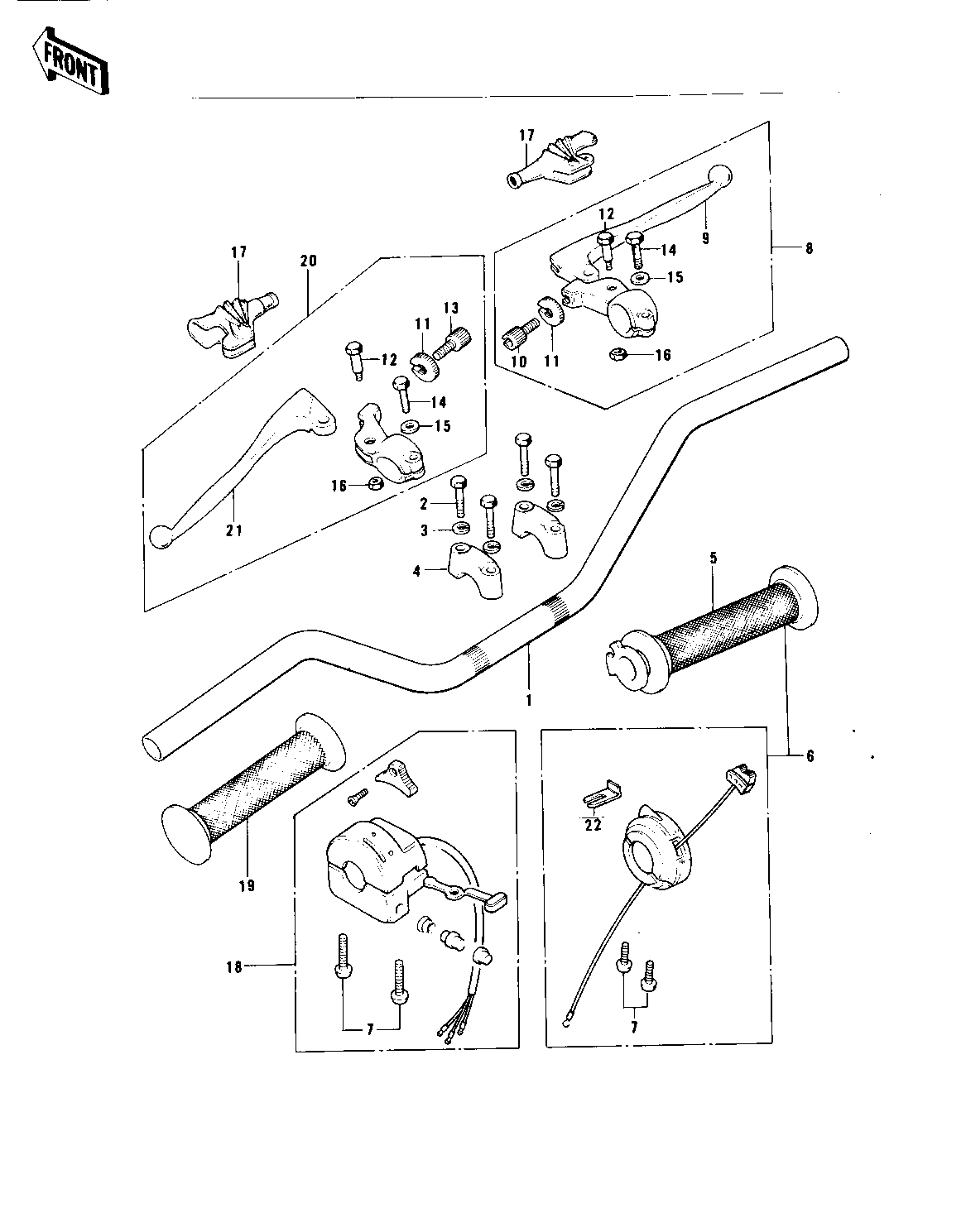

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
HANDLEBAR | 1 | 46004-031 | 1 | ||
BOLT 8X38 | 2 | 92001-1405 | 4 | ||
WASHER SPRING 8MM | 3 | 461F0800 | 4 | ||
HOLDER UPPER HANDLBAR | 4 | 46012-004 | 2 | ||
GRIP ASSY,THROTTLE | 5 | 46019-036 | 1 | ||
CASE ASSY,R.H | 6 | 46018-042 | 1 | ||
SCREW-PAN-CROS,5X25 | 7 | 220B0525 | 2 | ||
LEVER ASSY,FRNT BRAKE | 8 | 46021-030 | 1 | ||
LEVER FRONT BRAKE | 9 | 46058-004 | 1 | ||
SCREW,CABLE ADJUST | 10 | 46055-010 | 1 | D=7 | |
NUT-LOCK | 11 | 46056-005 | 2 | ||
BOLT,HEX HEAD,5X22 | 12 | 92007-046 | 2 | ||
SCREW CABLE ADJUST | 13 | 46055-003 | 1 | D=8 | |
BOLT HEX HEAD 6X25 | 14 | 110N0625 | 2 | ||
WASHER PLAIN 6MM | 15 | 410B0600 | 2 | ||
NUT-LOCK,5MM | 16 | 92019-014 | 2 | ||
BOOTS,LEVER HOLDER | 17 | 49006-1017 | 2 | ||
CASE ASSY,L.H | 18 | 46091-046 | 1 | ||
RUBBER,L.H GRIP | 19 | 46075-026 | 1 | ||
LEVER ASSY,CLUTCH | 20 | 46076-046 | 1 | ||
LEVER-CLUTCH | 21 | 46092-015 | 1 | ||
HOLDER,CONTROL CABLE | 22 | 46037-023 | 1 |
