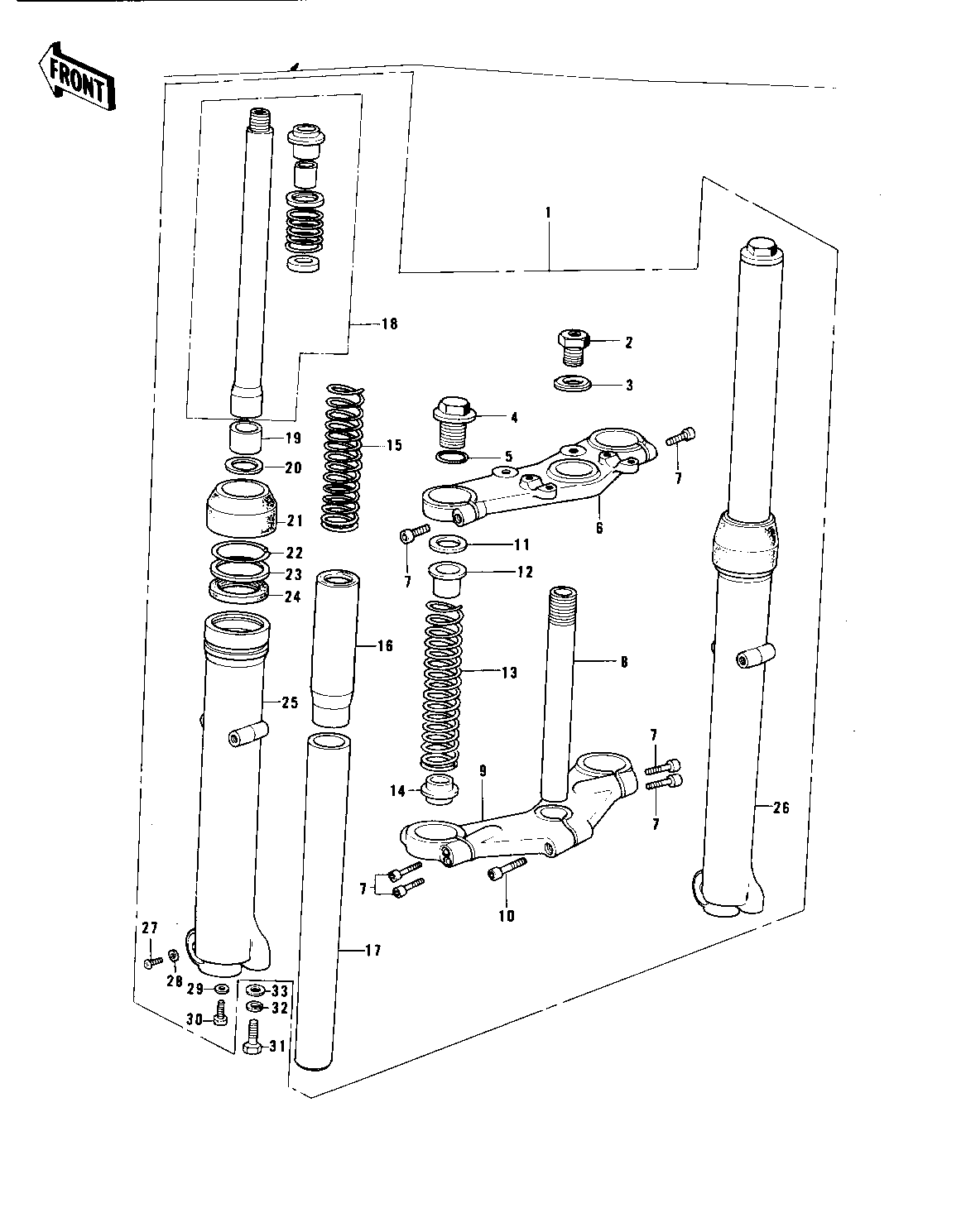

1975 KT250-A - FRONT FORK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FORK-FRONT 1 44001-157 1
BOLT,FORK TOP 2 44041-065 1
WASHER 3 44043-052 1
BOLT,FORK TOP 4 44041-080 2
'O' RING FORK TOP 5 44046-015 2
HEAD,STEERING STEM 6 44039-067 1
BOLT 7 44041-061 6
SHAFT,STEERING STEM 8 44052-010 1
STEM,STEERING 9 44038-009 1
BOLT-STEERING STEM 10 44041-043 1
SPACER,FORK SPRING 12 44028-035 2
SPRING,FORK INNER UPP 13 44026-065 2
GUIDE,FORK SPRING 14 44028-037 2
SPRING,FORK INNER LOW 15 44026-064 2
SPACER,FORK SPRING 16 44028-036 2
TUBE,FORK INNER 17 44013-050 2
CYLINDER-FORK 18 44022-025 2
PISTON,FORK 19 44018-009 2
CIRCLIP,FORK PISTON 20 44044-019 2
DUST SHIELD,FORK 21 44010-031 2
CIRCLIP OIL SEAL FIT 22 44044-005 2
WASHER OIL SEAL FIT 23 44043-023 2
OIL SEAL 24 44009-026 2
TUBE,LH,FORK OUTER 25 44005-059 1
TUBE,RH,FORK OUTER 26 44006-057 1
SCREW 27 44041-062 2
GASKET 28 44045-045 2
GASKET,FORK CYLINDER 29 44045-057 2
BOLT-FORK CYLINDER 30 44041-040 2
BOLT,12X32 31 113N1232A 1
WASHER SPRING 12MM 32 461F1200 1
WASHER PLAIN 12MM 33 410B1200 1
