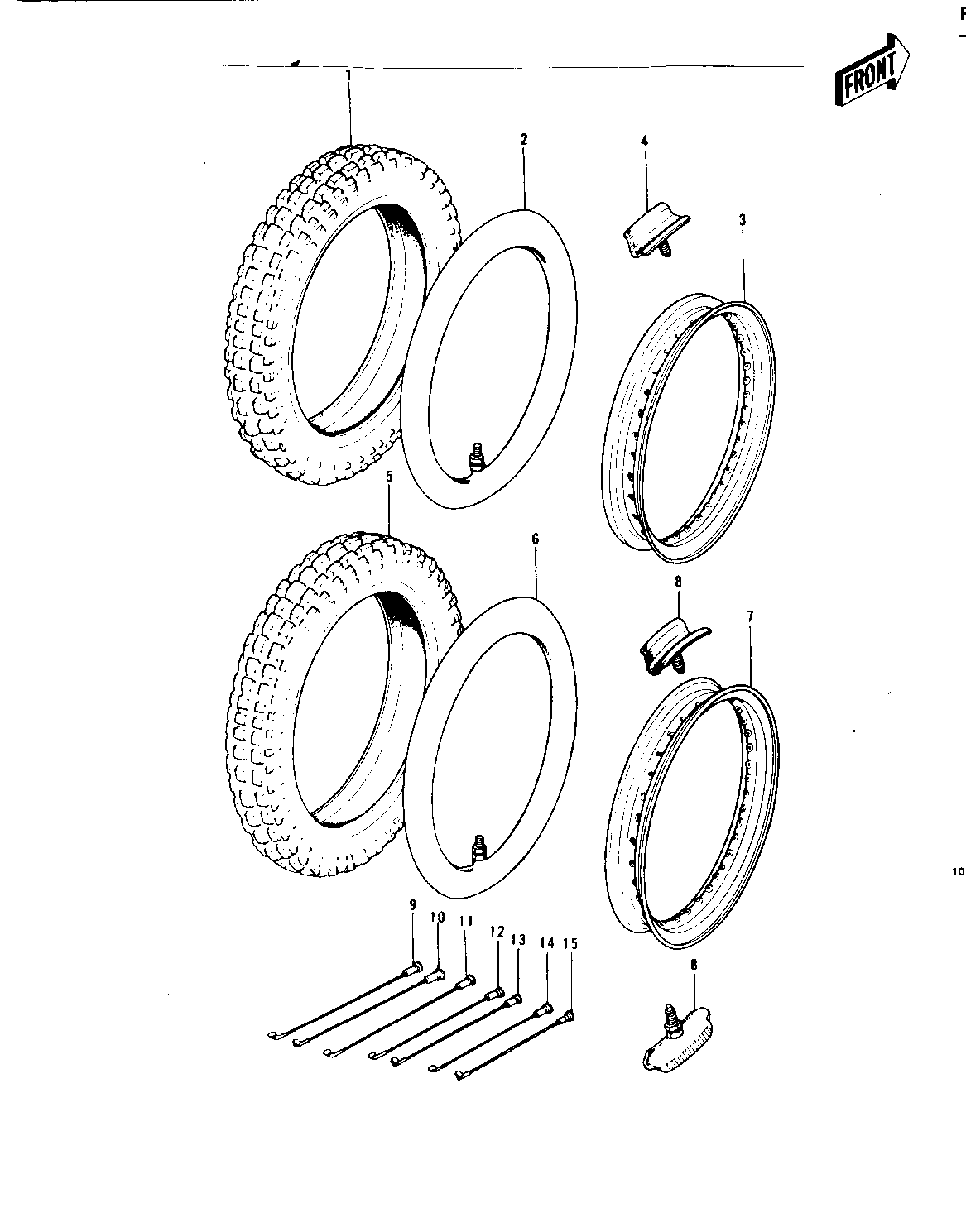

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| *** N.L.A.*** (Canada) | 1 | 41021-032 | 1 | ||
| TIRE 275-21 TRIALS F | 1 | 41021-046 | 1 | KT250A-2 | |
| TUBE,2.75/3.70-21 | 2 | 41022-1021 | 1 | ||
| RIM,1.60AX21E | 3 | 41025-076 | 1 | ||
| PROTECTOR,BEAD 1.60A | 4 | 41024-010 | 1 | ||
| *** N.L.A.*** (Canada) | 5 | 41021-033 | 1 | ||
| TIRE 400-18 TRIALS R | 5 | 41021-047 | 1 | KT250A-2 | |
| TUBE 350/375/410-18 | 6 | 41022-031 | 1 | ||
| RIM,1.85X18E | 7 | 41025-080 | 1 | ||
| PROTECTOR,BEAD,1.85B | 8 | 41024-011 | 2 | ||
| SPOKE-ASY,FR INNER | 9 | 41027-068 | 9 | ||
| SPOKE-ASY FR OUTER | 10 | 41028-068 | 9 | ||
| SPOKE-ASY,FR | 11 | 41027-069 | 18 | ||
| SPOKE-ASY,RR INNER | 12 | 41027-083 | 9 | ||
| SPOKE-ASY,RR INNER | 12 | 41027-083 | 9 | KT250A-2 | |
| SPOKE-ASY,RR OUTER | 13 | 41028-082 | 9 | ||
| SPOKE-ASY,RR OUTER | 13 | 41028-082 | 9 | KT250A-2 | |
| SPOKE-ASY,RR INNER | 14 | 41027-084 | 9 | ||
| SPOKE-ASY,RR INNER | 14 | 41027-084 | 9 | KT250A-2 | |
| SPOKE-ASY,RR OUTER | 15 | 41028-083 | 9 | ||
| SPOKE-ASY,RR OUTER | 15 | 41028-083 | 9 | KT250A-2 |
| *** N.L.A.*** (Canada) | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TIRE 275-21 TRIALS F | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KT250A-2 |
| TUBE,2.75/3.70-21 | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIM,1.60AX21E | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PROTECTOR,BEAD 1.60A | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| *** N.L.A.*** (Canada) | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TIRE 400-18 TRIALS R | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KT250A-2 |
| TUBE 350/375/410-18 | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIM,1.85X18E | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PROTECTOR,BEAD,1.85B | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SPOKE-ASY,FR INNER | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | |
| SPOKE-ASY FR OUTER | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | |
| SPOKE-ASY,FR | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 18 |
| DESTINATION | |
| REMARKS | |
| SPOKE-ASY,RR INNER | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | |
| SPOKE-ASY,RR INNER | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | KT250A-2 |
| SPOKE-ASY,RR OUTER | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | |
| SPOKE-ASY,RR OUTER | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | KT250A-2 |
| SPOKE-ASY,RR INNER | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | |
| SPOKE-ASY,RR INNER | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | KT250A-2 |
| SPOKE-ASY,RR OUTER | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | |
| SPOKE-ASY,RR OUTER | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | KT250A-2 |
